CR41V-ERSDS5 (1996)
Toyota Lite/Townace Noah,V
Production
Nov 1996
-
Dec 1998
Engine
2C
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9610-9812)ATM

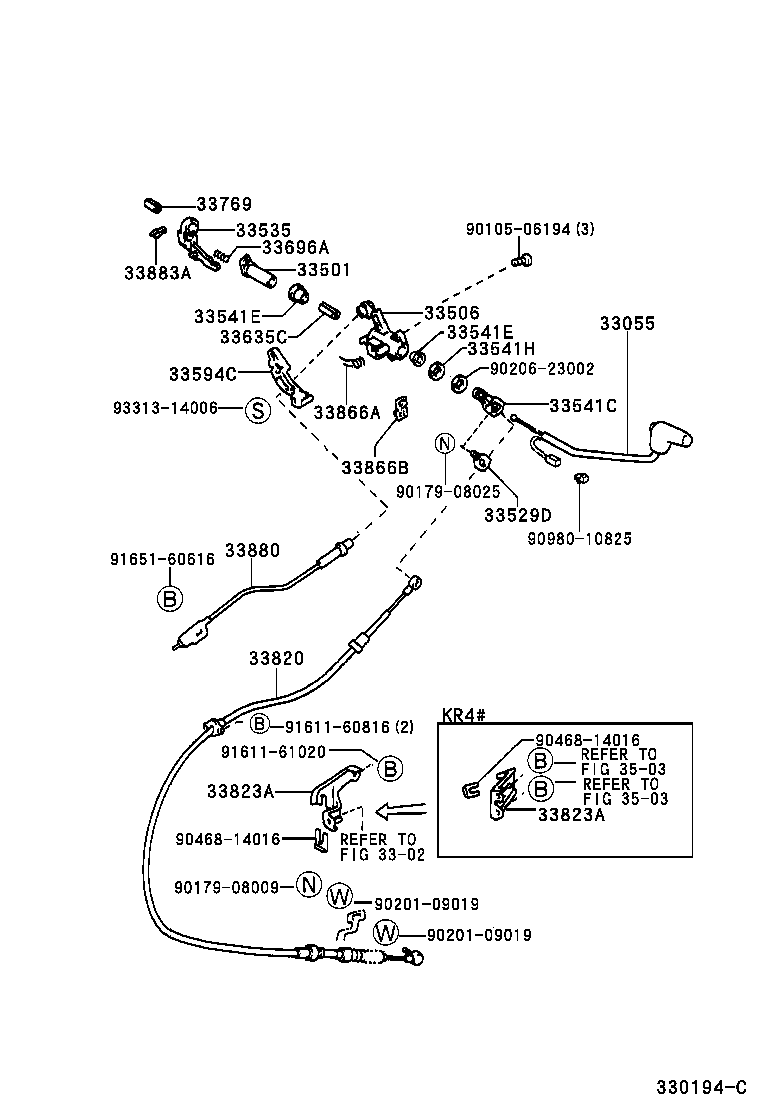

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-28200 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33511-28130 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF | ||||
| 33506-28200 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33529D - BOLT, SHIFT LEVER | ||||
| 33529-28100 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-28070 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33541C - LEVER, SHIFT (FOR COLUMN SHIFT) | ||||
| 33543-28060 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-22003 |
CR4#,5#,KR4#,SR40,50..ATM |
2 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-22003 |
CR4#,5#,KR4#,SR40,50..ATM |
2 | ||
| 33541H - SPACER (FOR COLUMN SHIFT) | ||||
| 90560-22003 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33594C - PLATE, SHIFT LOCK | ||||
| 33594-28020 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33635C - GUIDE, WIRE | ||||
| 33635-28050 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-09136 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33769 - SCREW, CONTROL ROD SET | ||||
| 33769-28010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-28300 |
CR41,51..ATM |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-28180 |
CR4#,5#,SR40,50..ATM |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-28180 |
CR4#,5#,SR40,50..ATM |
1 | ||
| 33866A - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-28010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33866B - FIXED CLAMP | ||||
| 82711-1A660 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) | ||||
| 33880-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33883A - HOLDER, CABLE END ROD | ||||
| 33883-28020 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| Common parts | ||||
| 90105-06194 | ||||
| 90179-08009 | ||||
| 90179-08025 | ||||
| 90201-09019 | ||||
| 90206-23002 | ||||
| 90468-14016 | ||||
| 90980-10825 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91651-60616 | ||||
| 93313-14006 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3503 | ||||
