CR41V-ERSDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)03S,05S,06S

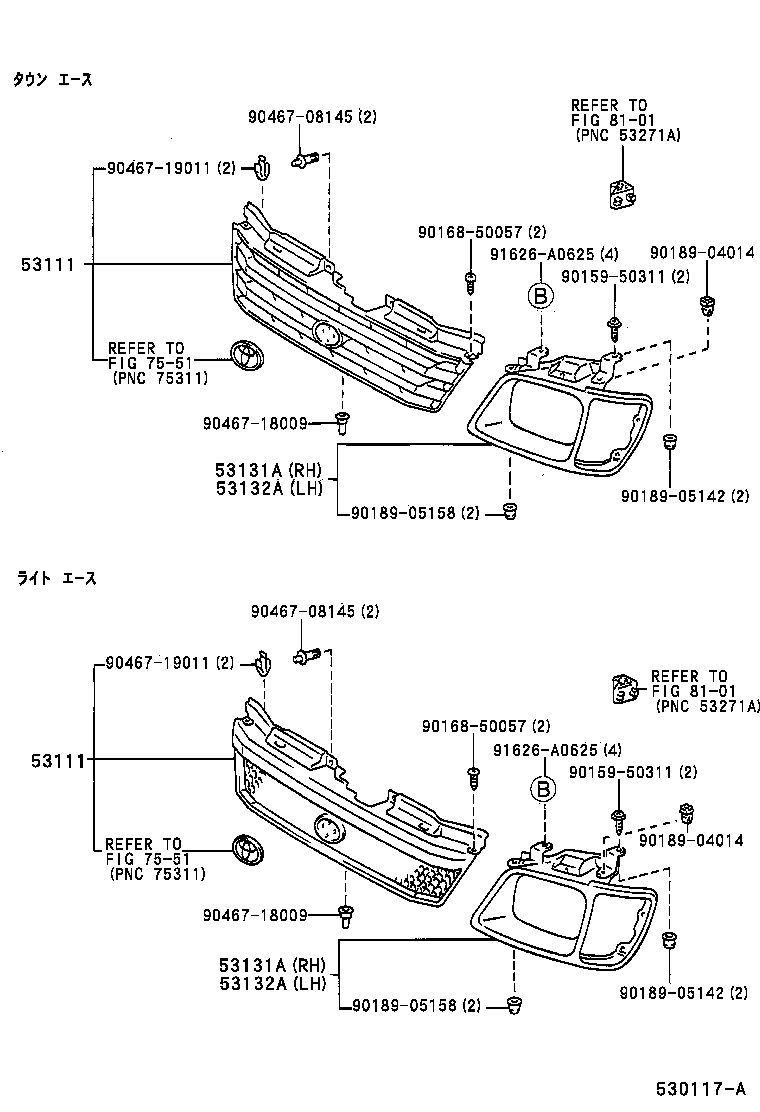

Click highlighted areas on diagram

diagram 53111 53111 53131A 53131A 53132A 53132A 7551 7551 8101 8101 9015950311 9015950311 9016850057 9016850057 9018904014 9018904014 9018905142 9018905142 9018905158 9018905158 9046708145 9046708145 9046718009 9046718009 9046719011 9046719011 91626A0625 91626A0625
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-28170

CR41,51,KR4#,SR40,50..03S,05S,06S

ﾀｳﾝｴ-ｽ

 1
53100-28180

CR41,51,KR4#,SR40,50..03S,05S,06S

ﾗｲﾄｴ-ｽ

 1
53111 - GRILLE, RADIATOR
53100-28170

CR41,51,KR4#,SR40,50..03S,05S,06S

ﾀｳﾝｴ-ｽ

 1
53100-28180

CR41,51,KR4#,SR40,50..03S,05S,06S

ﾗｲﾄｴ-ｽ

 1
53131A - DOOR, HEADLAMP, RH
53131-28030

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
53131A - DOOR, HEADLAMP, RH
53131-28030

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
53132A - DOOR, HEADLAMP, LH
53132-28030

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
53132A - DOOR, HEADLAMP, LH
53132-28030

CR41,51,KR4#,SR40,50..03S,05S,06S

 1
Common parts
90159-50311
90168-50057
90189-04014
90189-05142
90189-05158
90467-08145
90467-18009
90467-19011
91626-A0625
Linked diagrams
7551
8101
