CR41V-ERMDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)2C

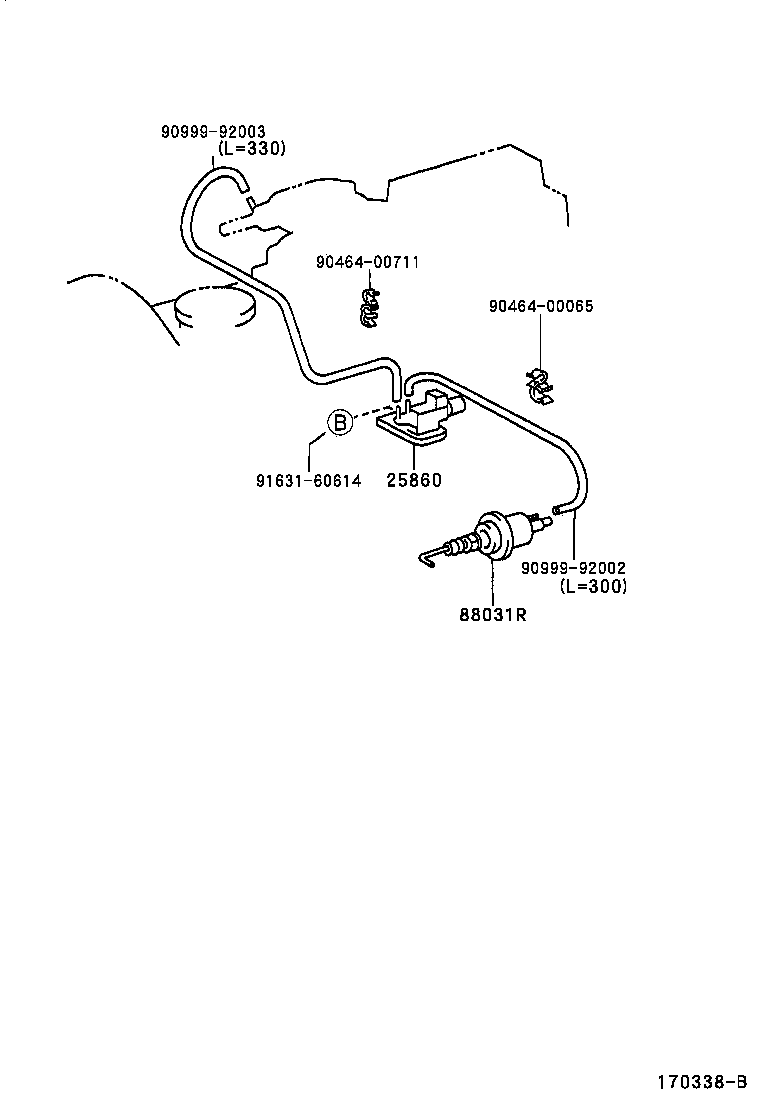

Click highlighted areas on diagram

diagram 25860 88031R 9046400065 9046400711 9099992002 9099992003 9163160614
Part # Description Qty Price
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-64170

2C..CR41,51

 1
88031R - ACTUATOR SET, IDLE-UP
88031-28040

CR4#,5#

 1
Common parts
90464-00065
90464-00711
90999-92002
90999-92003
91631-60614
