CR41V-ERMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)2C

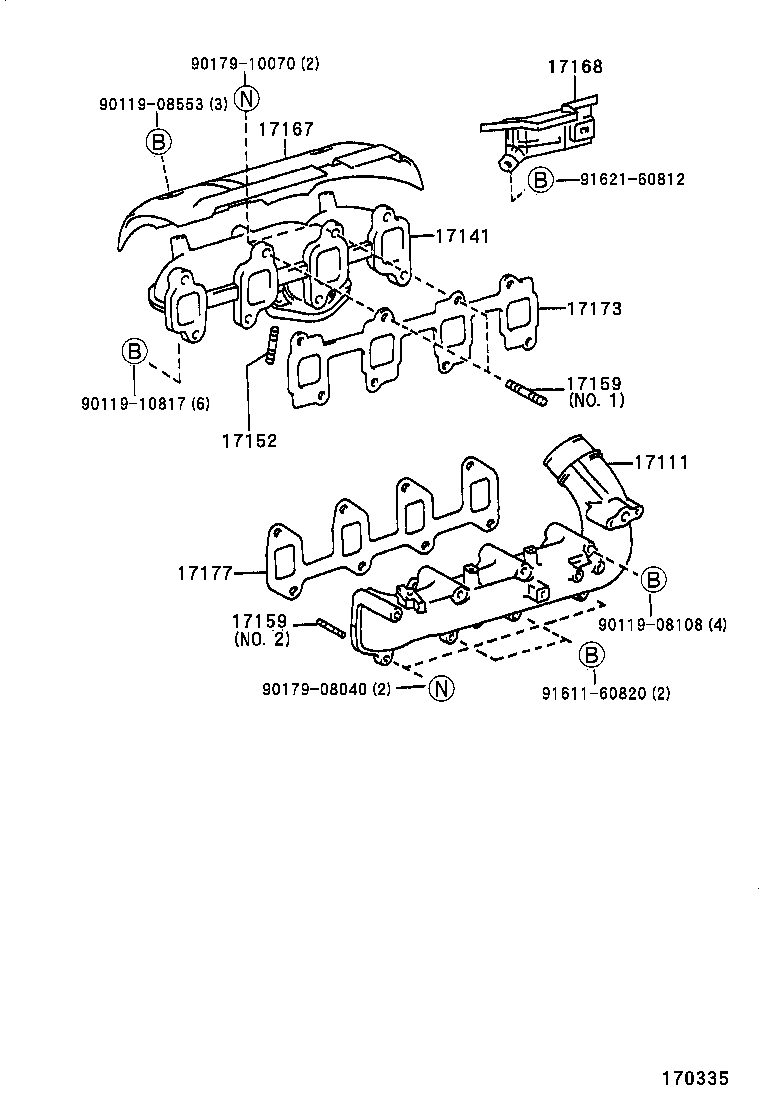

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011908108 9011908553 9011910817 9017908040 9017910070 9161160820 9162160812
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64230

2C..CR41,51

 1
17141 - MANIFOLD, EXHAUST
17141-64012

2C..CR41,51

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

2C..CR41,51

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10017

2C..CR41,51

NO.1

 2
92122-60820

2C,3CT..CR4#,5#

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10017

2C..CR41,51

NO.1

 2
92122-60820

2C,3CT..CR4#,5#

NO.2

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64100

2C..CR41,51

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64100

2C..CR41,51

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64060

2C..CR41,51

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64020

2C,3CT..CR4#,5#

 1
Common parts
90119-08108
90119-08553
90119-10817
90179-08040
90179-10070
91611-60820
91621-60812
