CR41V-ERMDS (1996)

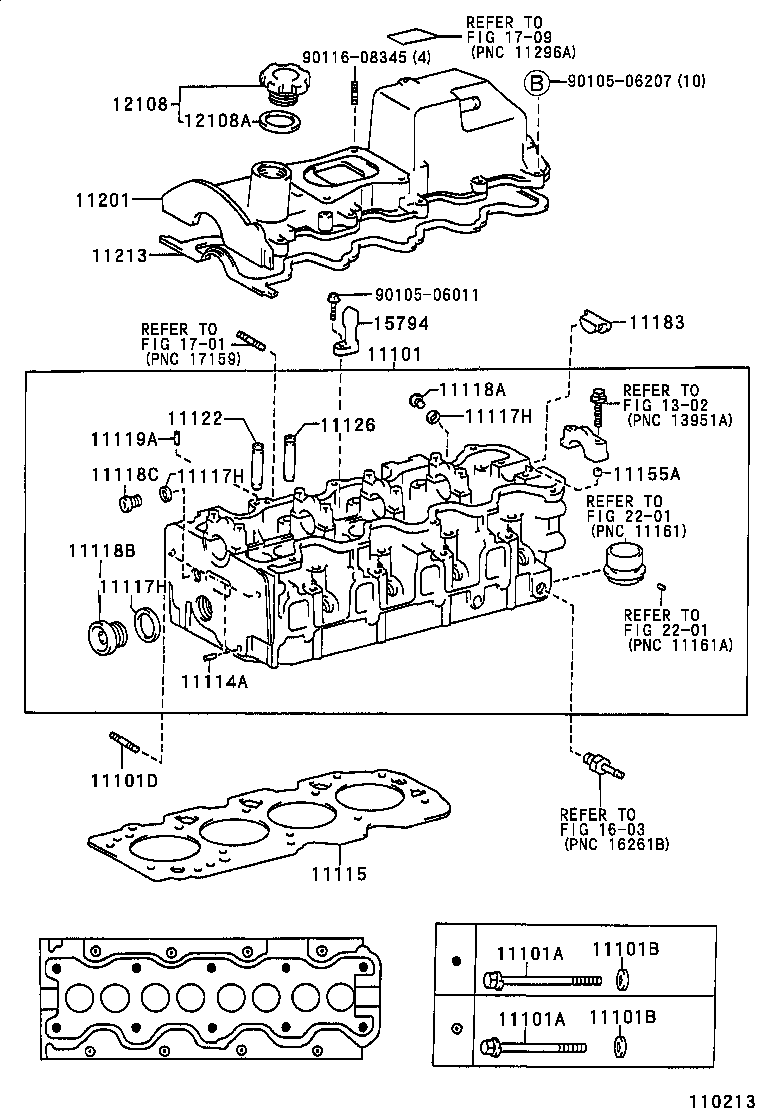

Toyota Lite/Townace Noah,V
(9610-9705)2C,3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64181 |
2C..CR41,51 |
1 | ||
| 11101-64182 |
2C..CR41,51 |
1 | ||
| 11101-64183 |
2C..CR41,51 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C,3CT..CR4#,5# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C,3CT..CR4#,5# *11−1.25PX123−53 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C,3CT..CR4#,5# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C,3CT..CR4#,5# *11−1.25PX123−53 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2C,3CT..CR4#,5# |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2C,3CT..CR4#,5# |
18 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 92122-60820 |
2C,3CT..CR4#,5# |
2 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2C,3CT..CR4#,5# 長さ=11,外径=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64170A0 |
2C..CR41,51 MARK 1,修理書参照 |
1 | ||
| 11115-64170C0 |
2C..CR41,51 MARK 3,修理書参照 |
1 | ||
| 11115-64170B0 |
2C..CR41,51 MARK 2,修理書参照 |
1 | ||
| 11115-64122 |
2C..CR41,51 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C,3CT..CR4#,5# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-10005 |
2C,3CT..CR4#,5# |
4 | ||
| 11118B - PLUG, STRAIGHT, NO.2 | ||||
| 90341-32070 |
2C,3CT..CR4#,5# |
1 | ||
| 11118C - PLUG, STRAIGHT, NO.3 | ||||
| 90341-12013 |
2C,3CT..CR4#,5# |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2C,3CT..CR4#,5# 長さ=16,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11122-64010 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-64010 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11127-64030 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11127-64010 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11126-64030 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2C,3CT..CR4#,5# |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
2C,3CT..CR4#,5# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64150 |
2C,3CT..CR4#,5# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64061 |
2C,3CT..CR4#,5# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2C,3CT..CR4#,5# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2C,3CT..CR4#,5# |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2C,3CT..CR4#,5# |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||

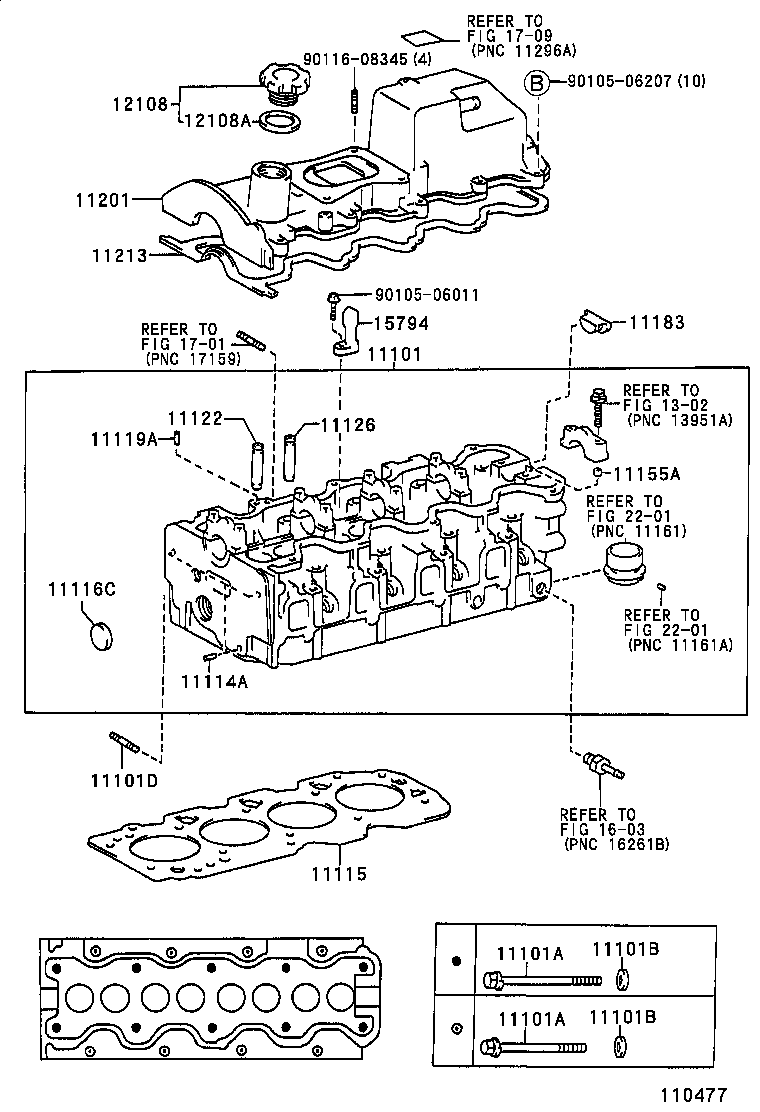

(9705-9812)2C,3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64181 |
2C..CR41,51 |
1 | ||
| 11101-64182 |
2C..CR41,51 |
1 | ||
| 11101-64183 |
2C..CR41,51 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C,3CT..CR4#,5# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C,3CT..CR4#,5# *11−1.25PX123−53 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C,3CT..CR4#,5# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C,3CT..CR4#,5# *11−1.25PX123−53 |
8 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2C,3CT..CR4#,5# |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
2C,3CT..CR4#,5# |
18 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 92122-60820 |
2C,3CT..CR4#,5# |
2 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2C,3CT..CR4#,5# 長さ=11,外径=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64170A0 |
2C..CR41,51 MARK 1,修理書参照 |
1 | ||
| 11115-64170C0 |
2C..CR41,51 MARK 3,修理書参照 |
1 | ||
| 11115-64170B0 |
2C..CR41,51 MARK 2,修理書参照 |
1 | ||
| 11115-64122 |
2C..CR41,51 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2C,3CT..CR4#,5# |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2C,3CT..CR4#,5# 長さ=16,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11122-64010 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-64010 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11127-64030 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11127-64010 |
2C,3CT..CR4#,5# O/S 0.05 |
4 | ||
| 11126-64030 |
2C,3CT..CR4#,5# STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2C,3CT..CR4#,5# |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
2C,3CT..CR4#,5# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64150 |
2C,3CT..CR4#,5# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64061 |
2C,3CT..CR4#,5# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2C,3CT..CR4#,5# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2C,3CT..CR4#,5# |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2C,3CT..CR4#,5# |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||
