CR41V-EMMDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)2C,3CT

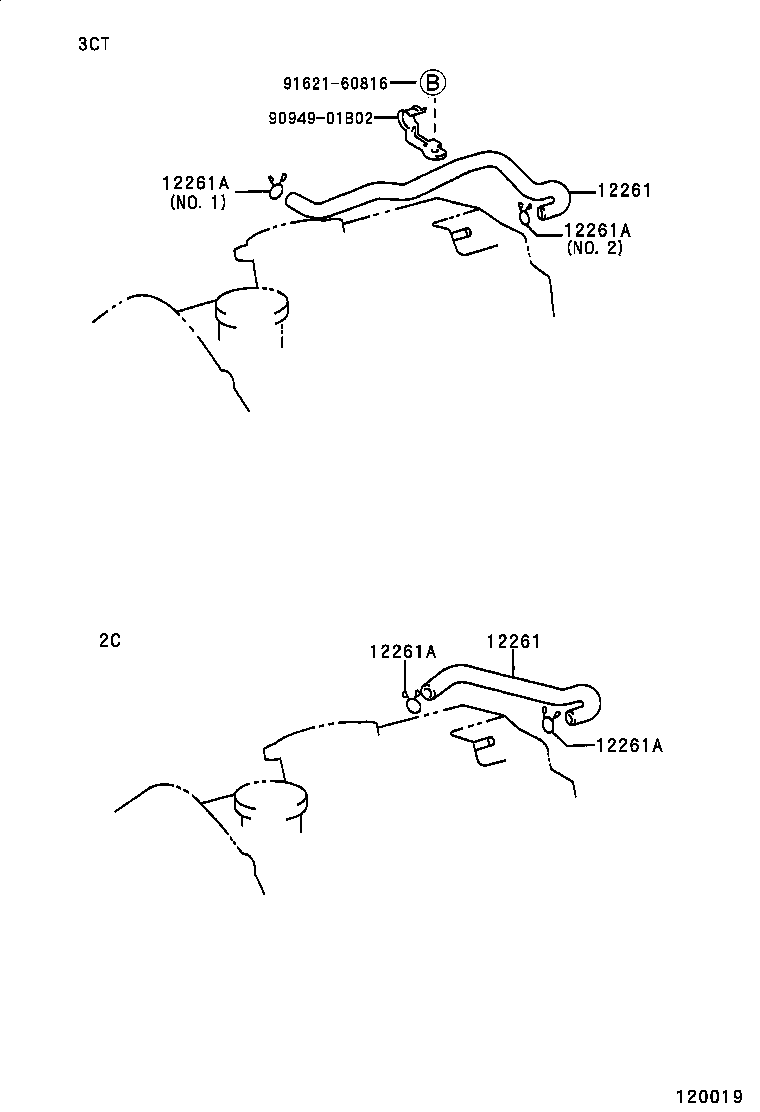

Click highlighted areas on diagram

diagram 12261 12261 12261A 12261A 12261A 12261A 9094901B02 9162160816
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-64230

2C..CR41,51

 1
12261 - HOSE, VENTILATION
12261-64230

2C..CR41,51

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2C..CR41,51

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2C..CR41,51

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2C..CR41,51

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2C..CR41,51

 2
Common parts
90949-01B02
91621-60816
