CR40G-HRSEX5 (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

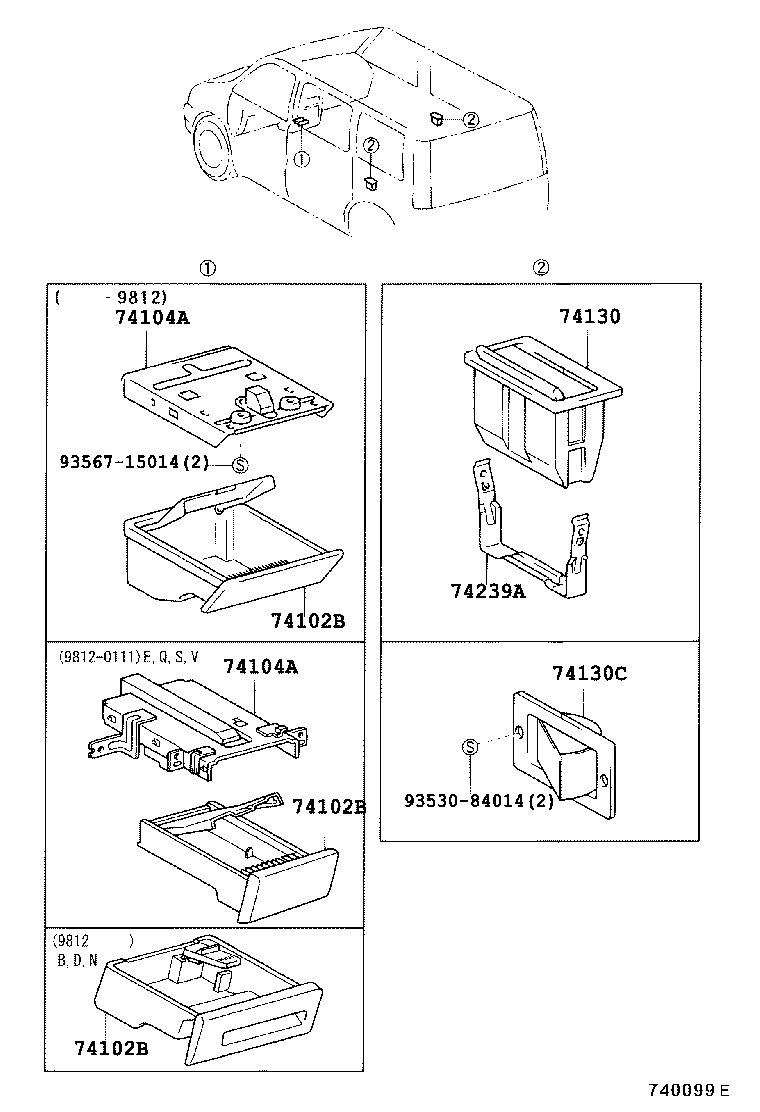

Click highlighted areas on diagram

diagram 74102B 74102B 74102B 74104A 74104A 74130 74130C 74239A 9353084014 9356715014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-28020G0

CR40,50,SR40,50..E,Q

DK.SAGE,TRIM6#

 1
74102-28020B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-28020G0

CR40,50,SR40,50..E,Q

DK.SAGE,TRIM6#

 1
74102-28020B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-28020G0

CR40,50,SR40,50..E,Q

DK.SAGE,TRIM6#

 1
74102-28020B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-28070

CR4#,5#,KR4#,SR40,50..B,D,N

 1
74104-28080

CR40,50,SR40,50..E,Q,V

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-28070

CR4#,5#,KR4#,SR40,50..B,D,N

 1
74104-28080

CR40,50,SR40,50..E,Q,V

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-16020B1

CR40,50,SR40,50..E,Q,V

MD.MOON MIST,TRIM1#

 2
74130-16020G0

CR40,50,SR40,50..E,Q

DK.SAGE,TRIM6#

 2
74239A - HOLDER, REAR ASH RECEPTACLE
74239-22020

CR40,50,SR40,50..E,Q,V

 2
Common parts
93530-84014
93567-15014
