CR40G-HRSEX5 (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

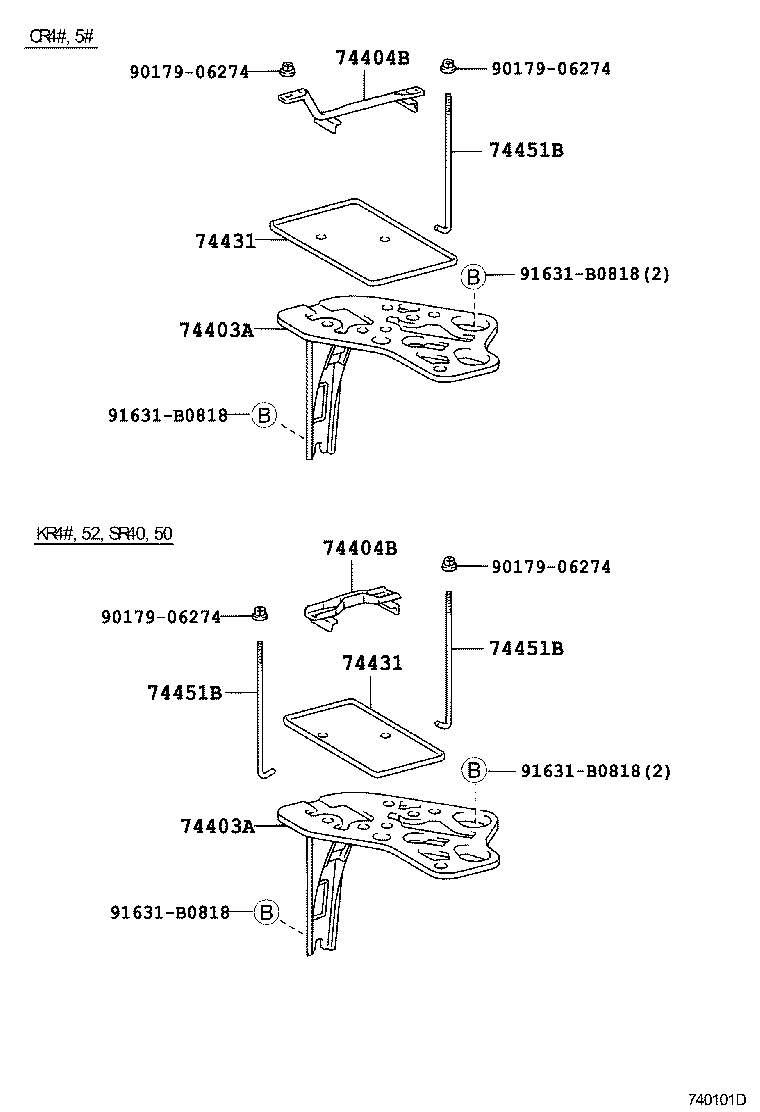

Click highlighted areas on diagram

diagram 74403A 74403A 74404B 74404B 74431 74431 74451B 74451B 74451B 9017906274 9017906274 9017906274 9017906274 91631B0818 91631B0818 91631B0818 91631B0818
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-28020

CR4#,5#,KR4#,SR40,50

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-28020

CR4#,5#,KR4#,SR40,50

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-28090

CR4#,5#

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-28090

CR4#,5#

 1
74431 - TRAY, BATTERY
74431-14040

CR4#,5#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74431 - TRAY, BATTERY
74431-14040

CR4#,5#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74451B - BOLT, BATTERY CLAMP
74451-16010

CR4#,5#

 1
74451B - BOLT, BATTERY CLAMP
74451-16010

CR4#,5#

 1
74451B - BOLT, BATTERY CLAMP
74451-16010

CR4#,5#

 1
Common parts
90179-06274
91631-B0818
