CR40G-HRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

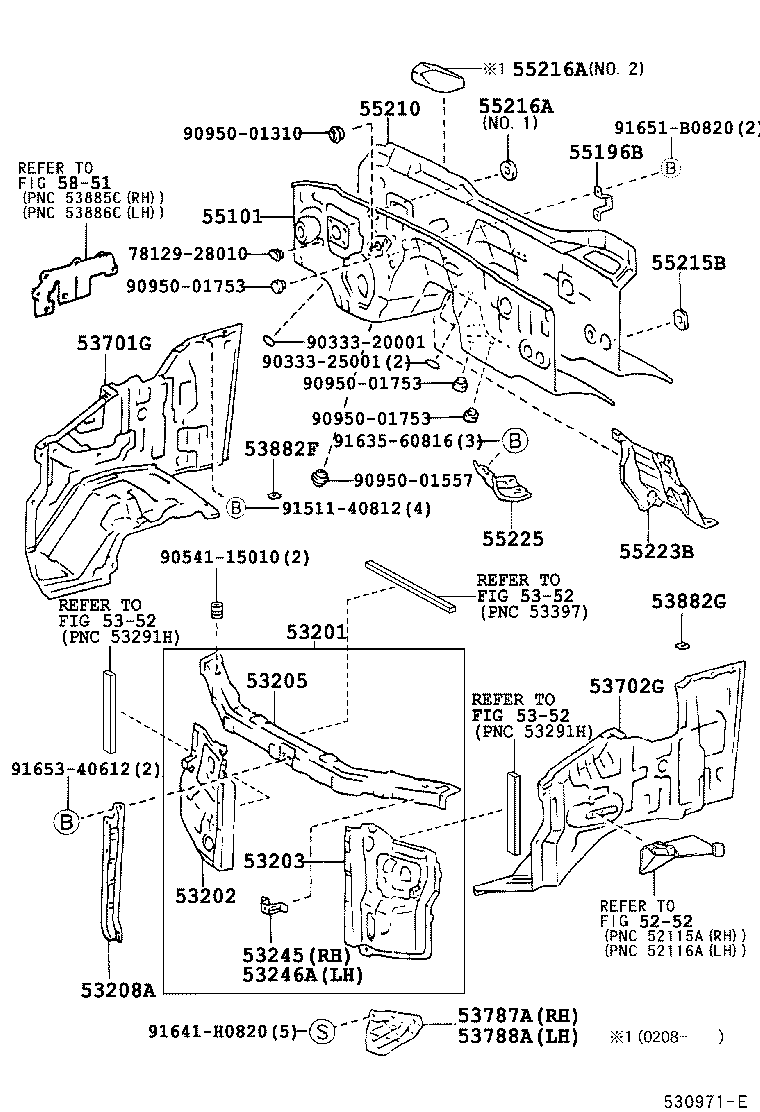

Click highlighted areas on diagram

diagram 5252 53201 53202 53203 53205 53208A 53245 53246A 5352 5352 5352 53701G 53702G 53787A 53788A 53882F 53882G 55101 55196B 55210 55215B 55216A 55216A 55223B 55225 5851 7812928010 9033320001 9033325001 9054115010 9095001310 9095001557 9095001753 9095001753 9095001753 9151140812 9163560816 91641H0820 91651B0820 9165340612
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-28060

CR40,50

 1
53201-28080

CR40,50..(E,Q)..CBU

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-28040

CR40,50,SR40,50..(E,Q)..CBU

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ

 1
53202-28030

CR40,50,SR40,50..07S,08S

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-28030

CR40,50,SR40,50..07S,08S

 1
53203-28040

CR40,50,SR40,50..(E,Q)..CBU

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-28110

CR4#,5#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53215-28030

CR4#,5#,KR4#,SR40,50

 1
53245 - BRACKET, HEADLAMP, RH
53245-28020

CR40,50,SR40,50..(E,Q)..CBU

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ

 1
53246A - BRACKET, HEADLAMP MOUNTING, UPPER LH
53246-28020

CR40,50,SR40,50..(E,Q)..CBU

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ

 1
53701G - APRON SUB-ASSY, FRONT FENDER, RH
53701-28600

CR4#,5#,KR4#,SR40,50

ｱﾘ(ABS)

 1
53701-28770

CR4#,5#,KR4#,SR40,50

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ABS)

 1
53702G - APRON SUB-ASSY, FRONT FENDER, LH
53702-28590

CR4#,5#,KR4#,SR40,50

 1
53702-28660

CR4#,5#,KR4#,SR40,50

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
53787A - GUSSET, FRONT FENDER APRON, LOWER RH
53707-28120

CR4#,5#,KR4#,SR40,50

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53708-28110

CR4#,5#,KR4#,SR40,50

 1
53882F - SEAL, FRONT FENDER
53882-16030

CR4#,5#,KR4#,SR40,50

 3
53882G - SEAL, FRONT FENDER
53882-16030

CR4#,5#,KR4#,SR40,50

 3
55101 - PANEL SUB-ASSY, DASH
55101-2R330

CR50..ATM;CR40..ATM..(E,Q,V)

 1
55101-2R331

CR50..ATM;CR40..ATM..(E,Q,V)

 1
55101-2R411

CR4#,51..ATM..(D,N)

ｱﾘ(ABS)

 1
55101-2R410

CR4#,51..ATM..(D,N)

ｱﾘ(ABS)

 1
55101-2R332

CR50..ATM;CR40..ATM..(E,Q,V)

ｱﾘ(ABS)

 1
55101-2R412

CR4#,51..ATM..(D,N)

ｱﾘ(ABS)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-28050

CR40,50,SR40,50

 1
55210-28090

CR40,50,SR40,50

 1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-28040

CR4#,5#,KR4#,SR40,50

 1
55216A - PAD, DASH PANEL INSULATOR, NO.4
55216-28030

CR4#,5#,KR4#,SR40,50

 1
55216A - PAD, DASH PANEL INSULATOR, NO.4
55216-28030

CR4#,5#,KR4#,SR40,50

 1
Common parts
78129-28010
90333-20001
90333-25001
90541-15010
90950-01310
90950-01557
90950-01753
91511-40812
91635-60816
91641-H0820
91651-B0820
91653-40612
Linked diagrams
5252
5352
5851
