CR40G-HRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)2C,3CT ; (9812- )3C#

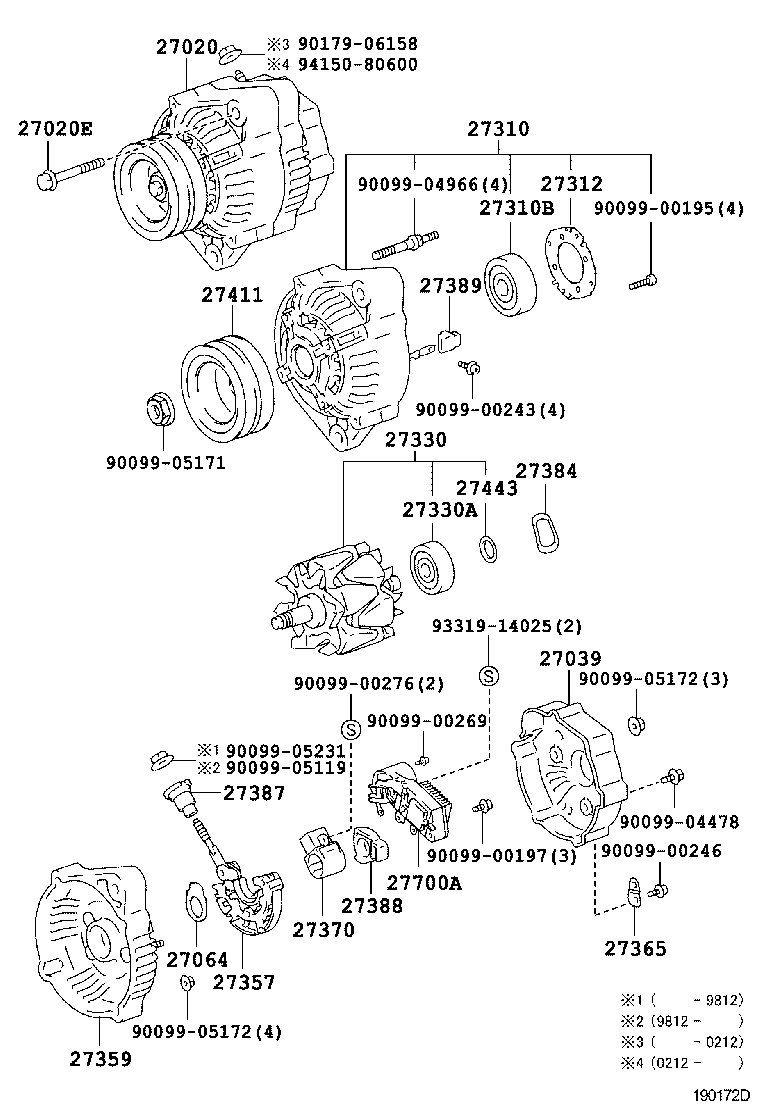

Click highlighted areas on diagram

12V 90A,12V 120A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900243 9009900246 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9009905231 9017906158 9331914025 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-64320

2C,3CT..CR4#,5#

12V 90A

 1
27060-64330

3CT..CR40,50

12V 120A,ｶﾝﾚｲﾁｼﾖｳ

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10386

2C,3CT..CR4#,5#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A

 1
27039-50090

3CT..CR40,50

12V 120A

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2C,3CT,3SFE..CR4#,5#,SR40,50

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64520

3CT..CR40,50

12V 120A

 1
27310-64510

2C,3CT..CR4#,5#

12V 90A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A,120A

 1
27312 - PLATE, RETAINER
27312-42010

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A,120A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280

3SFE..SR40..ATM;2C,3CT,3SFE..CR4#,5#,SR50

12V 90A

 1
27330-64520

3CT..CR40,50

12V 120A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 55A,70A,80A,90A,120A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-46130

2C,3CT..CR4#,5#

12V 90A

 1
27357-50080

3CT..CR40,50

12V 120A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64520

3CT..CR40,50

12V 120A

 1
27359-64500

2C,3CT..CR4#,5#

12V 90A

 1
27365 - PLATE, TERMINAL
27365-55080

2C,3CT,3SFE..CR4#,5#,SR40,50

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A,120A

 1
27384 - WASHER
27384-50030

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A,120A

 1
27387 - INSULATOR, TERMINAL
27387-42040

2C,3CT..CR4#,5#

12V 90A

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

2C,3CT,3SFE..CR4#,5#,SR40,50

 1
27389 - INSULATOR, TERMINAL
27389-42010

2C,3CT,3SFE..CR4#,5#,SR40,50

12V 70A,80A,90A,120A

 4
27411 - PULLEY, ALTERNATOR
27411-64500

2C,3CT..CR4#,5#

12V 90A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
27700A - REGULATOR ASSY, GENERATOR
27700-50030

2C,3CT..CR4#,5#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90099-05231
90179-06158
93319-14025
94150-80600
