CR40G-HRSET (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )CR4#,5#

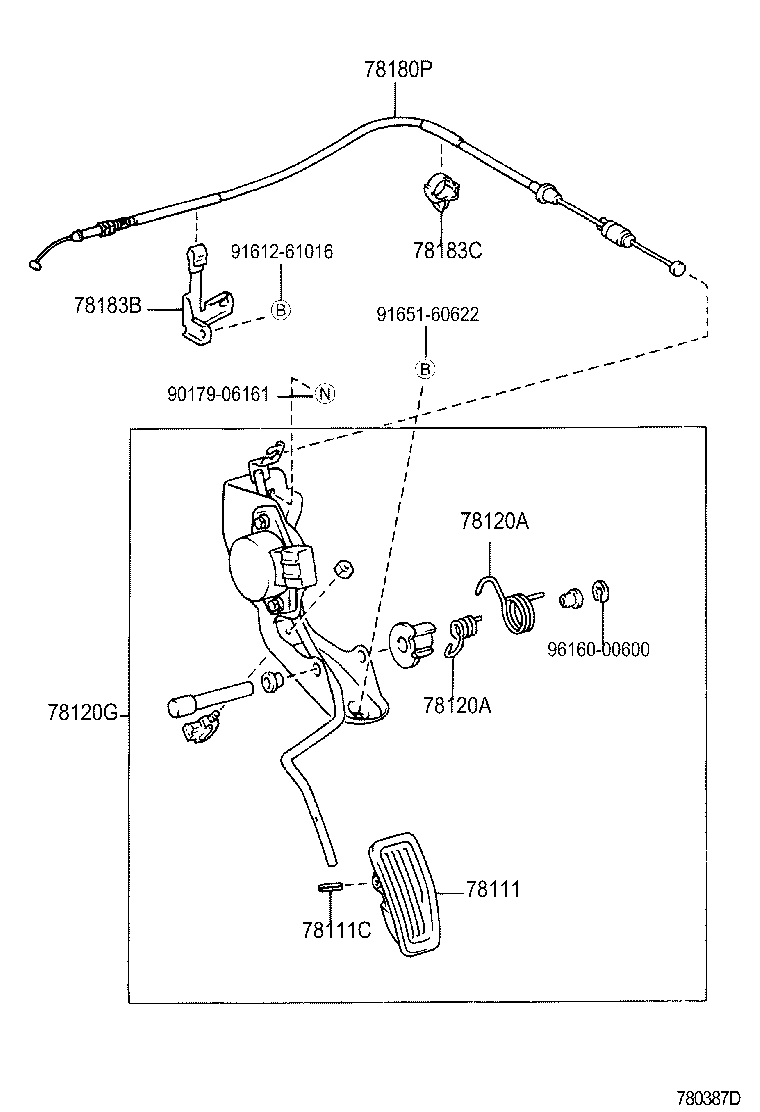

Click highlighted areas on diagram

diagram 78111 78111C 78120A 78120A 78120G 78180P 78183B 78183C 9017906161 9161261016 9165160622 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-28040

CR40,50,SR40,50

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

CR40,50,SR40,50

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03230

CR40,50

内側

 1
90959-03229

CR40,50

外側

 1
90959-03123

CR41,51;CR40,50..ATM

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03230

CR40,50

内側

 1
90959-03229

CR40,50

外側

 1
90959-03123

CR41,51;CR40,50..ATM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78010-28180

CR40,50

 1
78120-28020

CR41,51;CR40,50..ATM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28270

CR4#,5#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28220

CR4#,5#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-28230

CR4#,5#,SR40,50

 1
Common parts
90179-06161
91612-61016
91651-60622
96160-00600
