CR40G-HRMEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)3CT ; (9611-9812)2C..CR41..ATM

Click highlighted areas on diagram

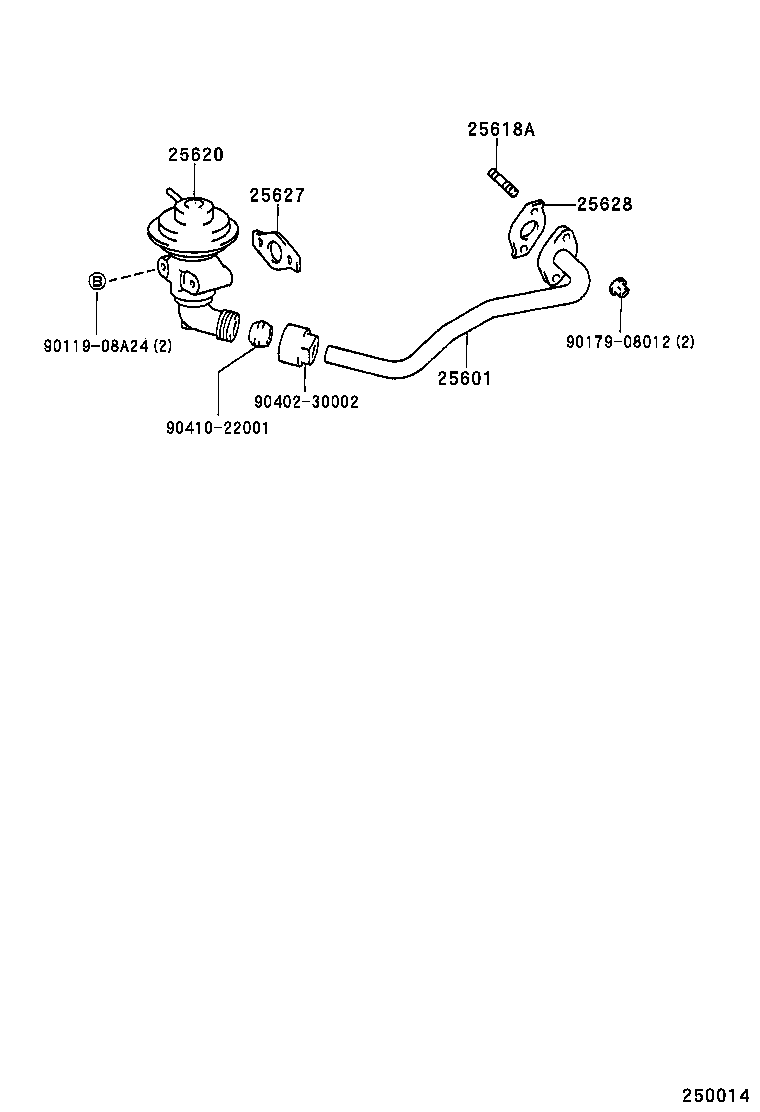

diagram 25601 25618A 25620 25627 25628 9011908A24 9017908012 9040230002 9041022001
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-64081

3CT..CR40,50;2C..CR41..ATM

 1
25601-64080

3CT..CR40,50;2C..CR41..ATM

 1
25618A - BOLT, STUD(FOR EGR INLET)
92122-60822

3CT..CR40,50;2C..CR41..ATM

 2
25620 - VALVE ASSY, EGR
25620-64180

3CT..CR40,50

 1
25627 - GASKET, EGR VALVE
25627-64041

3CT..CR40,50;2C..CR41..ATM

 1
25628 - GASKET, EGR INLET
25628-64030

3CT..CR40,50;2C..CR41..ATM

 1
Common parts
90119-08A24
90179-08012
90402-30002
90410-22001
