CR40G-HFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

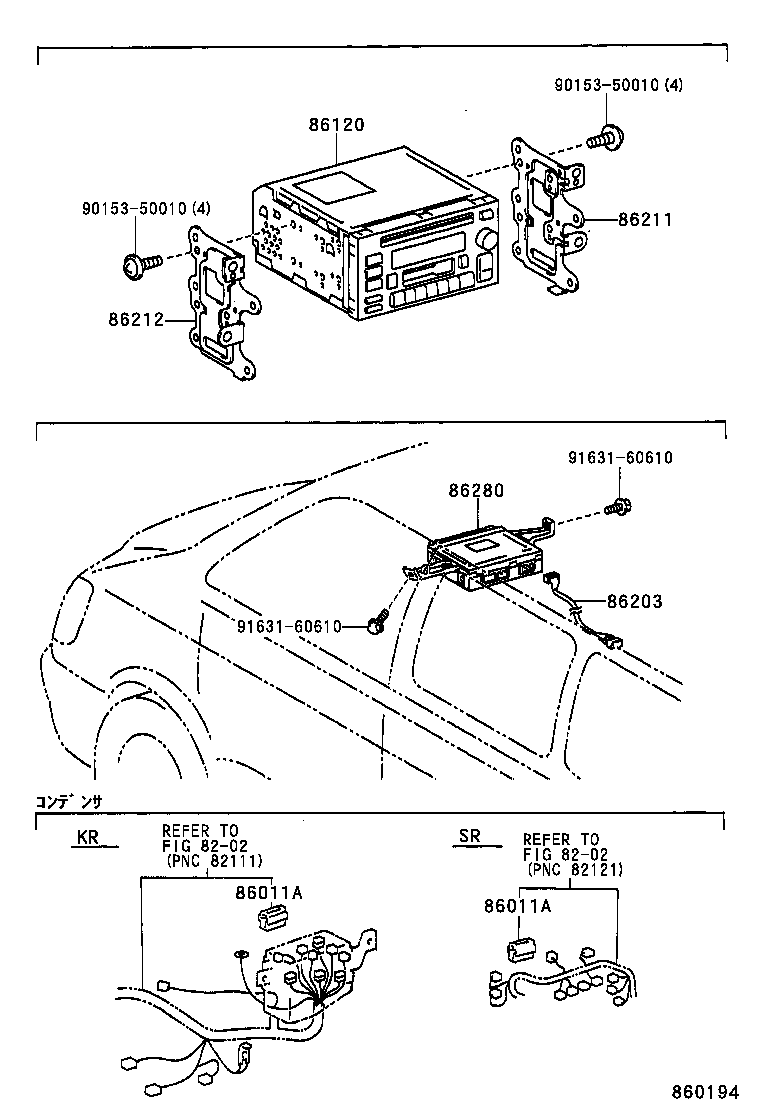

ILLUST NO. 1 OF 2(9610- )

Click highlighted areas on diagram

diagram 8202 8202 86011A 86011A 86120 86203 86211 86212 86280 9015350010 9015350010 9163160610 9163160610
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-10450

CR40,50,SR40,50..Q

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-28170

CR40,50,SR40,50..E,Q,V

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86203 - WIRE, RADIO
86203-28040

CR40,50,SR40,50..Q

 1
86203-28030

CR40,50,SR40,50..E,Q,V

 1
86211 - BRACKET, RADIO, NO.1
86211-28050

CR40,50,SR40,50..ATM..(E,Q,V)

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86211-28040

CR4#,5#,KR4#,SR40,50..B,D,N,Q

 1
86211-28040

CR4#,5#,KR4#,SR40,50

 1
86211-28090

CR40,50,SR40,50..ATM..(E,Q,V)

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86212 - BRACKET, RADIO, NO.2
86212-28050

CR40,50,SR40,50..ATM..(E,Q,V)

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86212-28090

CR40,50,SR40,50..ATM..(E,Q,V)

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
86212-28040

CR4#,5#,KR4#,SR40,50..B,D,N,Q

 1
86212-28040

CR4#,5#,KR4#,SR40,50

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-28210

CR40,50,SR40,50..E,Q,V

 1
86280-28130

CR40,50,SR40,50..Q

 1
Common parts
90153-50010
91631-60610
Linked diagrams
8202

ILLUST NO. 2 OF 2(9610- )

Click highlighted areas on diagram

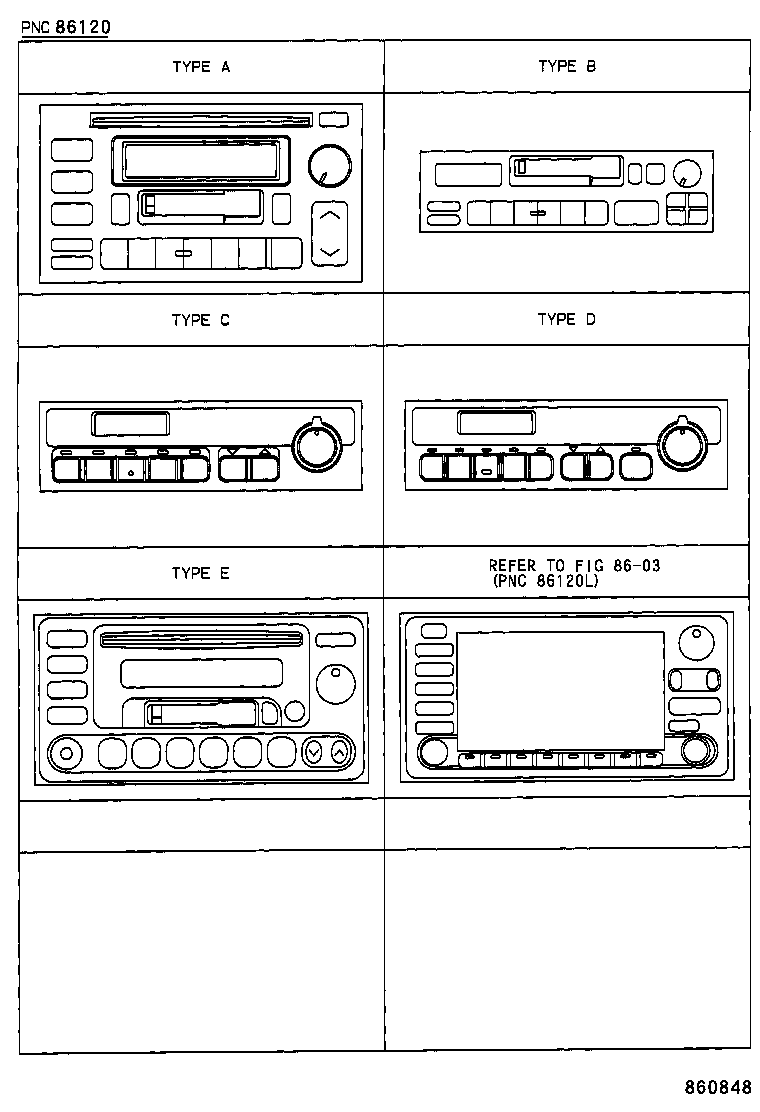

diagram 8603 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-10450

CR40,50,SR40,50..Q

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-28170

CR40,50,SR40,50..E,Q,V

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Linked diagrams
8603
