CR40G-HFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

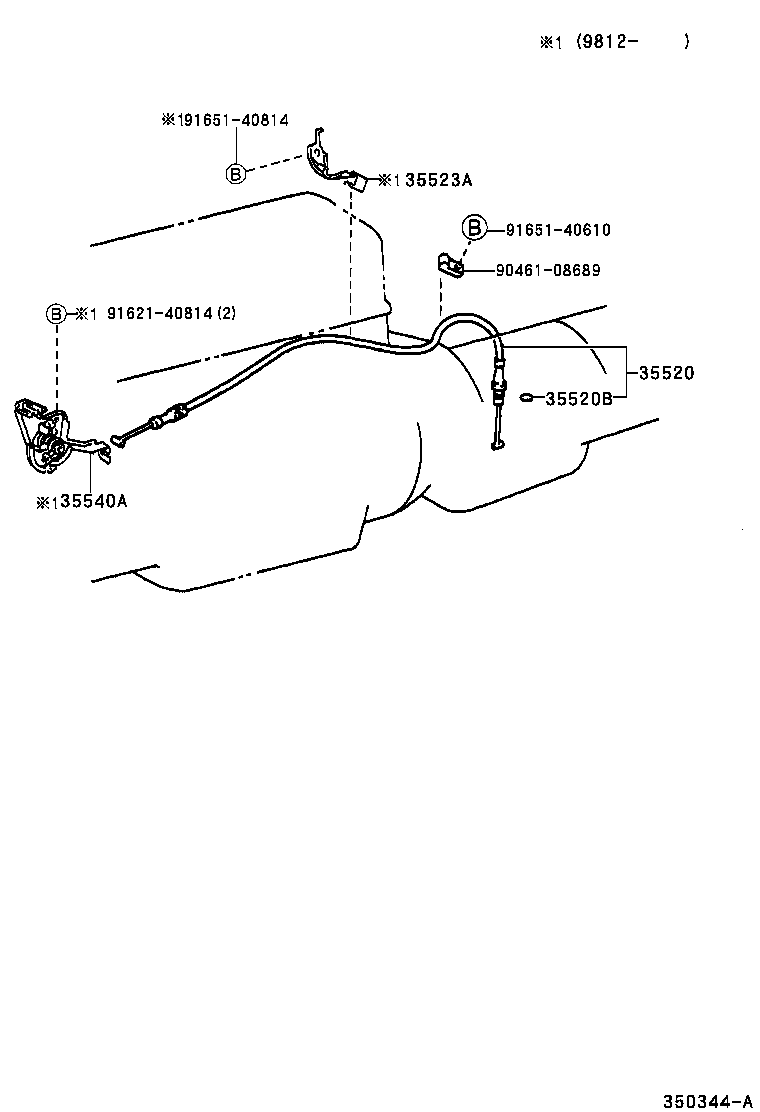

ILLUST NO. 2 OF 2(9610- )CR4#,5#..ATM

Click highlighted areas on diagram

A44D,A44DE,A44DF,A44DL,A45DF

diagram 35520 35520B 35523A 35540A 9046108689 9162140814 9165140610 9165140814
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-28070

CR4#,5#..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

CR4#,5#,KR4#,SR40,50..ATM

 1
Common parts
90461-08689
91621-40814
91651-40610
91651-40814

ILLUST NO. 1 OF 2(9610- )ATM

Click highlighted areas on diagram

A42D,A44D,A44DF,A45DF,A45DL

diagram 35501 35505 35506C 35506F 35506F 35506H 35506H 35556 35556E 35557 35557A 35561 35572 35595 9010106024 9411050800 9451200800 9454200600
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-26020

CR4#,5#,KR4#,SR40,50..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-28010

CR4#,5#,KR4#,SR40,50..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

CR4#,5#,KR4#,SR40,50..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

CR4#,5#,KR4#,SR40,50..ATM

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

CR4#,5#,KR4#,SR40,50..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

CR4#,5#,KR4#,SR40,50..ATM

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

CR4#,5#,KR4#,SR40,50..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

CR4#,5#,KR4#,SR40,50..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

CR4#,5#,KR4#,SR40,50..ATM

 1
35557 - PAWL, PARKING LOCK
35557-26020

CR4#,5#,KR4#,SR40,50..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

CR4#,5#,KR4#,SR40,50..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-40010

CR4#,5#,KR4#,SR40,50..ATM

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-28080

CR4#,5#,KR4#,SR40,50..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

CR4#,5#,KR4#,SR40,50..ATM

 1
Common parts
90101-06024
94110-50800
94512-00800
94542-00600
