CR40G-HFSQT (1998)
Toyota Lite/Townace Noah,V

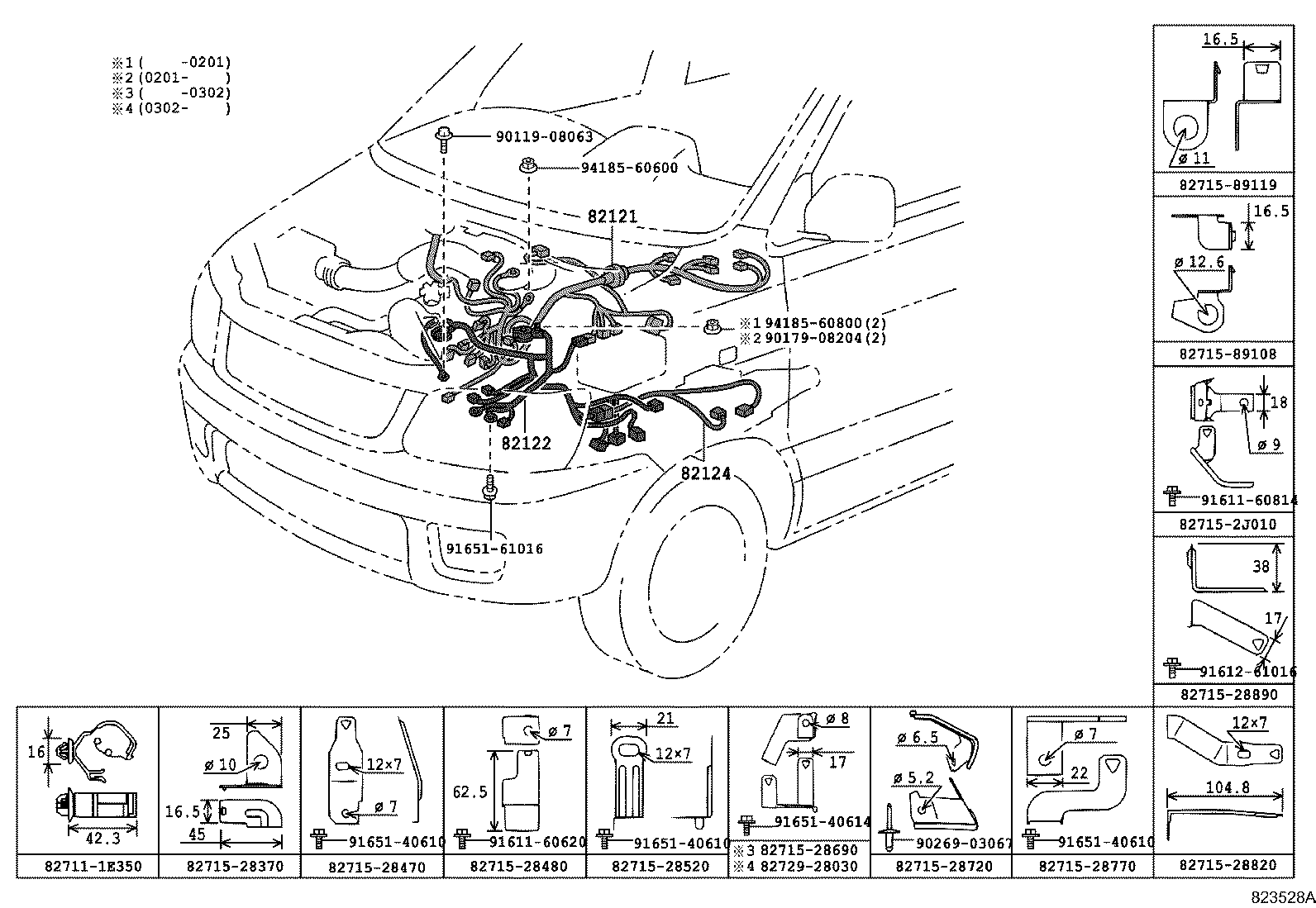

ILLUST NO. 1 OF 9(9812- )CR4#,5#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28330 |
CR40,50..ATM |
1 | ||
| 82121-28690 |
CR40,50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28420 |
CR40,50 |
1 | ||
| 82122-28290 |
CR4#,5# |
1 | ||
| 82122-28370 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-28370 | ||||
| 82715-28470 | ||||
| 82715-28480 | ||||
| 82715-28520 | ||||
| 82715-28690 | ||||
| 82715-28720 | ||||
| 82715-28770 | ||||
| 82715-28820 | ||||
| 82715-28890 | ||||
| 82715-2J010 | ||||
| 82715-89108 | ||||
| 82715-89119 | ||||
| 82729-28030 | ||||
| 90119-08063 | ||||
| 90179-08204 | ||||
| 90269-03067 | ||||
| 91611-60620 | ||||
| 91611-60814 | ||||
| 91612-61016 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-61016 | ||||
| 94185-60600 | ||||
| 94185-60800 | ||||

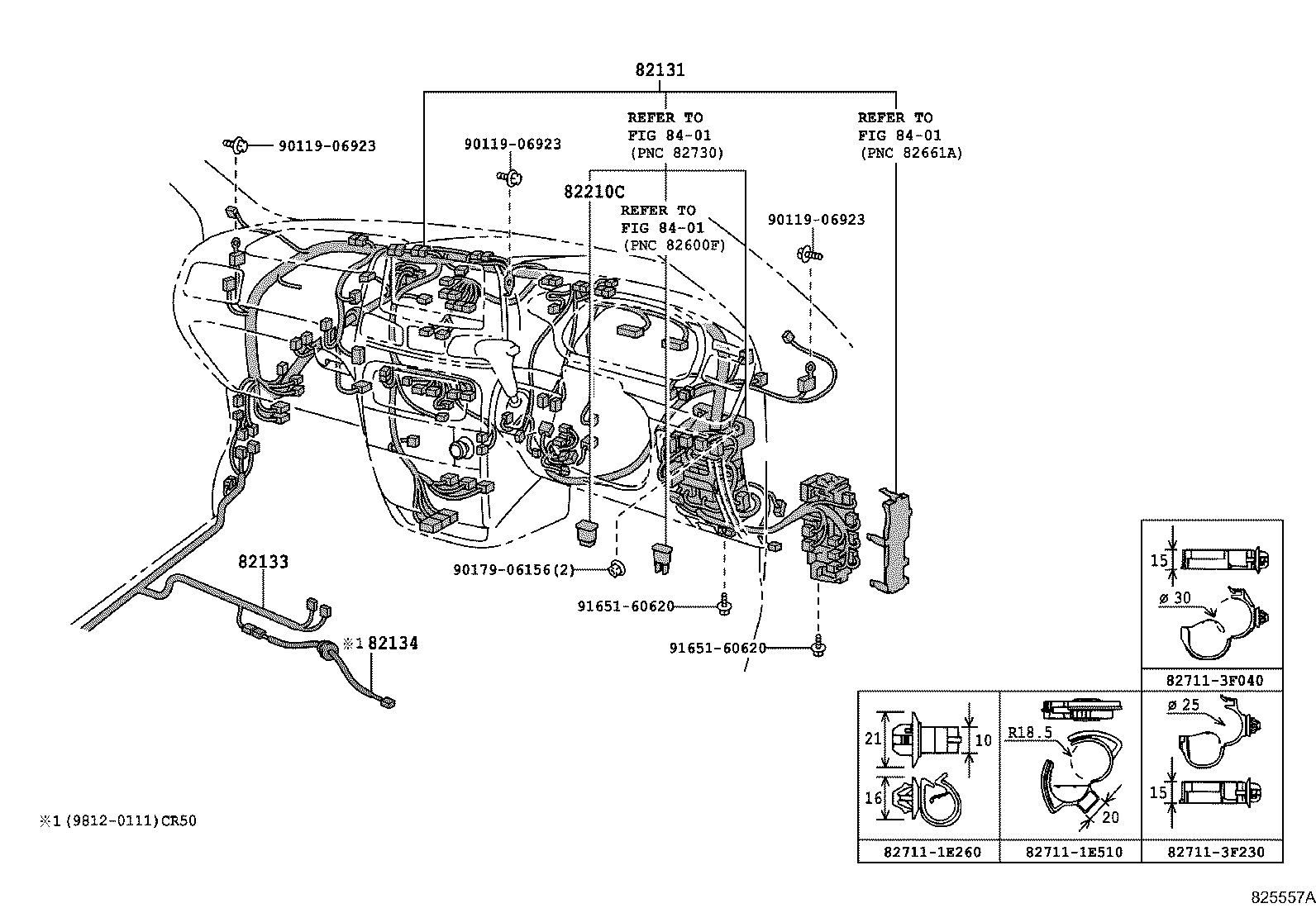

ILLUST NO. 4 OF 9(9812- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2X250 |
CR40,50..E,V ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82131-2X230 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X220 |
CR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X240 |
CR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X260 |
CR40,50..E,V |
1 | ||
| 82129-28850 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ- & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J320 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28860 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28890 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J360 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28830 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82135-2J370 |
CR40,50..D |
1 | ||
| 82135-2J350 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82129-28880 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82129-28840 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ- & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J330 |
CR40,50..E,S,V |
1 | ||
| 82129-28870 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-2J361 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28851 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ- & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J351 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82129-28891 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J321 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28861 |
CR40,50..Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J340 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28160 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82133-28200 |
CR40,SR40,50..E,S,V |
1 | ||
| 82133-28190 |
CR40,SR40,50..E,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82133-28210 |
CR40,SR40,50..E,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82133-28170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82133-28260 |
CR40,50,SR40,50..D |
1 | ||
| 82133-28190 |
CR50..E,Q,S,V;CR40,SR40,50..Q ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82133-28180 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82133-28270 |
CR40,50,SR40,50..D ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CR4#,5#,KR4#,SR40,50 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
CR4#,5#,KR4#,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
CR4#,5#,KR4#,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08203 |
CR4#,5#,KR4#,SR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08280 |
CR4#,5#,KR4#,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ |
1 | ||
| 90982-08254 |
CR4#,5#,KR4#,SR40,50 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
CR40,50,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
CR40,50,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08286 |
CR40,50,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08284 |
CR4#,5#,KR4#,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
CR4#,5#,KR4#,SR40,50 100A,ｵｽ端子,青 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E510 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 90119-06923 | ||||
| 90179-06156 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
