CR40G-GRSVX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9610- )

Click highlighted areas on diagram

diagram 62036 67603 67603A 67603A 67603A 67603E 67604 67604 6777112050 8401 9018304063
Part # Description Qty Price
62036 - TRIM SUB-ASSY, REAR DOOR TRIM, UPPER LH
67618-28040B0

CR40,50,SR40,50..E,V

MOON MIST,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-28040

CR4#,5#,KR4#,SR40,50..4D..(B,D)

 15
67771-28040

CR40,50,SR40,50..E,Q,V

 16
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-28040

CR4#,5#,KR4#,SR40,50..4D..(B,D)

 15
67771-28040

CR40,50,SR40,50..E,Q,V

 16
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-28040

CR4#,5#,KR4#,SR40,50..4D..(B,D)

 15
67771-28040

CR40,50,SR40,50..E,Q,V

 16
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-10154

CR40,50,SR40,50..E,Q,V

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-28130B0

CR40,50,SR40,50..E,Q,V

MD.MOON MIST,TRIM1#

 1
67640-28140B0

CR40,50,SR40,50..D

MD.MOON MIST,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-28130B0

CR40,50,SR40,50..E,Q,V

MD.MOON MIST,TRIM1#

 1
67640-28140B0

CR40,50,SR40,50..D

MD.MOON MIST,TRIM1#

 1
Common parts
67771-12050
90183-04063
Linked diagrams
8401

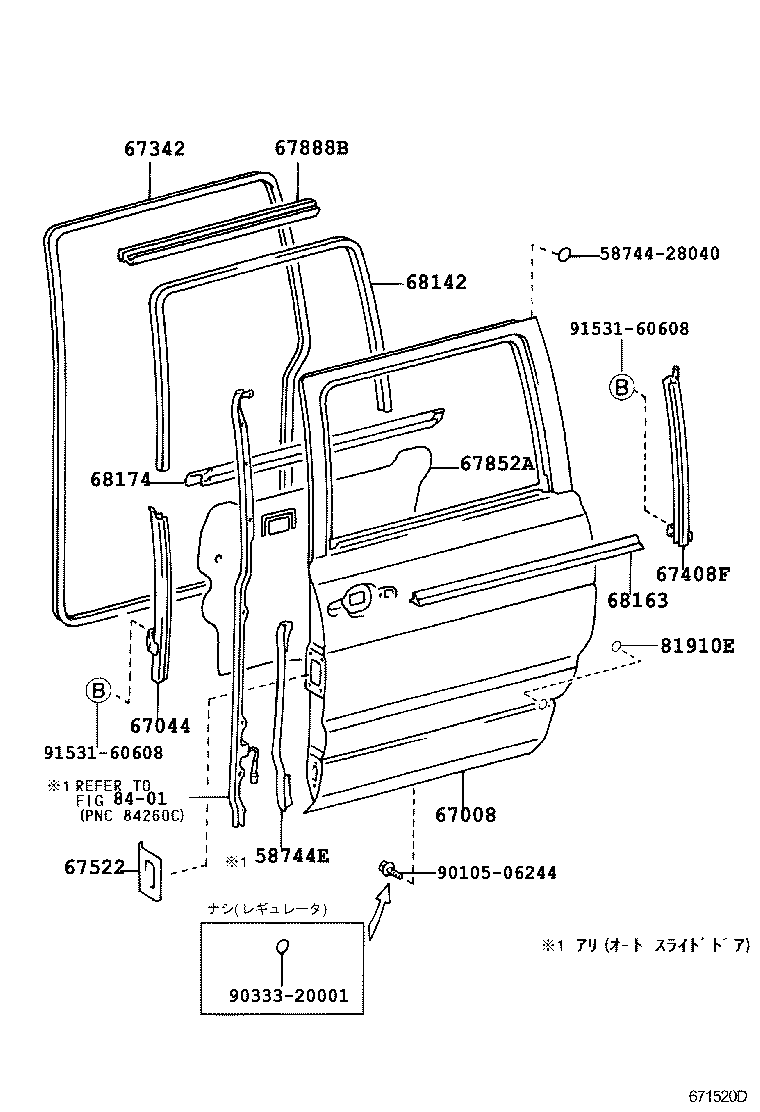

ILLUST NO. 2 OF 2(9610- )4D

Click highlighted areas on diagram

diagram 5874428040 58744E 67008 67044 67342 67408F 67522 67852A 67888B 68142 68163 68174 81910E 8401 9010506244 9033320001 9153160608 9153160608
Part # Description Qty Price
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-28150

CR40,50,SR40,50..B,D

 1
67004-28160

CR40,50,SR40,50..E,V

 1
67004-28170

CR40,50,SR40,50..E,Q,V

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH
67044-28040

CR40,50,SR40,50

 1
67044-28050

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67044-28070

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67044-28060

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
67872-28050

CR4#,5#,KR4#,SR40,50..B,D,N

 1
67872-28060B1

CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
67872-28060B0

CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-28010

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67408-28030

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67408-28020

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-28040

CR40,50,SR40,50..07S,08S

 1
67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH
67888-28030

CR4#,5#,KR4#,SR40,50

 1
68142 - RUN, REAR DOOR GLASS
68142-28050

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68164-28010

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
68174 - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-28010

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
Common parts
58744-28040
90105-06244
90333-20001
91531-60608
Linked diagrams
8401
