CR40G-GRSVX (1996)
Toyota Lite/Townace Noah,V
(9610-9812)CR4#,5#,KR42,SR40,50..D,E,N,Q,V ; (9711-9712)SR40,50..ATM..D ; (9806-981
ｱﾘ(ﾁﾙｽﾃｱﾘﾝｸﾞ)

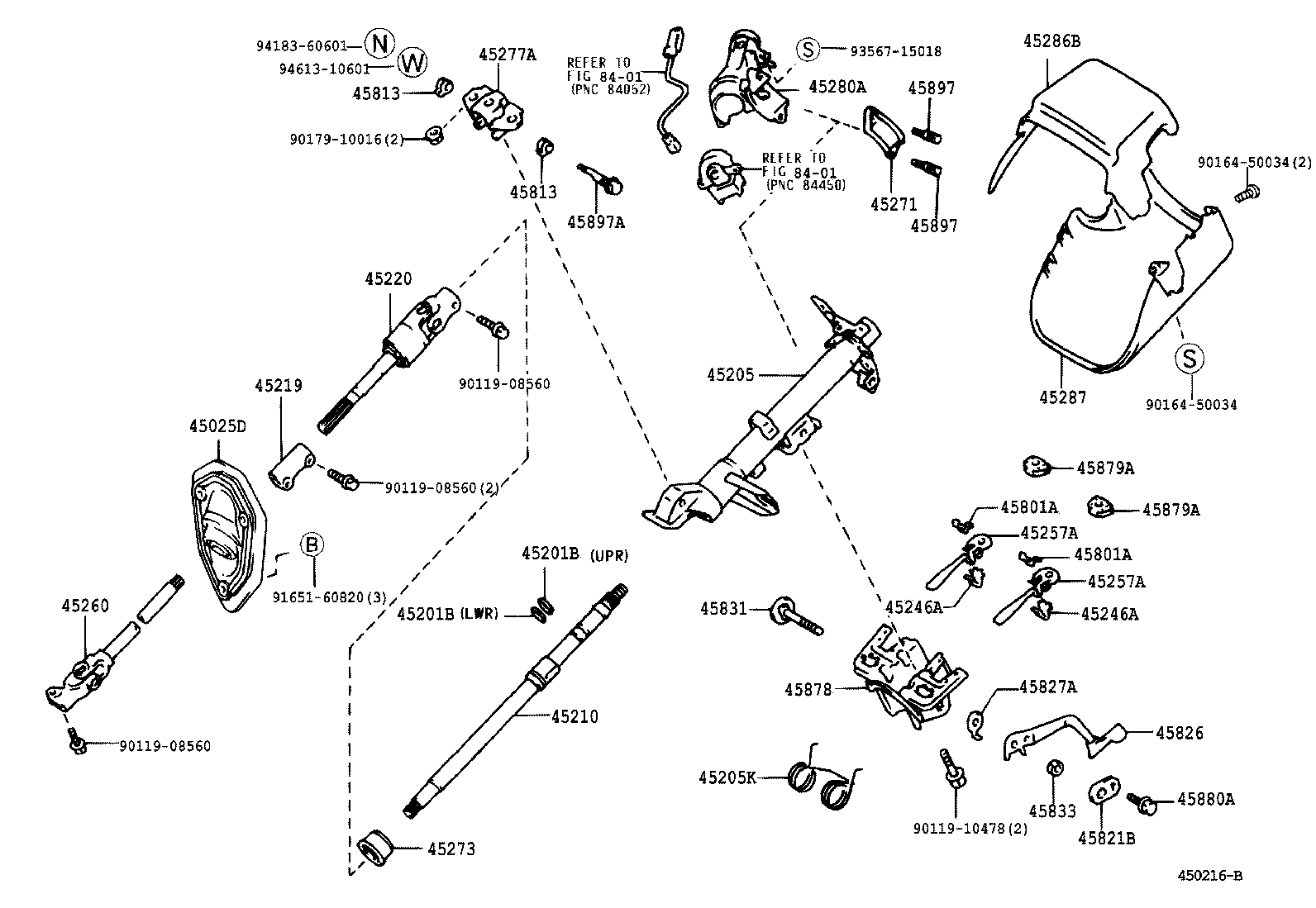

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,下側 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28180 |
CR4#,5#,KR42,SR40,50..ATM..(E,N,Q,V) |
1 | ||
| 45205-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D) |
1 | ||
| 45205-28161 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D) |
1 | ||
| 45205-28181 |
CR4#,5#,KR42,SR40,50..ATM..(E,N,Q,V) |
1 | ||
| 45205-28181 |
CR4#,5#,KR42,SR40,50..(05S,07S,08S)..ATM |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90949-03027 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 90949-03027 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28110 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28040 |
CR4#,KR4#,SR40 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45277-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28220 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28280B0 |
CR40,50..MTM..E;CR40,50,SR40,50..ATM..D;CR41,51,KR4#,SR40..(03S,05S,06S)..MTM MD.MOON MIST,TRIM1# |
1 | ||
| 45286-28290B0 |
CR41,51,KR4#..ATM;CR40,50,SR40..MTM..D;CR40,50,SR40,50..ATM..(B,E,Q,V) MD.MOON MIST,TRIM1# |
1 | ||
| 45286-28290B0 |
CR4#,5#,KR4#,SR40,50..ATM MD.MOON MIST,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28360B0 |
CR4#,5#,KR4#,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 45287-28370B0 |
CR4#,5#,KR42,SR40,50..E,N,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 45287-28370B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S 外径=14 |
2 | ||
| 45813-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V 外径=14 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S 外径=14 |
2 | ||
| 45813-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V 外径=14 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45821-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-28030 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45826-28030 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12030 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45827-12030 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12020 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45831-12020 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45833-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-12220 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45878-12220 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45832-12010 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-12040 |
CR4#,5#,KR42,SR40,50..E,N,Q,V |
1 | ||
| 45897-12040 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50034 | ||||
| 90179-10016 | ||||
| 91651-60820 | ||||
| 93567-15018 | ||||
| 94183-60601 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||

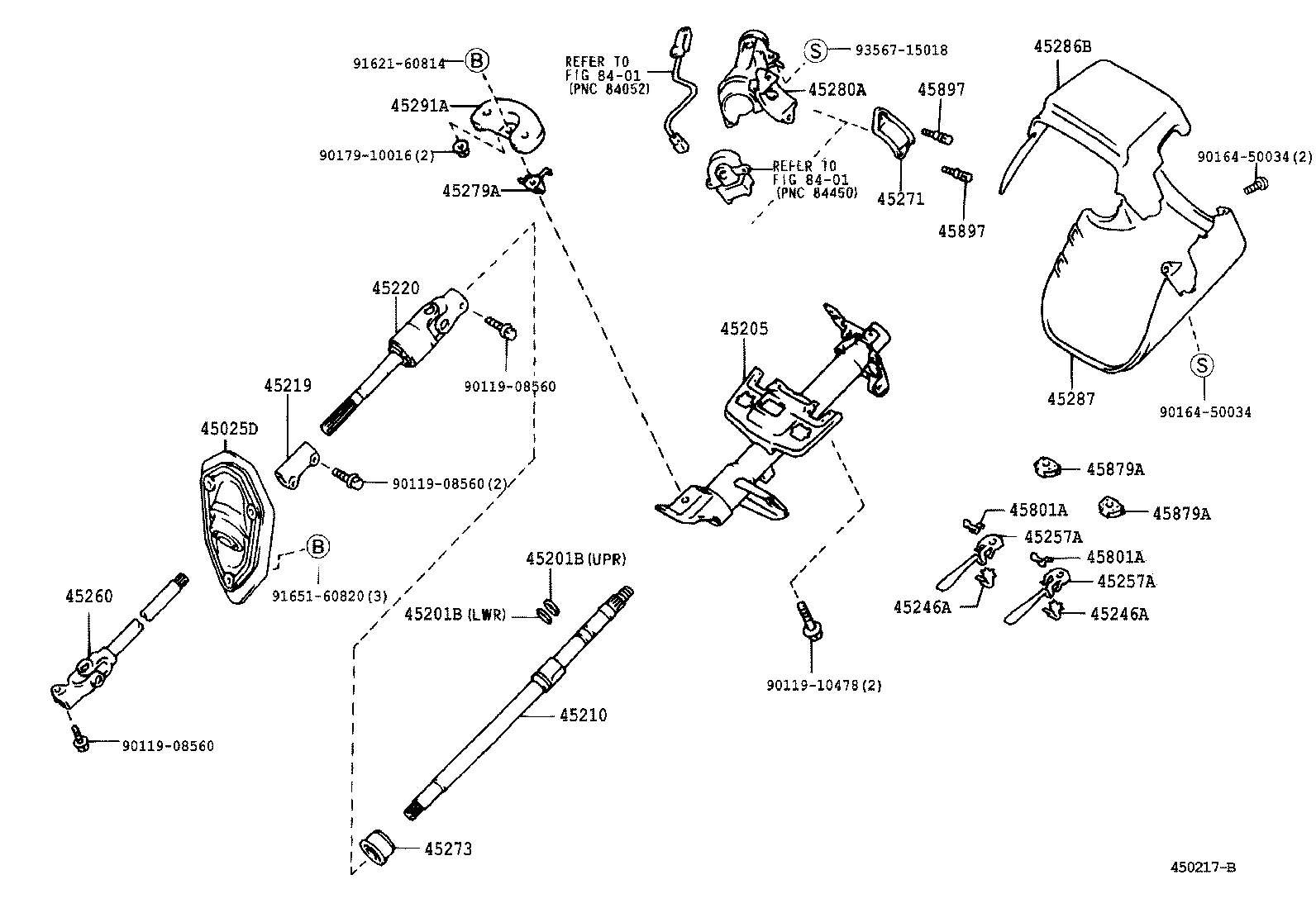

(9611-9812)B,D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,上側 |
1 | ||
| 90520-17042 |
CR4#,5#,KR4#,SR40,50 厚さ=1.20,下側 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28180 |
CR4#,5#,KR42,SR40,50..ATM..(E,N,Q,V) |
1 | ||
| 45205-28160 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D) |
1 | ||
| 45205-28161 |
CR4#,5#,KR4#,SR40,50..ATM..(B,D) |
1 | ||
| 45205-28181 |
CR4#,5#,KR42,SR40,50..ATM..(E,N,Q,V) |
1 | ||
| 45205-28181 |
CR4#,5#,KR42,SR40,50..(05S,07S,08S)..ATM |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28110 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-28040 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28040 |
CR4#,KR4#,SR40 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-44010 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28220 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28280B0 |
CR40,50..MTM..E;CR40,50,SR40,50..ATM..D;CR41,51,KR4#,SR40..(03S,05S,06S)..MTM MD.MOON MIST,TRIM1# |
1 | ||
| 45286-28290B0 |
CR41,51,KR4#..ATM;CR40,50,SR40..MTM..D;CR40,50,SR40,50..ATM..(B,E,Q,V) MD.MOON MIST,TRIM1# |
1 | ||
| 45286-28290B0 |
CR4#,5#,KR4#,SR40,50..ATM MD.MOON MIST,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28360B0 |
CR4#,5#,KR4#,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 45287-28370B0 |
CR4#,5#,KR42,SR40,50..E,N,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 45287-28370B0 |
CR4#,5#,KR42,SR40,50..05S,07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-50010 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50034 | ||||
| 90179-10016 | ||||
| 91621-60814 | ||||
| 91651-60820 | ||||
| 93567-15018 | ||||
| Linked diagrams | ||||
| 8401 | ||||
