CR40G-GRSVX (1996)
Toyota Lite/Townace Noah,V

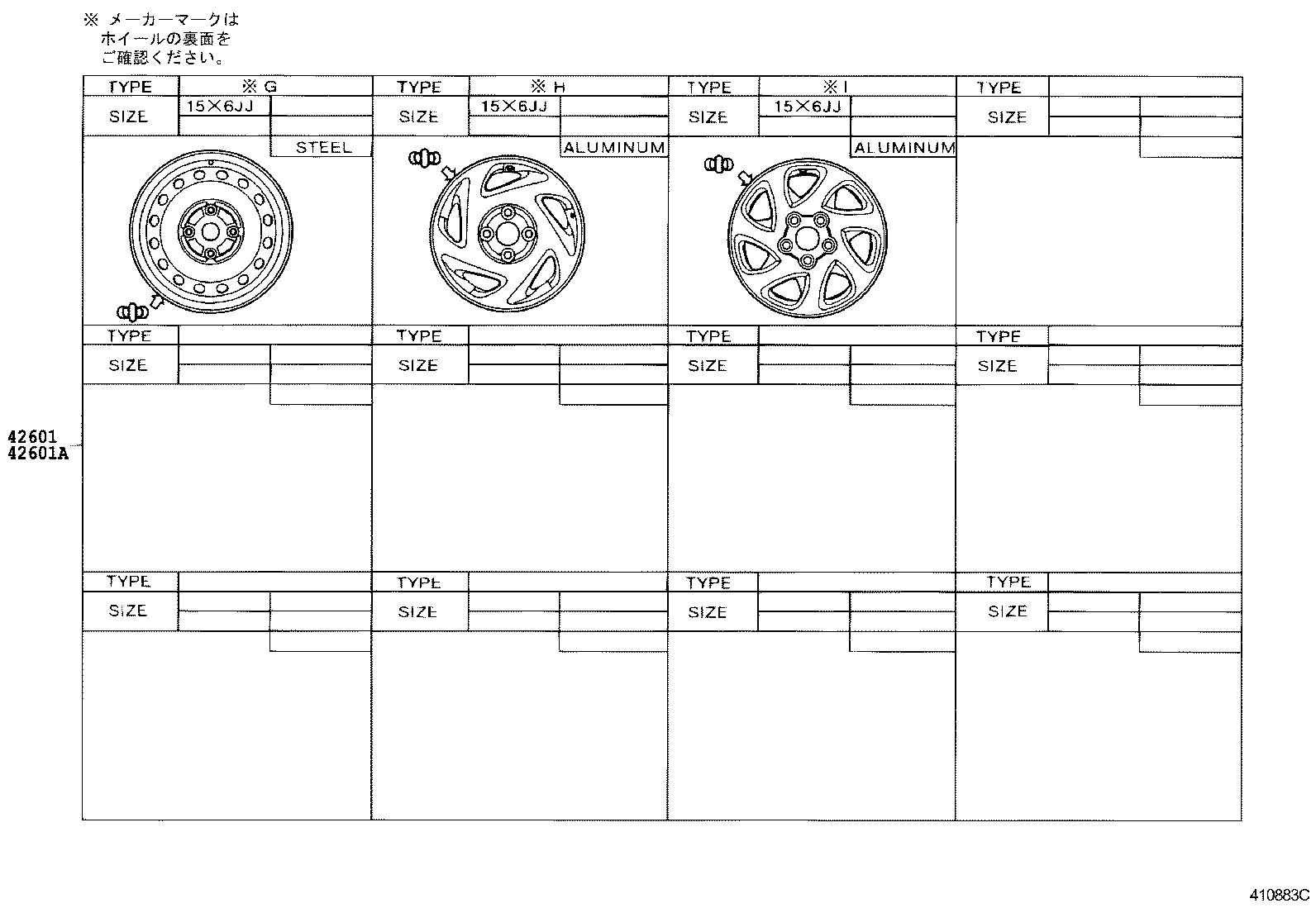

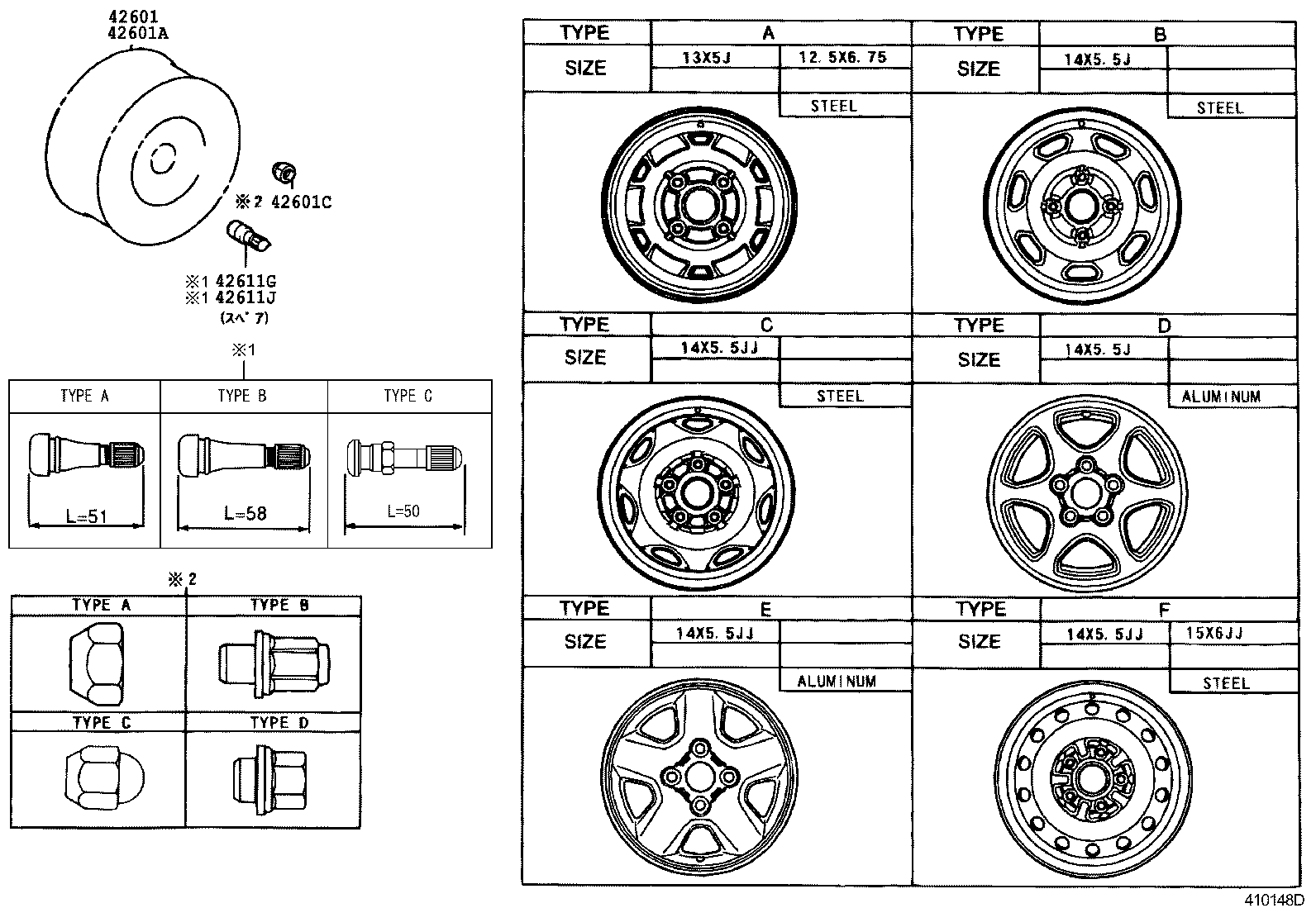

ILLUST NO. 1 OF 6(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-28380 |
CR40,SR40..E,Q,V 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2832003 |
CR41,KR4#..V1;CR40,SR40..B,D 13X5J,SILVER M,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2830001 |
CR40,SR40..E,Q,V 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42611-28390 |
CR40,SR40..E,Q,V 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-28390 |
CR40,SR40..07S,08S 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2830001 |
CR40,SR40..07S,08S 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-2832003 |
CR4#,KR4#,SR40..B,D,N 13X5J,SILVER M,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42611-2830001 |
CR40,SR40..07S,08S 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42611-2830001 |
CR40,SR40..E,Q,V 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
CR40,SR40..E,Q,V TYPE A:ｲﾗｽﾄ参照 |
16 | ||
| 90942-01007 |
CR40,SR40..07S,08S TYPE A:ｲﾗｽﾄ参照 |
16 | ||
| 90942-01059 |
CR4#,KR4#,SR40..B,D,N TYPE A:ｲﾗｽﾄ参照 |
16 | ||
| 90942-01058 |
CR40,SR40..E,Q,V TYPE B:ｲﾗｽﾄ参照 |
16 | ||
| 90942-01058 |
CR40,SR40..07S,08S TYPE B:ｲﾗｽﾄ参照 |
16 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
CR40,SR40;CR41,KR4#..V1;CR50,SR50..E,Q,V TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 90942-05004 |
CR4#,5#,KR4#,SR40,50 TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90942-05009 |
CR41,KR4#..V1;CR40,50,SR40,50 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 90942-05009 |
CR40,50,SR40;SR50..07S,08S;CR41,KR4#..V1 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
CR41,KR4#..V1;CR40,50,SR40,50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90942-05004 |
CR4#,5#,KR4#,SR40,50 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90942-05009 |
CR40,SR40;CR41,KR4#..V1;CR50,SR50..E,Q,V TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90942-05009 |
CR40,50,SR40;SR50..07S,08S;CR41,KR4#..V1 TYPE A:ｲﾗｽﾄ参照 |
1 | ||

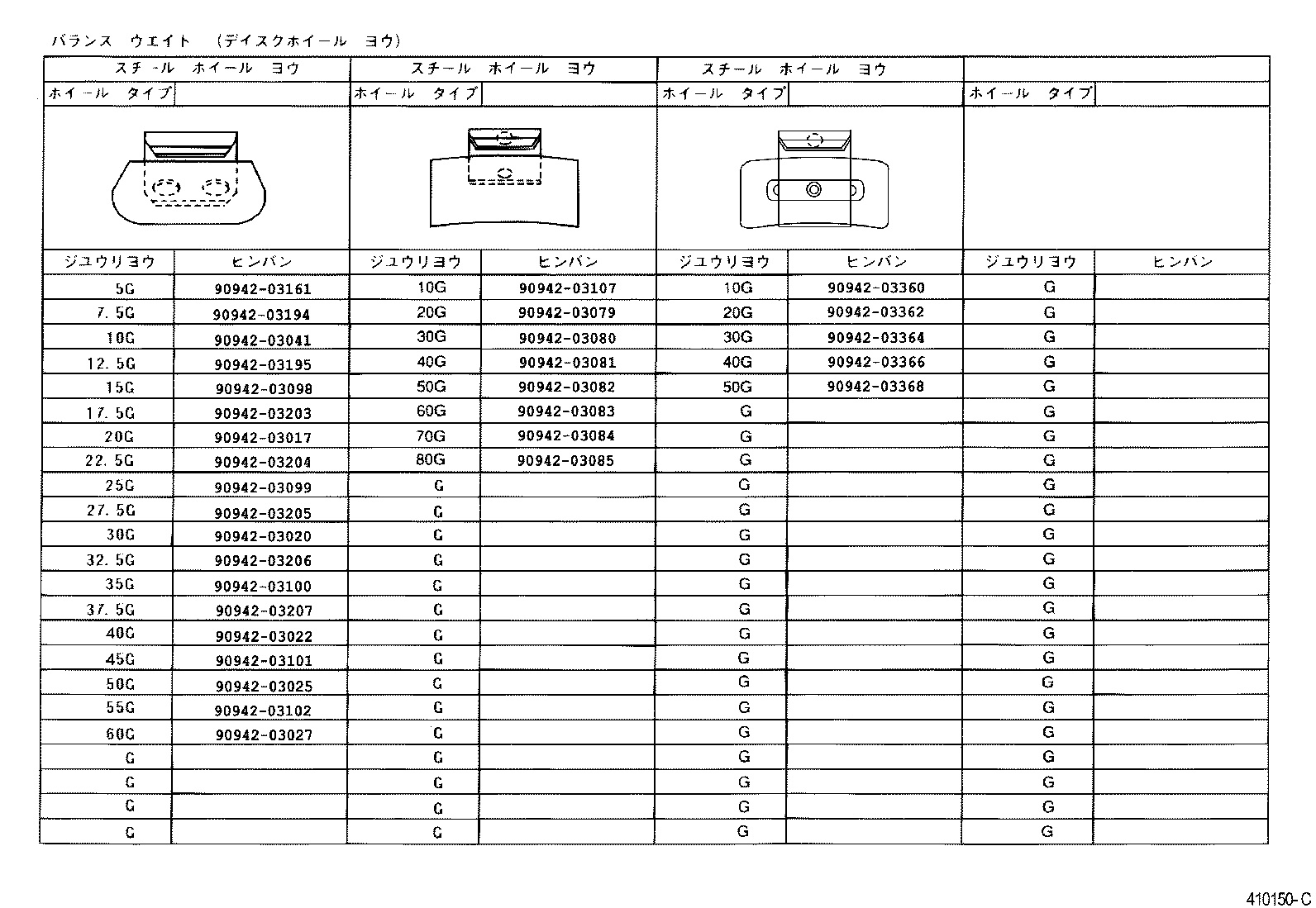

ILLUST NO. 4 OF 6(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03041 | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03102 | ||||
| 90942-03107 | ||||
| 90942-03161 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03360 | ||||
| 90942-03362 | ||||
| 90942-03364 | ||||
| 90942-03366 | ||||
| 90942-03368 | ||||
ILLUST NO. 3 OF 6(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

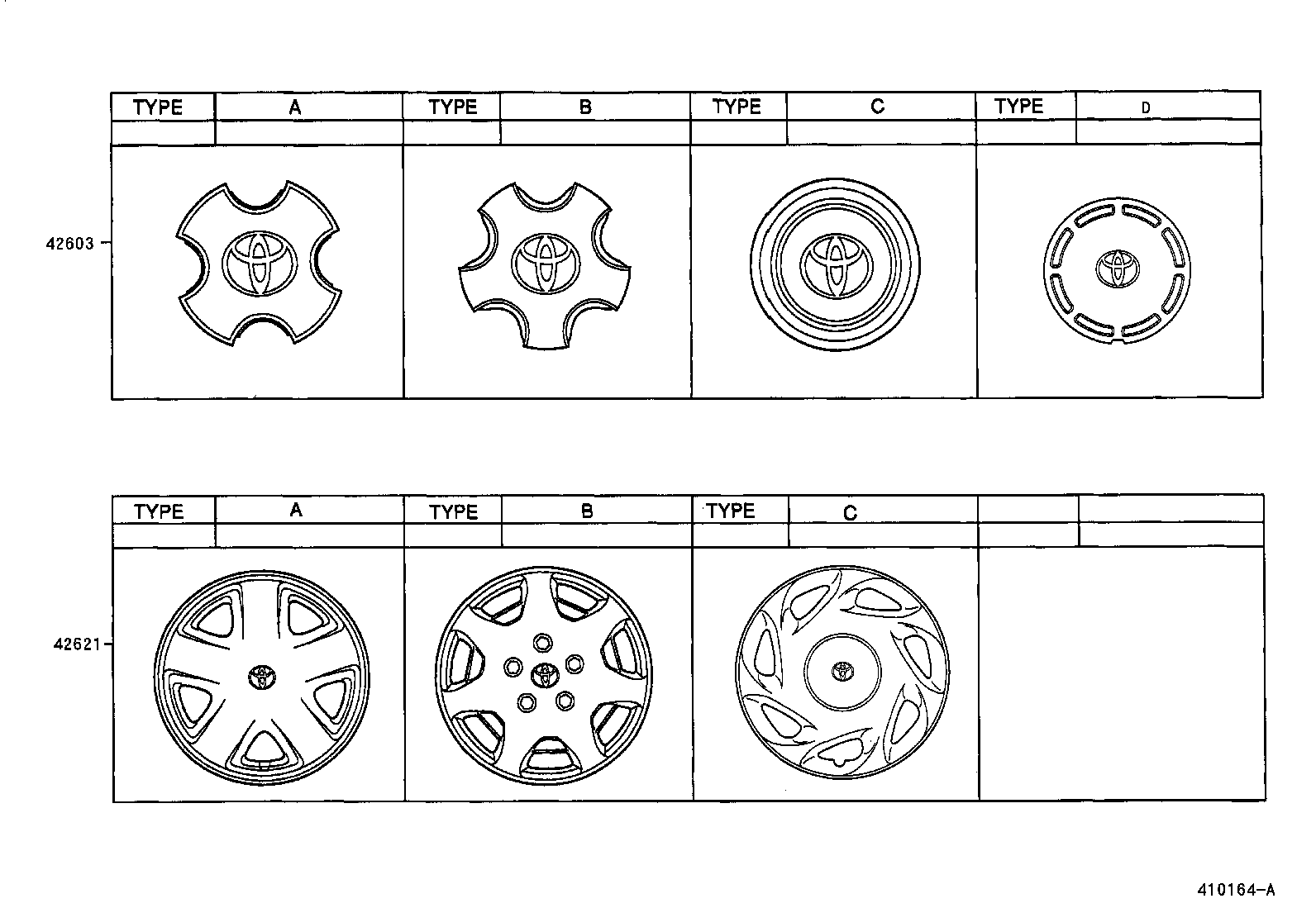

| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-28260 |
CR40,SR40..07S,08S TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42603-28260 |
CR40,SR40..E,Q,V TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42638-28020 |
CR4#,KR4#,SR40..B,D,N *STE,TYPE C:ｲﾗｽﾄ参照 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-28200 |
CR40,SR40..E,Q,V TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42602-28200 |
CR40,SR40..07S,08S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||

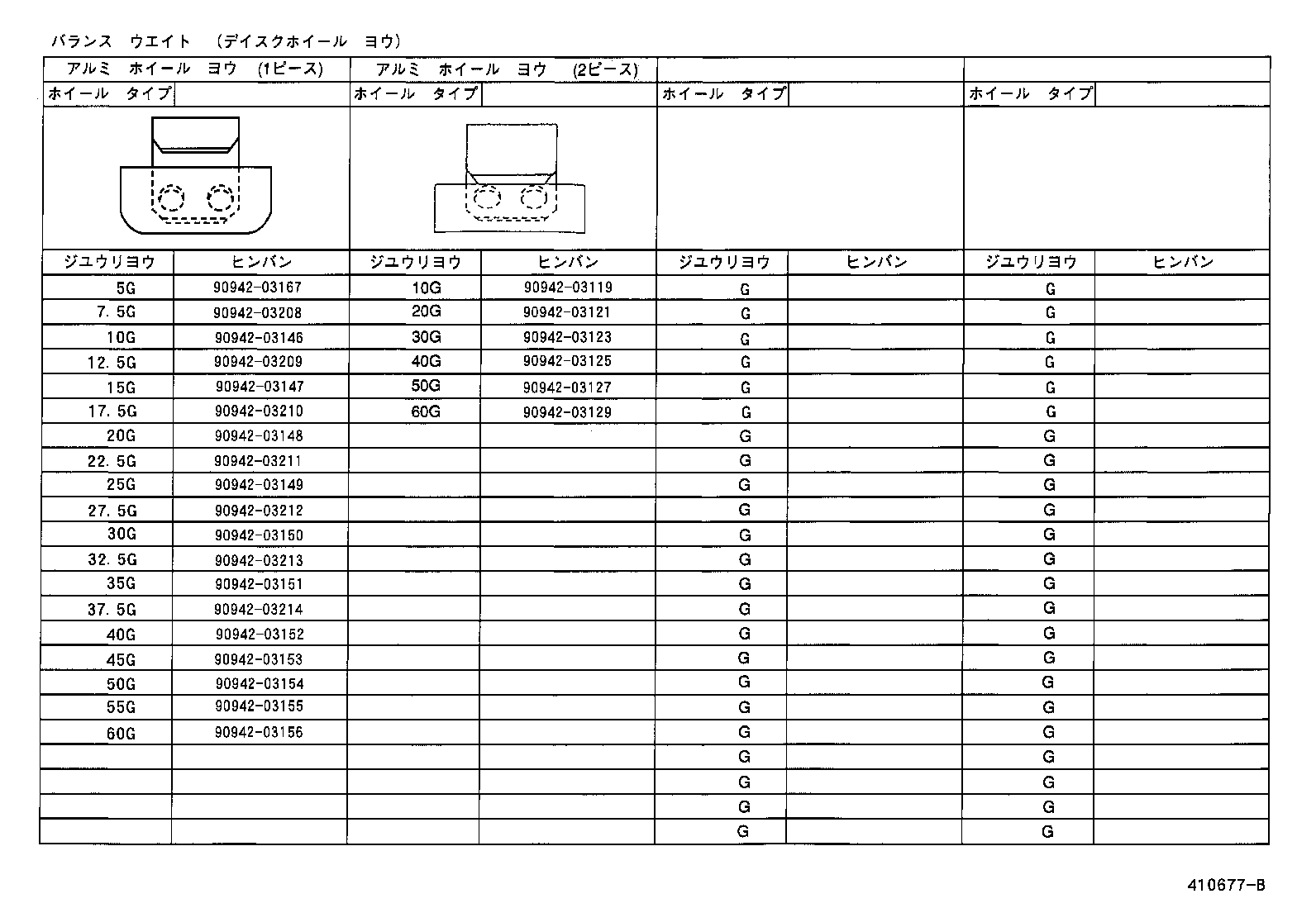

ILLUST NO. 5 OF 6(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03119 | ||||
| 90942-03121 | ||||
| 90942-03123 | ||||
| 90942-03125 | ||||
| 90942-03127 | ||||
| 90942-03129 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
ILLUST NO. 2 OF 6(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-28380 |
CR40,SR40..E,Q,V 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2832003 |
CR41,KR4#..V1;CR40,SR40..B,D 13X5J,SILVER M,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2830001 |
CR40,SR40..E,Q,V 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42611-28390 |
CR40,SR40..E,Q,V 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-28390 |
CR40,SR40..07S,08S 14X5.5JJ,TYPE E:ｲﾗｽﾄ参照 |
4 | ||
| 42611-2830001 |
CR40,SR40..07S,08S 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-2832003 |
CR4#,KR4#,SR40..B,D,N 13X5J,SILVER M,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42611-2830001 |
CR40,SR40..07S,08S 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42611-2830001 |
CR40,SR40..E,Q,V 14X5.5JJ,BLACK,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
ILLUST NO. 6 OF 6(9610- )
| Part # | Description | Qty | Price |
|---|
