CR40G-GRSVX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )2C,3CT#,3CE

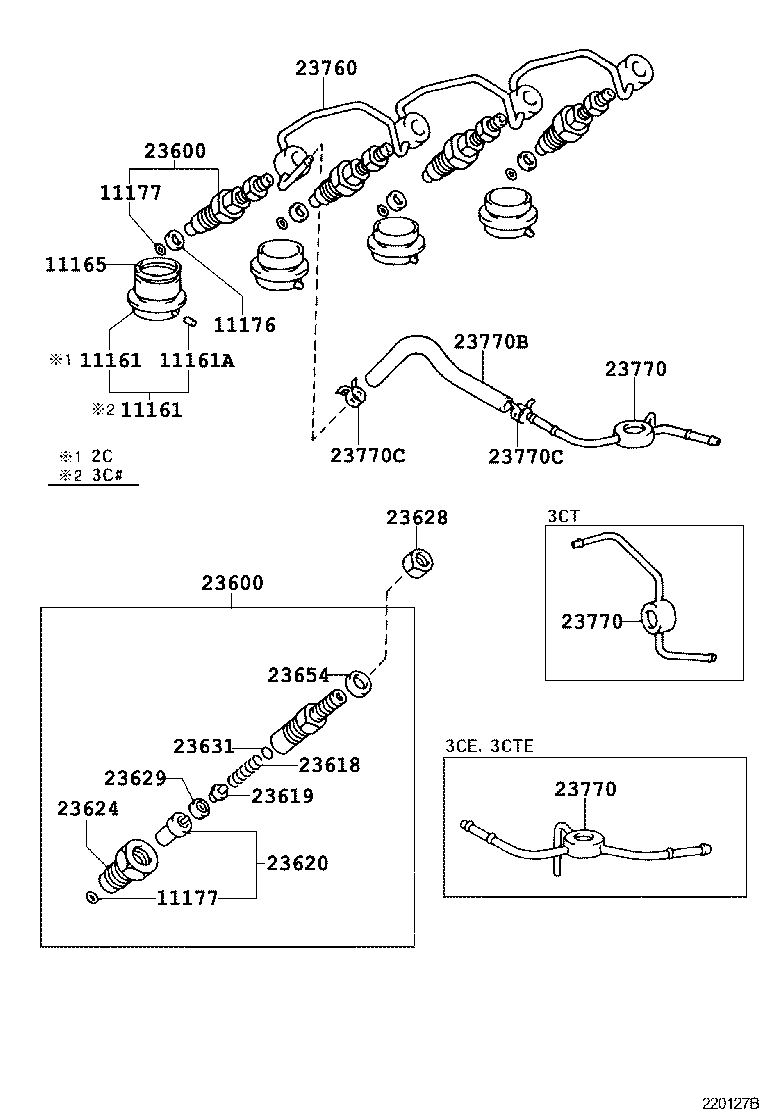

Click highlighted areas on diagram

diagram 11161 11161 11161A 11165 11176 11177 11177 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770 23770 23770 23770B 23770C 23770C
Part # Description Qty Price
11161 - CHAMBER, COMBUSTION
11106-64111

3CT..CR40,50

 4
11106-64110

3CT..CR40,50

 4
11161 - CHAMBER, COMBUSTION
11106-64111

3CT..CR40,50

 4
11106-64110

3CT..CR40,50

 4
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

2C,3CT..CR4#,5#

 4
11165 - SHIM(FOR COMBUSTION CHAMBER)
11166-64020

3CT..CR40,50

厚さ=0.10

 4
11165-64021

3CT..CR40,50

厚さ=0.05

 4
11165-64020

3CT..CR40,50

厚さ=0.05

 4
11166-64021

3CT..CR40,50

厚さ=0.10

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

2C,3CT..CR4#,5#

 4
11176-64020

2C,3CT..CR4#,5#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

2C,3CT..CR4#,5#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

2C,3CT..CR4#,5#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-19025

3CT..CR40,50

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-19025

3CT..CR40,50

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54730

3CT..CR40,50

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

2C,3CT..CR4#,5#

 4
23620 - NOZZLE ASSY
23620-69045

2C,3CT..CR4#,5#

 4
23624 - NUT, NOZZLE RETAINING
23624-64041

2C,3CT..CR4#,5#

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

2C,3CT..CR4#,5#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

3CT..CR40,50

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64010

2C,3CT..CR4#,5#

厚さ=0.900

 4
23631-64013

2C,3CT..CR4#,5#

厚さ=0.975

 4
23631-64018

2C,3CT..CR4#,5#

厚さ=1.100

 4
23631-64019

2C,3CT..CR4#,5#

厚さ=1.125

 4
23631-64011

2C,3CT..CR4#,5#

厚さ=0.925

 4
23631-64014

2C,3CT..CR4#,5#

厚さ=1.000

 4
23631-64017

2C,3CT..CR4#,5#

厚さ=1.075

 4
23632-64013

2C,3CT..CR4#,5#

厚さ=1.225

 4
23632-64011

2C,3CT..CR4#,5#

厚さ=1.175

 4
23631-64012

2C,3CT..CR4#,5#

厚さ=0.950

 4
23631-64015

2C,3CT..CR4#,5#

厚さ=1.025

 4
23632-64012

2C,3CT..CR4#,5#

厚さ=1.200

 4
23632-64017

2C,3CT..CR4#,5#

厚さ=1.325

 4
23632-64010

2C,3CT..CR4#,5#

厚さ=1.150

 4
23632-64016

2C,3CT..CR4#,5#

厚さ=1.300

 4
23631-64016

2C,3CT..CR4#,5#

厚さ=1.050

 4
23633-64015

2C,3CT..CR4#,5#

厚さ=1.525

 4
23632-64019

2C,3CT..CR4#,5#

厚さ=1.375

 4
23633-64010

2C,3CT..CR4#,5#

厚さ=1.400

 4
23633-64014

2C,3CT..CR4#,5#

厚さ=1.500

 4
23633-64017

2C,3CT..CR4#,5#

厚さ=1.575

 4
23633-64016

2C,3CT..CR4#,5#

厚さ=1.550

 4
23634-64014

2C,3CT..CR4#,5#

厚さ=1.750

 4
23633-64012

2C,3CT..CR4#,5#

厚さ=1.450

 4
23632-64015

2C,3CT..CR4#,5#

厚さ=1.275

 4
23634-64018

2C,3CT..CR4#,5#

厚さ=1.850

 4
23634-64010

2C,3CT..CR4#,5#

厚さ=1.650

 4
23632-64018

2C,3CT..CR4#,5#

厚さ=1.350

 4
23632-64014

2C,3CT..CR4#,5#

厚さ=1.250

 4
23633-64011

2C,3CT..CR4#,5#

厚さ=1.425

 4
23634-64015

2C,3CT..CR4#,5#

厚さ=1.775

 4
23635-64010

2C,3CT..CR4#,5#

厚さ=1.900

 4
23633-64018

2C,3CT..CR4#,5#

厚さ=1.600

 4
23635-64011

2C,3CT..CR4#,5#

厚さ=1.925

 4
23634-64016

2C,3CT..CR4#,5#

厚さ=1.800

 4
23633-64019

2C,3CT..CR4#,5#

厚さ=1.625

 4
23633-64013

2C,3CT..CR4#,5#

厚さ=1.475

 4
23635-64012

2C,3CT..CR4#,5#

厚さ=1.950

 4
23634-64017

2C,3CT..CR4#,5#

厚さ=1.825

 4
23634-64011

2C,3CT..CR4#,5#

厚さ=1.675

 4
23634-64013

2C,3CT..CR4#,5#

厚さ=1.725

 4
23634-64012

2C,3CT..CR4#,5#

厚さ=1.700

 4
23634-64019

2C,3CT..CR4#,5#

厚さ=1.875

 4
23654 - WASHER(FOR RING PACKING)
23654-64010

2C,3CT..CR4#,5#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-64050

2C,3CT..CR4#,5#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-64050

3CT..CR40,50

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-64050

3CT..CR40,50

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23764-64050

3CT..CR40,50

 1
23770B - HOSE, FUEL
95333-04010

2C,3CT..CR4#,5#

*H,L=100

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90467-10049

2C,3CT..CR4#,5#

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90467-10049

2C,3CT..CR4#,5#

 2
