CR40G-GRSVX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )2C,3CT#,3CE

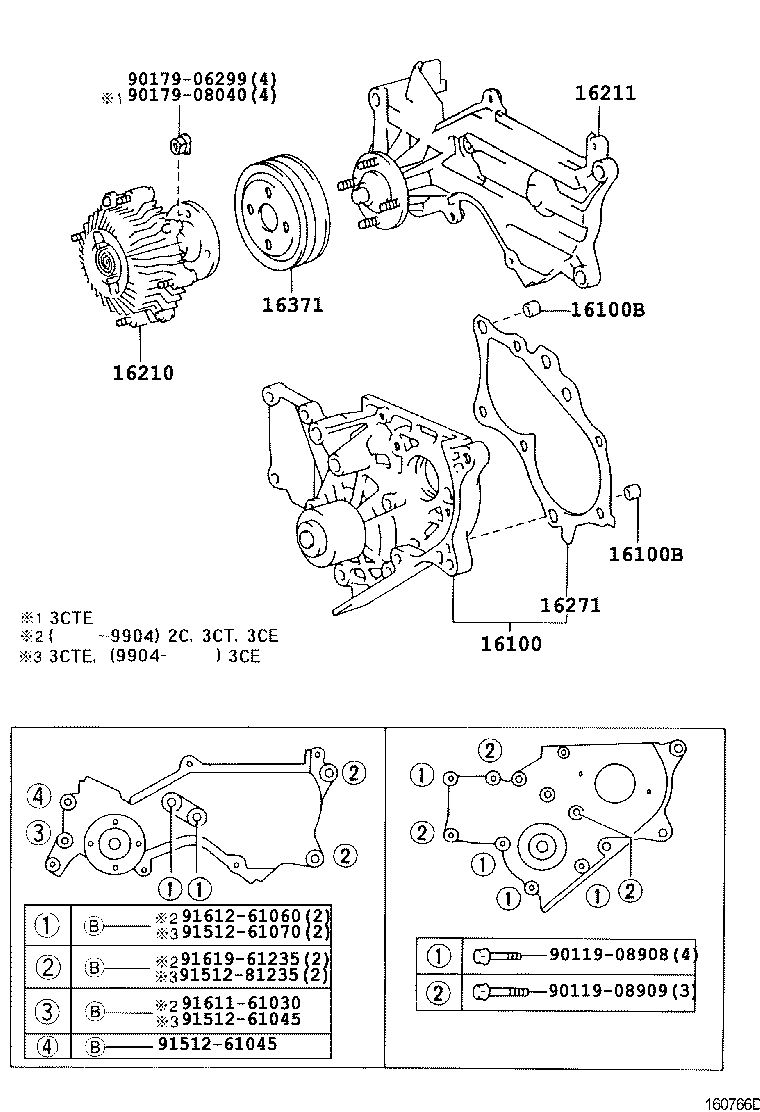

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16210 16211 16271 16371 9011908908 9011908909 9017906299 9017908040 9151261045 9151261045 9151261070 9151281235 9161161030 9161261060 9161961235
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69295

2C,3CT..CR4#,5#

 1
16100-69296

2C,3CT..CR4#,5#

 1
16100-69435

2C,3CT..CR4#,5#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

2C,3CT..CR4#,5#

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

2C,3CT..CR4#,5#

 2
16210 - COUPLING ASSY, FLUID
16210-64020

2C,3CT..CR4#,5#

 1
16211 - BRACKET, FLUID COUPLING
16307-64021

2C,3CT..CR4#,5#

 1
16271 - GASKET, WATER PUMP
16271-64031

2C,3CT..CR4#,5#

 1
16271-64030

2C,3CT..CR4#,5#

 1
16371 - PULLEY, FAN
16371-64050

2C,3CT..CR4#,5#

 1
Common parts
90119-08908
90119-08909
90179-06299
90179-08040
91512-61045
91512-61070
91512-81235
91611-61030
91612-61060
91619-61235
