CR40G-GRSVT (1998)
Toyota Lite/Townace Noah,V

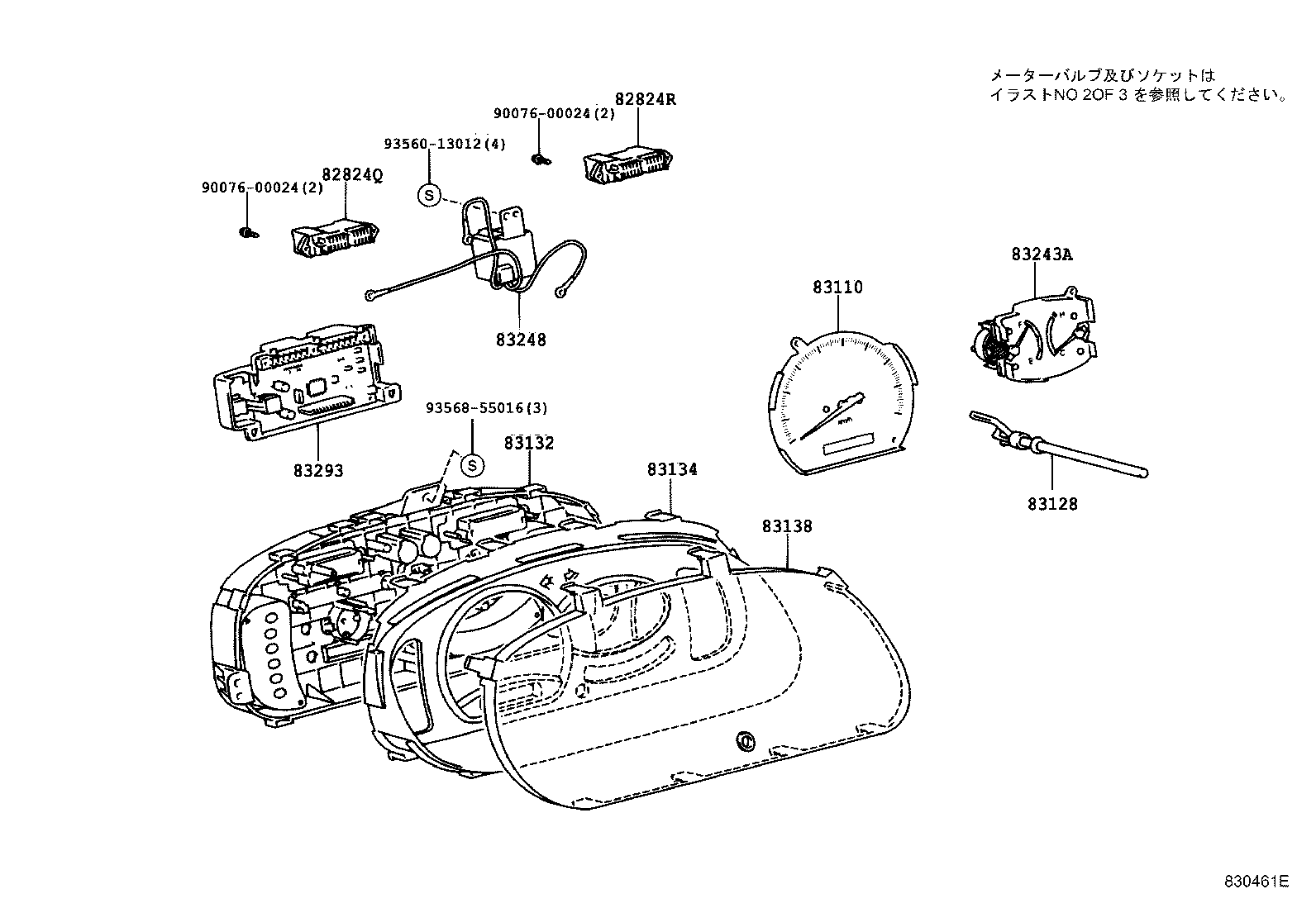

ILLUST NO. 1 OF 3(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER) | ||||
| 82824-28130 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER) | ||||
| 82824-28150 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28120 |
CR40,50,SR40,50..V YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28430 |
CR40..E,Q,S,V |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28100 |
CR40,50,SR40,50..V |
1 | ||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28020 |
CR40,50..E,Q,V |
1 | ||
| 83293-28090 |
CR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90076-00024 | ||||
| 93560-13012 | ||||
| 93568-55016 | ||||

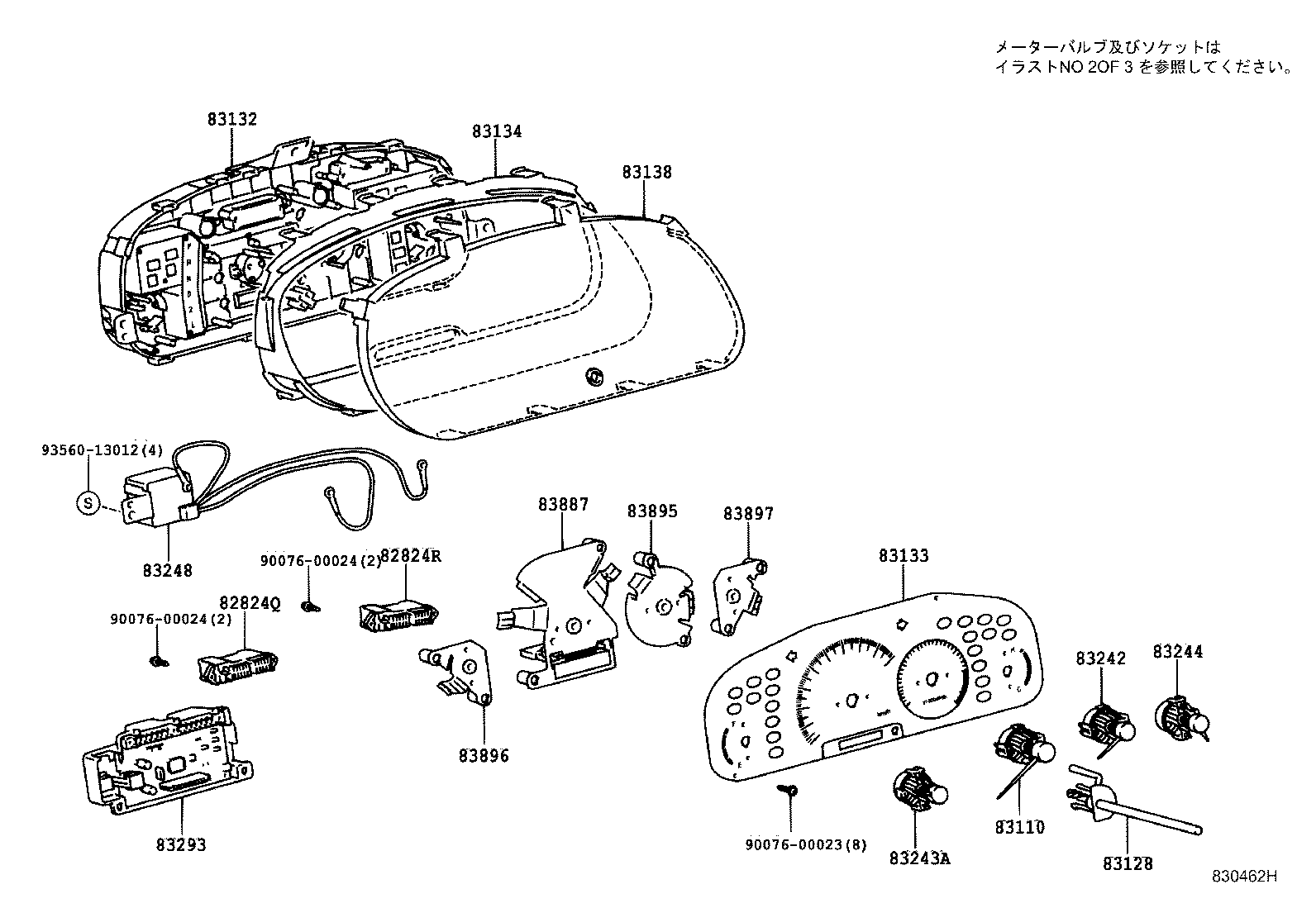

ILLUST NO. 1 OF 3(9812- )
ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER) | ||||
| 82824-28130 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER) | ||||
| 82824-28150 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-28060 |
CR40,50,SR40,50..E,Q YAZAKI |
1 | ||
| 83220-28120 |
CR40,50,SR40,50..V YAZAKI |
1 | ||
| 83221-28490 |
CR40,50,SR40,50..S YAZAKI |
1 | ||
| 83221-28410 |
CR40,50,SR40,50..E,Q,V YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83224-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83224-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-28430 |
CR40..E,Q,S,V |
1 | ||
| 83841-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-28510 |
CR40,50..S |
1 | ||
| 83811-28470 |
CR40,50..V |
1 | ||
| 83811-28430 |
CR40,50..E,Q |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28530 |
CR4#,5#,KR42,52,SR40,50..ATM..(B,D,N) |
1 | ||
| 83851-28080 |
CR40,50,SR40,50..ATM..(E,Q,V) |
1 | ||
| 83821-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-28080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83852-28410 |
CR4#,5#,KR42,52,SR40,50 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-28080 |
CR40,50..E,Q |
1 | ||
| 83881-28110 |
CR40,50..V |
1 | ||
| 83881-28510 |
CR40,50..S |
1 | ||
| 83881-28430 |
CR40,50..E,Q,V |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-28100 |
CR40,50,SR40,50..V |
1 | ||
| 83882-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83882-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83882-28530 |
CR4#,5#,KR42,52,SR40,50..B,D,N |
1 | ||
| 83882-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-28080 |
CR40,50,SR40,50..E,Q |
1 | ||
| 83883-28100 |
CR40,50,SR40,50..V |
1 | ||
| 83883-28490 |
CR40,50,SR40,50..S |
1 | ||
| 83883-28410 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650-12030 |
CR40,50,SR40,50..B,D |
1 | ||
| 86650-12030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-28020 |
CR40,50..E,Q,V |
1 | ||
| 83293-28090 |
CR40,50..E,Q,S,V |
1 | ||
| 83887 - PLATE, COMBINATION METER PRISM, NO.1 | ||||
| 83887-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83895 - PLATE, COMBINATION METER PRISM, NO.2 | ||||
| 83895-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83896 - PLATE, COMBINATION METER PRISM, NO.3 | ||||
| 83896-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 83897 - PLATE, COMBINATION METER PRISM, NO.4 | ||||
| 83897-28410 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90076-00023 | ||||
| 90076-00024 | ||||
| 93560-13012 | ||||

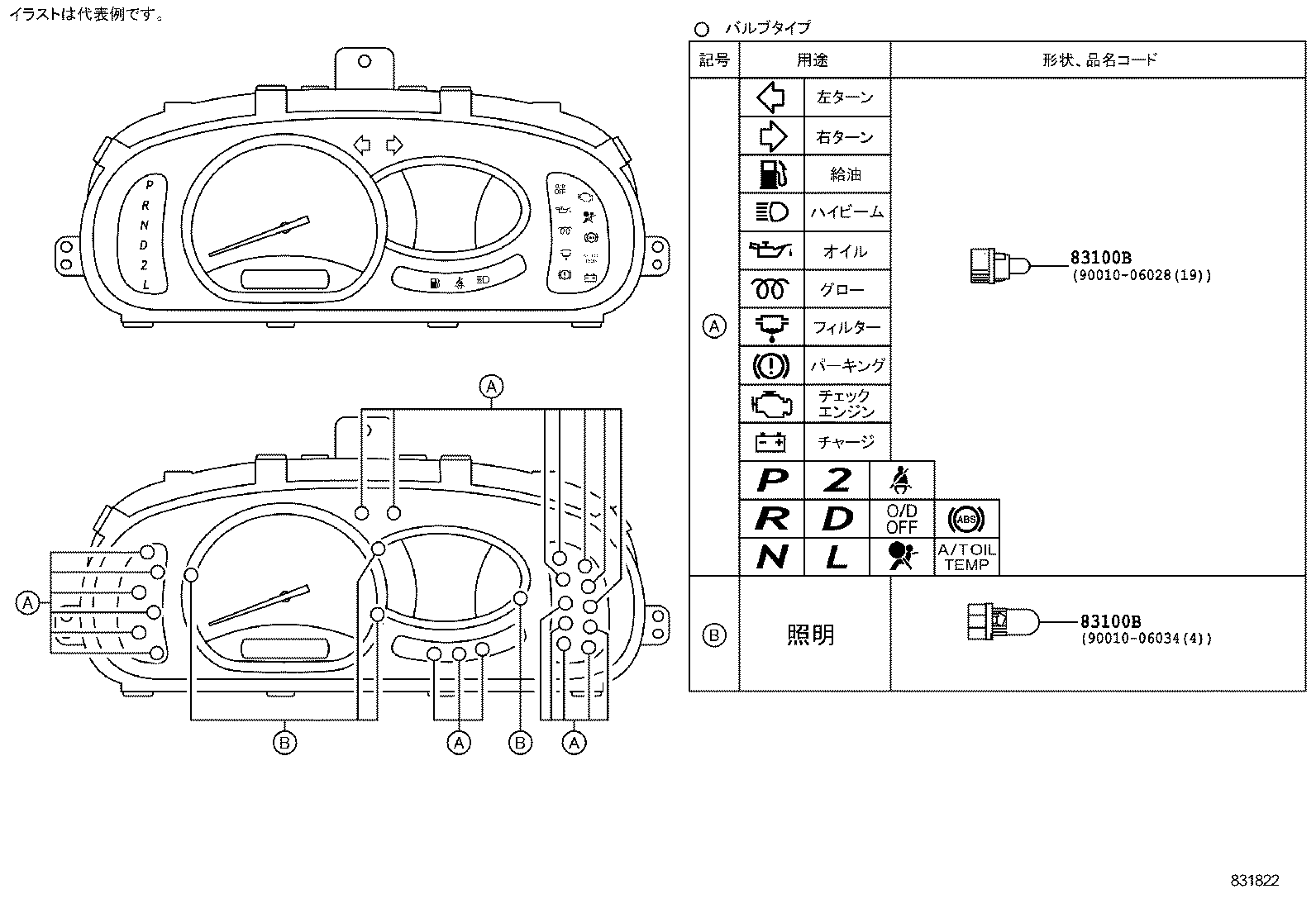

ILLUST NO. 2 OF 3(9812- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||

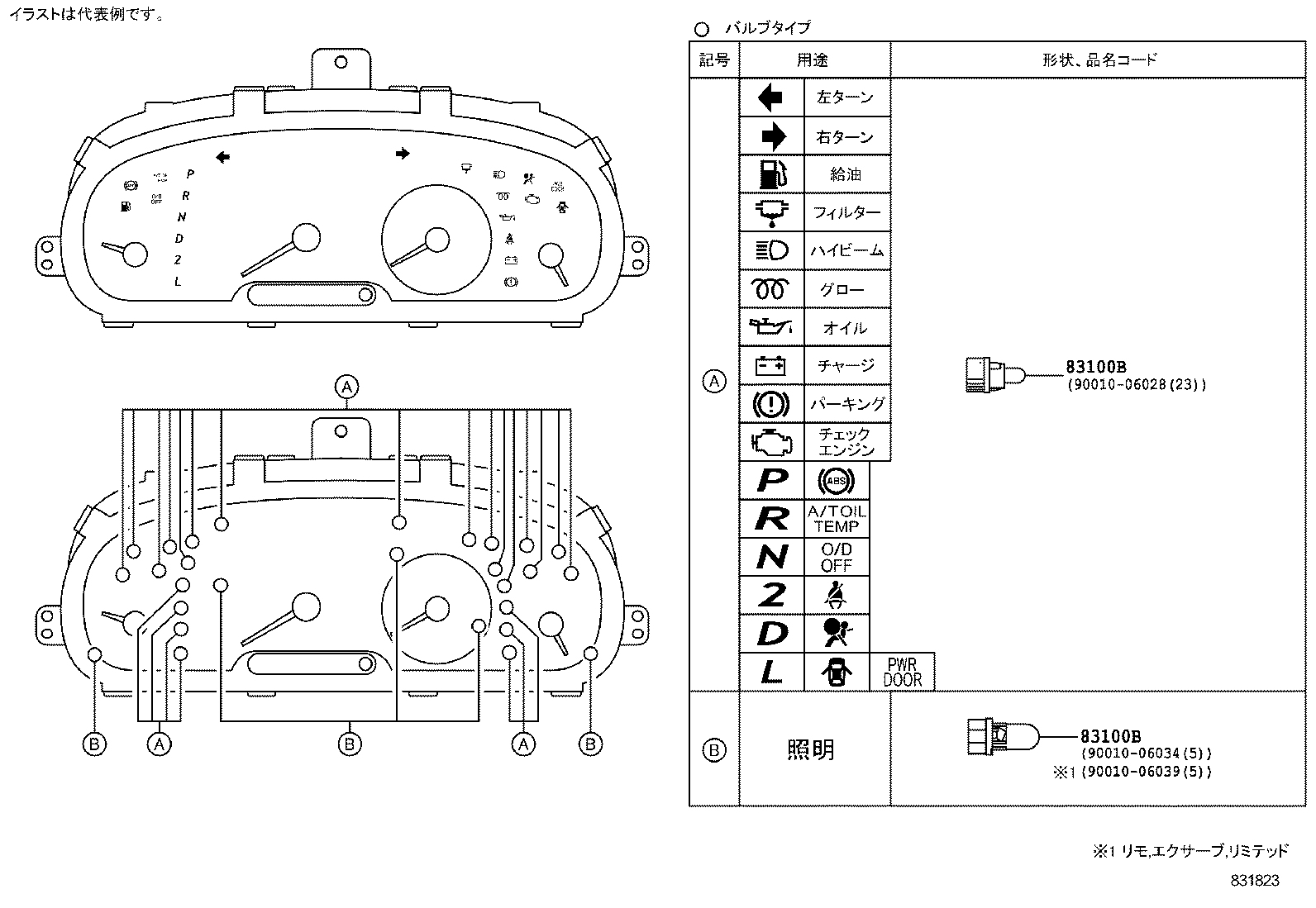

ILLUST NO. 2 OF 3(9812- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
CR4#,5#,KR4#,SR40,50 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
CR40,50,SR40,50..E,Q,V 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90010-06028 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 12V 1.12W,ｿｹｯﾄ付き |
1 | ||
| 83120-60020 |
CR40..ATM..(E,Q,V);CR5#,SR40..ATM..(B,D,N) 12V 1.4W,ｿｹｯﾄ付き |
19 | ||
| 90010-06034 |
CR4#,5#,SR50;SR40..E,Q,S,V;KR42,52,SR40..MTM 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
