CR40G-GRSVT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812-0111)CR40,50 ; (9812-0111)SR40,50..E..CBU

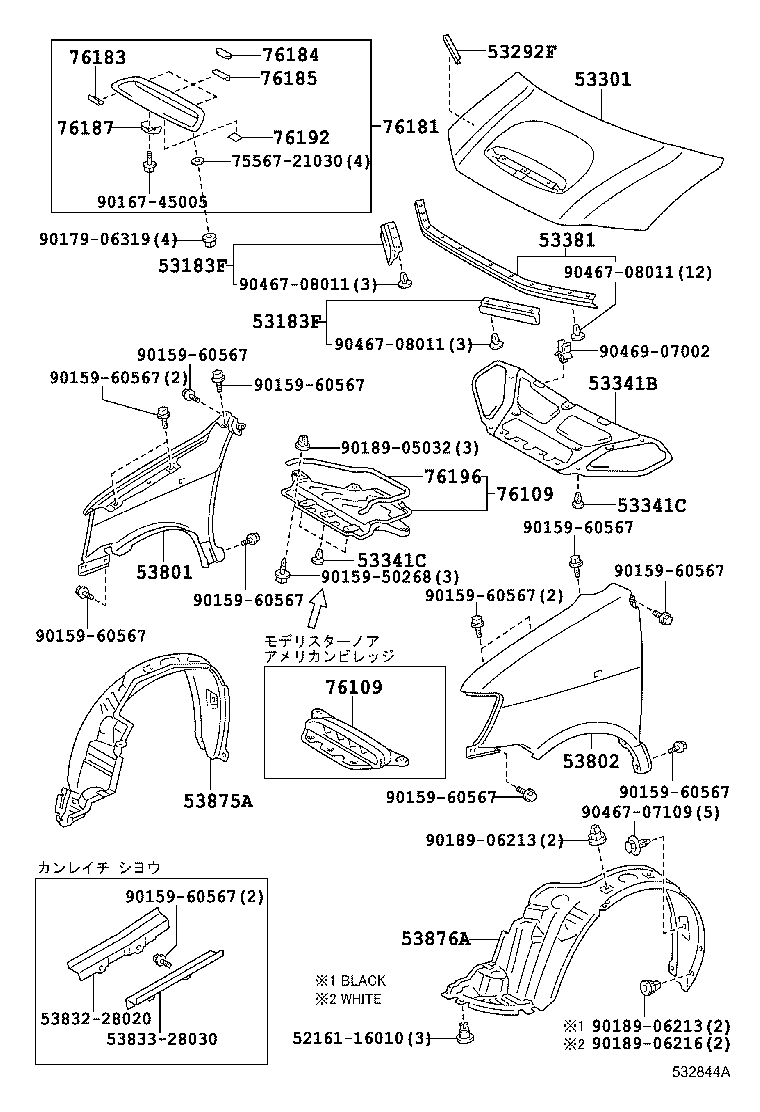

Click highlighted areas on diagram

diagram 5216116010 53183F 53183F 53292F 53301 53341B 53341C 53341C 53381 53801 53802 5383228020 5383328030 53875A 53876A 7556721030 76109 76109 76181 76183 76184 76185 76187 76192 76196 9015950268 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9015960567 9016745005 9017906319 9018905032 9018906213 9018906213 9018906216 9046707109 9046708011 9046708011 9046708011 9046907002
Part # Description Qty Price
53183F - SEAL, HEADLAMP COVER TO HOOD
53184-28020

CR4#,5#,KR4#,SR40,50

左側

 1
53183-28050

CR4#,5#,KR4#,SR40,50

右側

 1
53183-28050

CR40,50,SR40,50

右側

 1
53184-28020

CR40,50,SR40,50

左側

 1
53183F - SEAL, HEADLAMP COVER TO HOOD
53184-28020

CR4#,5#,KR4#,SR40,50

左側

 1
53183-28050

CR4#,5#,KR4#,SR40,50

右側

 1
53183-28050

CR40,50,SR40,50

右側

 1
53184-28020

CR40,50,SR40,50

左側

 1
53292F - SEAL, RADIATOR SUPPORT, UPPER
53292-28010

CR40,50,SR40,50

 1
53292-28010

CR4#,5#,KR4#,SR40,50

 1
53301 - HOOD SUB-ASSY
53301-28060

CR40,50

 1
53301-28050

CR4#,5#,KR4#,SR40,50

 1
53341B - INSULATOR, HOOD
53341-28020

CR40,50

 1
53341-28010

CR40,50..ATM

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09032C0

CR40,50..ATM..(E,Q)

BLACK,TRIM1#,6#

 5
90467-09032C0

CR40,50..D,S

BLACK,056 ,1C0

 8
90467-09032C0

CR40,50..ATM..(D,V)

BLACK,TRIM1#

 5
90467-09032C0

CR40,50..E,Q

BLACK,056 ,1C0 ,2EM ,2EN ,2EU ,4N9

 8
90467-09032C0

CR40,50..V

BLACK,1C0 ,2ES ,2ET ,2EU

 8
90467-09032C0

CR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),BLACK,1C1

 8
53341C - CLIP(FOR HOOD INSULATOR)
90467-09032C0

CR40,50..ATM..(E,Q)

BLACK,TRIM1#,6#

 5
90467-09032C0

CR40,50..D,S

BLACK,056 ,1C0

 8
90467-09032C0

CR40,50..ATM..(D,V)

BLACK,TRIM1#

 5
90467-09032C0

CR40,50..E,Q

BLACK,056 ,1C0 ,2EM ,2EN ,2EU ,4N9

 8
90467-09032C0

CR40,50..V

BLACK,1C0 ,2ES ,2ET ,2EU

 8
90467-09032C0

CR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),BLACK,1C1

 8
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-28020

CR40,50,SR40,50

 1
53381-28020

CR4#,5#,KR4#,SR40,50

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-28030

CR4#,5#,KR4#,SR40,50

 1
53811-28030

CR4#,5#,KR42,52,SR40,50

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-28030

CR4#,5#,KR4#,SR40,50

 1
53875A - LINER, FRONT FENDER, RH
53875-28050

CR40,50,SR40,50

 1
53875-28030

CR4#,5#,KR4#,SR40,50

 1
53876A - LINER, FRONT FENDER, LH
53876-28060

CR40,50,SR40,50

 1
53876-28040

CR4#,5#,KR4#,SR40,50

 1
76109 - GUIDE SUB-ASSY, HOOD AIR INTAKE
76109-28010

CR40,50

 1
76109 - GUIDE SUB-ASSY, HOOD AIR INTAKE
76109-28010

CR40,50

 1
76181 - BULGE, HOOD
76181-28010C0

CR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),BLACK ME.,2GE

 1
76181-28010B1

CR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1

 1
76181-28010B0

CR40,50

SILVER ME.,1C0

 1
76181-28010B1

CR40,50..E,Q

CRYSTAL SIL PEL ME.,2EM

 1
76181-28010G0

CR40,50..E,Q

DK.GREEN MC.,2EN

 1
76181-28010F0

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),CHAMPAGNE ME.,583

 1
76181-28010J0

CR40,50..E,Q,V

DK.BLUE M.M.,2EU

 1
76181-28010K0

CR40,50..V

PURPLE ME.OP.,2ET

 1
76181-28010E0

CR40,50..E,Q

BEIGE M.M.OP.,4N9

 1
76181-28010A0

CR40,50..D,E,Q,S

WHITE,056

 1
76181-28010D0

CR40,50..V

RED,2ES

 1
76183 - PROTECTOR, HOOD BULGE, NO.1
76183-28010

CR40,50

 3
76184 - PROTECTOR, HOOD BULGE, NO.2
76184-28010

CR40,50

 3
76185 - PROTECTOR, HOOD BULGE, NO.3
76185-28010

CR40,50

 3
76187 - RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76187-35010

CR40,50

 1
76192 - PLATE, HOOD BULGE
76192-28010

CR40,50

 3
76196 - SEAL, HOOD AIR INTAKE, NO.2
76196-28010

CR40,50

 1
Common parts
52161-16010
53832-28020
53833-28030
75567-21030
90159-50268
90159-60567
90167-45005
90179-06319
90189-05032
90189-06213
90189-06216
90467-07109
90467-08011
90469-07002
