CR40G-GRSVT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )V

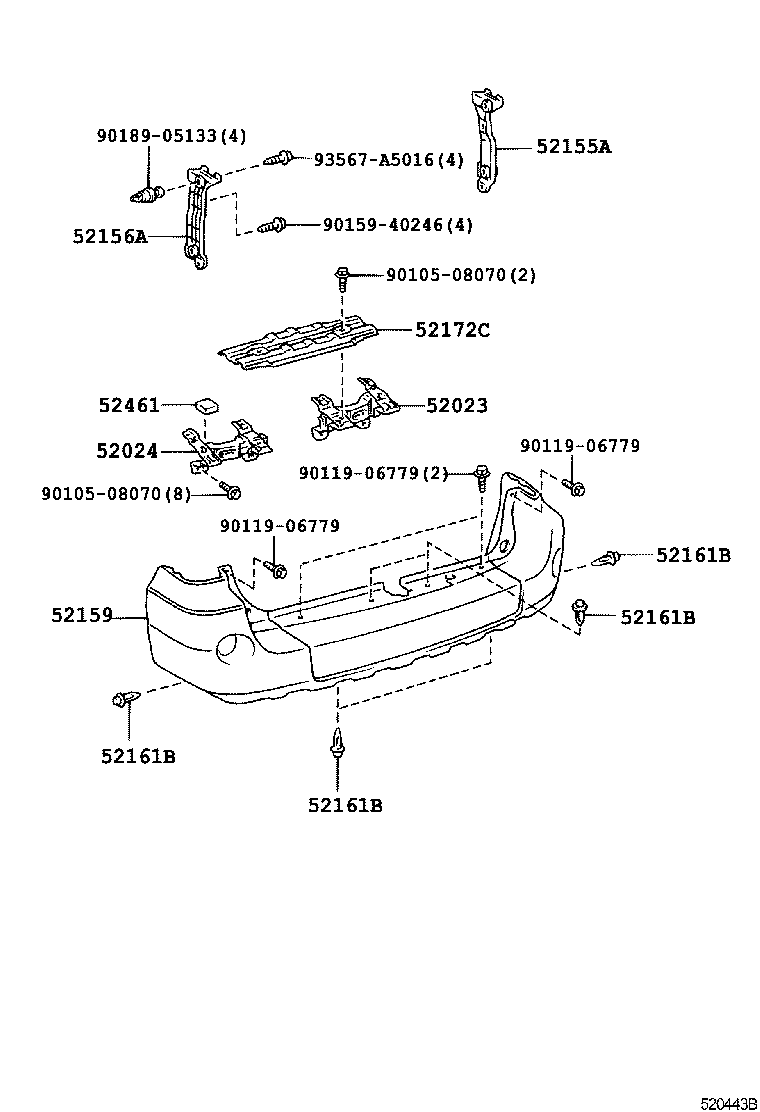

Click highlighted areas on diagram

diagram 52023 52024 52155A 52156A 52159 52161B 52161B 52161B 52161B 52172C 52461 9010508070 9010508070 9011906779 9011906779 9011906779 9015940246 9018905133 93567A5016
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-28080

CR40,50,SR40,50..V

 1
52023-28090

CR40,50,SR40,50..V

 1
52024 - REINFORCEMENT SUB-ASSY, REAR BUMPER, LH
52024-28020

CR40,50,SR40,50..V

 1
52024-28010

CR40,50,SR40,50..V

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28060

CR40,50,SR40,50

ﾎﾜｲﾄ

 1
52155-28050

CR40,50,SR40,50

ﾌﾞﾗｯｸ

 1
52155-28050

CR4#,5#,KR4#,SR40,50

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28030

CR4#,5#,KR4#,SR40,50

 1
52156-28030

CR40,50,SR40,50

ﾌﾞﾗｯｸ

 1
52156-28040

CR40,50,SR40,50

ﾎﾜｲﾄ

 1
52159 - COVER, REAR BUMPER
52150-28250G0

CR40,50,SR40,50..E

ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT. OLIVE ME.,6Q3

 1
52150-28260C0

CR40,50,SR40,50..E,Q

ｱﾘ(ﾊﾞﾂｸｿﾅ-),HARBOR SIDE TONING,2CM

 1
52150-28260C1

CR40,50,SR40,50..E,Q

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SHINNING PARM TONING,2CP

 1
52159-28130B1

CR40,50,SR40,50..E

DK.GRAY ME.,1B5

 1
52159-28210B0

CR40,50,SR40,50..V

BLUISH SILVER ME.,2CM ,2CN

 1
52150-28250B0

CR40,50,SR40,50..E

ｱﾘ(ﾊﾞﾂｸｿﾅ-),BLUISH SILVER ME.,1A0

 1
52150-28260C2

CR40,50,SR40,50..E,Q

ｱﾘ(ﾊﾞﾂｸｿﾅ-),MISTY TOPAZ TONING,2CQ

 1
52159-28130B0

CR40,50,SR40,50..D,E

BLUISH SILVER ME.,1A0

 1
52159-28160C0

CR40,50,SR40,50..E

HARBOR SIDE TONING,2CM

 1
52150-28250B1

CR40,50,SR40,50..E

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.GRAY ME.,1B5

 1
52159-28130G0

CR40,50,SR40,50..E

LT.OLIVE ME.,6Q3

 1
52159-28160C1

CR40,50,SR40,50..E,Q

SHINNING PARM TONING,2CP

 1
52159-28160C2

CR40,50,SR40,50..E,Q

MISTY TOPAZ TONING,2CQ

 1
52159-28130B3

CR40,50,SR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1

 1
52159-28220C3

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),NIGHT STORM TONNING,2GE

 1
52159-28220C3

CR40,50,SR40,50..E..CBU

ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE

 1
52159-28300A0

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),WHITE,056

 1
52159-28300A2

CR40,50,SR40,50..E..CBU

ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE PEARL MC.,042

 1
52159-28300A2

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),WHITE PEARL MC.,042

 1
52159-28220C3

CR40,50,SR40,50..E..CBU

ﾘﾓ *(A),*(B) OR ｴｸｻ-ﾌﾞ *(D),*(E),NIGHT STORM TONNING2,2GE

 1
52159-28220C3

CR40,50,SR40,50..E..CBU

Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE

 1
52159-28300A2

CR40,50,SR40,50..E..CBU

Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042

 1
52159-28300A0

CR40,50,SR40,50..E..CBU

ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE,056

 1
52159-28300B1

CR40,50,SR40,50..E..CBU

ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),SILVER ME.,1C0

 1
52159-28300A0

CR40,50,SR40,50..E..CBU

Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056

 1
52159-28300F0

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),CHAMPAGNE ME.,583

 1
52159-28300B1

CR40,50,SR40,50..E..CBU

ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M),SILVER ME.,1C0

 1
52159-28300B1

CR40,50,SR40,50..E..CBU

Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0

 1
52159-28300F0

CR40,50,SR40,50..E..CBU

Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583

 1
52159-28220C0

CR40,50,SR40,50..E,Q

PREMIERE QUARTZ TONI,2EM

 1
52159-28290B0

CR40,50,SR40,50..S

ﾛ-ﾄﾞﾂｱﾗ-,SILVER ME.,1C0

 1
52159-28220C1

CR40,50,SR40,50..E,Q

JASPER GLOW TONING,2EN

 1
52159-28290A0

CR40,50,SR40,50..S

ﾛ-ﾄﾞﾂｱﾗ-,WHITE,056

 1
52159-28300E0

CR40,50,SR40,50..E,Q

BEIGE M.M.OP.,4N9

 1
52159-28220C2

CR40,50,SR40,50..E,Q

OCEAN CRUISE TONING,2EU

 1
52159-28300B1

CR40,50,SR40,50..D,E,Q

SILVER ME.,1C0

 1
52159-28300A0

CR40,50,SR40,50..D,E,Q

WHITE,056

 1
52159-28280B0

CR40,50,SR40,50..V

SILVER ME.,1C0 ,2ES ,2ET ,2EU

 1
52161B - PIECE, REAR BUMPER
52161-16010

CR4#,5#,KR4#,SR40,50

 2
52161-16010

CR40,50,SR40,50

 6
52161B - PIECE, REAR BUMPER
52161-16010

CR4#,5#,KR4#,SR40,50

 2
52161-16010

CR40,50,SR40,50

 6
52161B - PIECE, REAR BUMPER
52161-16010

CR4#,5#,KR4#,SR40,50

 2
52161-16010

CR40,50,SR40,50

 6
52161B - PIECE, REAR BUMPER
52161-16010

CR4#,5#,KR4#,SR40,50

 2
52161-16010

CR40,50,SR40,50

 6
52172C - REINFORCEMENT, REAR BUMPER BAR, CENTER
52172-28050

CR40,50,SR40,50..V

 1
52172-28060

CR40,50,SR40,50..V

 1
52461 - PAD, REAR BUMPER, CENTER
52461-28020

CR40,50,SR40,50..V

 2
52461-28010

CR40,50,SR40,50..V

 4
Common parts
90105-08070
90119-06779
90159-40246
90189-05133
93567-A5016
