CR40G-GRSVT (1998)
Toyota Lite/Townace Noah,V

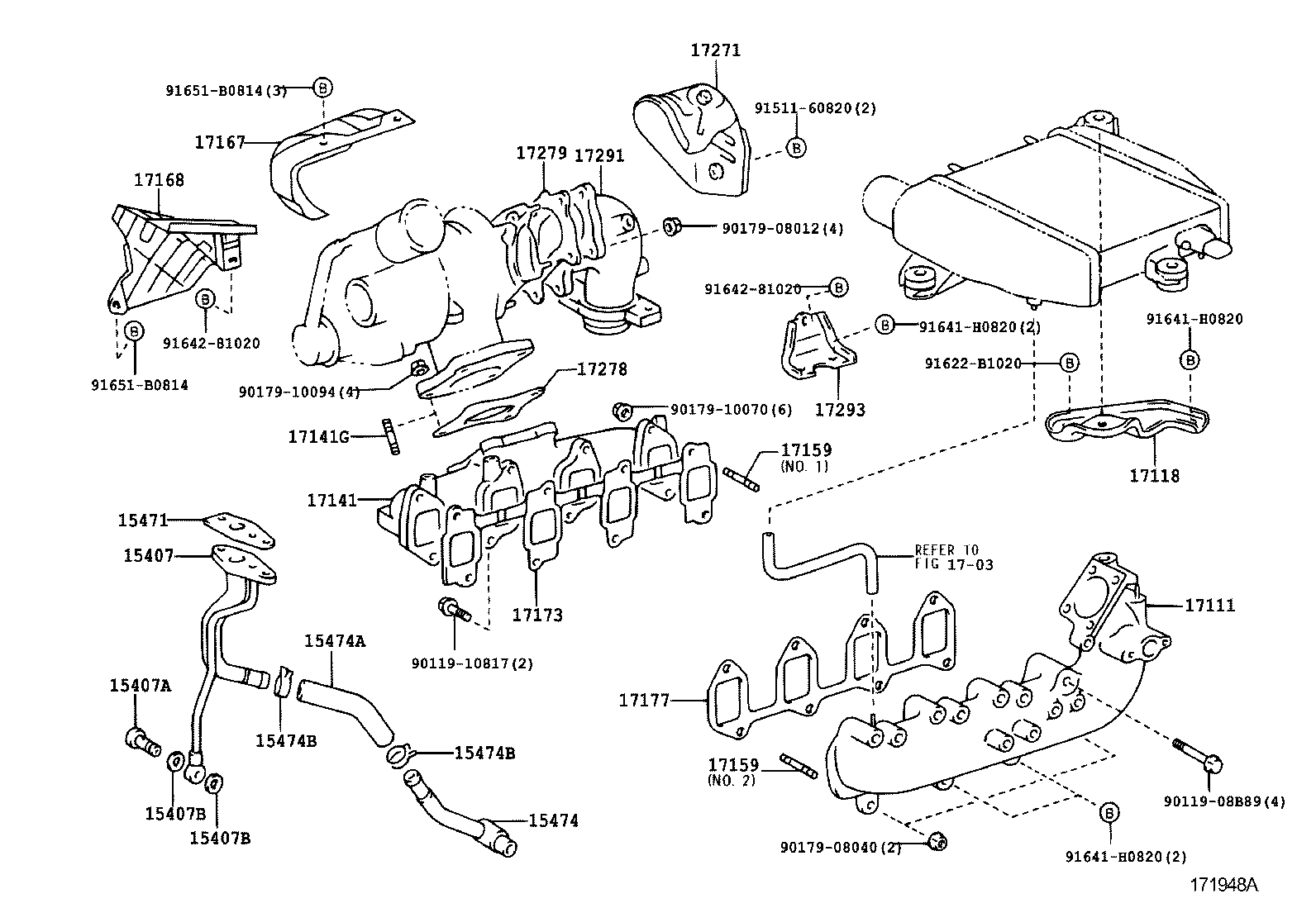

ILLUST NO. 1 OF 2(9812- )3CTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-64090 |
3CT..CR40,50 |
1 | ||
| 15407-64090 |
3CTE..CR40,50 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
3CTE..CR40,50 |
1 | ||
| 90401-10006 |
3CT..CR40,50 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10027 |
3CT..CR40,50 |
2 | ||
| 90430-10027 |
3CTE..CR40,50 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10027 |
3CT..CR40,50 |
2 | ||
| 90430-10027 |
3CTE..CR40,50 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-64010 |
3CTE..CR40,50 |
1 | ||
| 15471-64010 |
3CT..CR40,50 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15476-64020 |
3CTE..CR40,50 |
1 | ||
| 15476-64020 |
3CT..CR40,50 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-64040 |
3CT..CR40,50 |
1 | ||
| 15491-64040 |
3CTE..CR40,50 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-23003 |
3CT..CR40,50 |
2 | ||
| 90467-23003 |
3CTE..CR40,50 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-23003 |
3CT..CR40,50 |
2 | ||
| 90467-23003 |
3CTE..CR40,50 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-64170 |
3CT..CR40,50;2C..CR41..ATM ｱﾘ(EGR) |
1 | ||
| 17101-64210 |
3CTE..CR40,50 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-64070 |
3CTE..CR40,50 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-64260 |
3CT..CR40,50 |
1 | ||
| 17141-64260 |
3CTE..CR40,50 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10148 |
3CTE..CR40,50 |
4 | ||
| 90116-10148 |
3CT..CR40,50 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10017 |
3CT..CR40,50 NO.1 |
4 | ||
| 90126-10017 |
3CTE..CR40,50 |
6 | ||
| 92122-60820 |
2C,3CT..CR4#,5# NO.2 |
2 | ||
| 92122-60820 |
3CTE..CR40,50 NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10017 |
3CT..CR40,50 NO.1 |
4 | ||
| 90126-10017 |
3CTE..CR40,50 |
6 | ||
| 92122-60820 |
2C,3CT..CR4#,5# NO.2 |
2 | ||
| 92122-60820 |
3CTE..CR40,50 NO.2 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-64110 |
3CTE..CR40,50 |
1 | ||
| 17167-64110 |
3CT..CR40,50 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-64110 |
3CTE..CR40,50 |
1 | ||
| 17168-64110 |
3CT..CR40,50 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-64051 |
3CT..CR40,50 |
1 | ||
| 17173-64051 |
3CTE..CR40,50 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-64020 |
3CTE..CR40,50 |
1 | ||
| 17177-64020 |
2C,3CT..CR4#,5# |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-64090 |
3CTE..CR40,50 |
1 | ||
| 17271-64090 |
3CT..CR40,50 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-64030 |
3CT..CR40,50 |
1 | ||
| 17278-64031 |
3CTE..CR40,50 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-55011 |
3CT..CR40,50 |
1 | ||
| 17279-64020 |
3CTE..CR40,50 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-64100 |
3CT..CR40,50 |
1 | ||
| 17291-64100 |
3CTE..CR40,50 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-64070 |
3CT..CR40,50 |
1 | ||
| 17293-64070 |
3CTE..CR40,50 |
1 | ||
| Common parts | ||||
| 90119-08B89 | ||||
| 90119-10817 | ||||
| 90179-08012 | ||||
| 90179-08040 | ||||
| 90179-10070 | ||||
| 90179-10094 | ||||
| 91511-60820 | ||||
| 91622-B1020 | ||||
| 91641-H0820 | ||||
| 91642-81020 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
