CR40G-GRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR4#,51,52,SR40,50..ATM

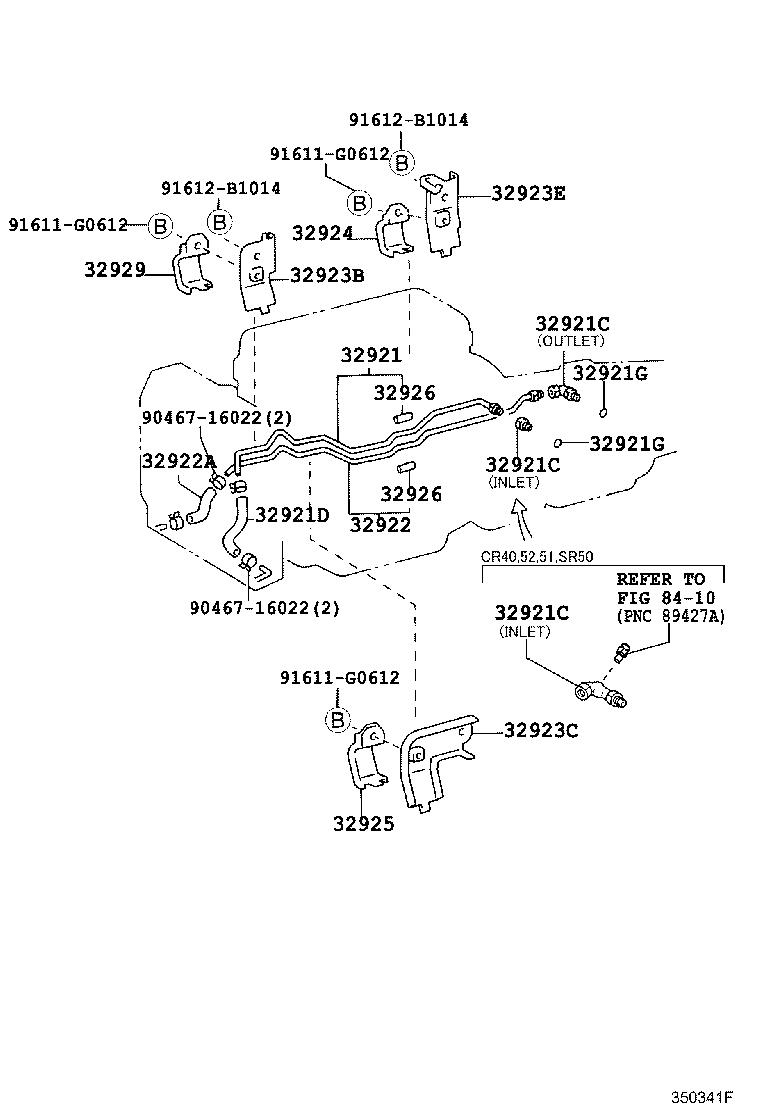

Click highlighted areas on diagram

A44D,A44DE,A44DF,A44DL,A45DF,A45DL

diagram 32921 32921C 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32923C 32923E 32924 32925 32926 32926 32929 8410 9046716022 9046716022 91611G0612 91611G0612 91611G0612 91612B1014 91612B1014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28200

CR4#..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CR4#,5#,KR4#,SR40,50..ATM

ｱｳﾄﾚｯﾄ

 1
90404-16021

CR4#,KR4#,SR40..ATM

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CR4#,5#,KR4#,SR40,50..ATM

ｱｳﾄﾚｯﾄ

 1
90404-16021

CR4#,KR4#,SR40..ATM

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CR4#,5#,KR4#,SR40,50..ATM

ｱｳﾄﾚｯﾄ

 1
90404-16021

CR4#,KR4#,SR40..ATM

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17150

CR4#,5#,SR40,50..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CR4#,5#,KR4#,SR40,50..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CR4#,5#,KR4#,SR40,50..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28170

CR4#,5#..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17095

CR4#,51,SR40,50..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28110

CR4#,5#,SR40,50..ATM

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-28070

CR4#,5#,SR40,50..ATM

 1
32923E - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.6
32925-28020

CR4#,5#,SR40,50..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32929-28010

CR4#,5#,SR40,50..ATM

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32929-28010

CR4#,5#,KR4#,SR40,50..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CR4#,5#,SR40,50..ATM

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CR4#,5#,SR40,50..ATM

長さ=35,内径=10

 6
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-28010

CR4#,5#,SR40,50..ATM

 1
Common parts
90467-16022
91611-G0612
91612-B1014
Linked diagrams
8410
