CR40G-GRSET (1998)
Toyota Lite/Townace Noah,V
(9812- )
ﾀｳﾝｴ-ｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

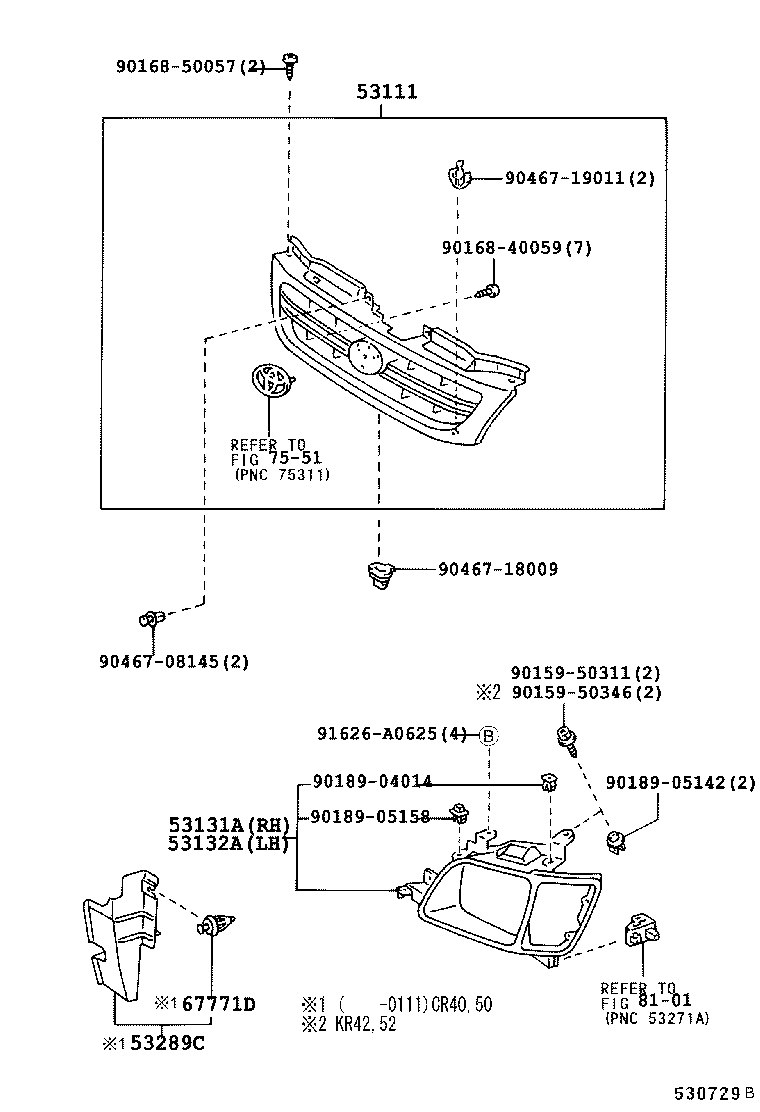

| 53111 - GRILLE, RADIATOR | ||||
| 53100-28150E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,2CQ |
1 | ||
| 53100-28150B0 |
CR40,50,SR40,50..D,E ﾀｳﾝｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28160B0 |
CR40,50,SR40,50..D,E ﾗｲﾄｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28150G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 53100-28150B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 53100-28160E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,2CQ |
1 | ||
| 53100-28160J0 |
CR40,50,SR40,50..E,Q,V ﾗｲﾄｴ-ｽ,BLUE M.M.,2CM |
1 | ||
| 53100-28160B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 53100-28150G1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,OLIVE GREEN ME.,2CP |
1 | ||
| 53100-28160G1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,OLIVE GREEN ME.,2CP |
1 | ||
| 53100-28160G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 53100-28150J0 |
CR40,50,SR40,50..E,Q,V ﾀｳﾝｴ-ｽ,BLUE M.M.,2CM |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),SILVER ME.,1C0 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE,056 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),SILVER ME.,1C0 |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),BLACK ME.,2GE |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE,056 |
1 | ||
| 53100-28120F0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 53100-28200F0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),SILVER ME.,1C0 |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28120F0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),SILVER ME.,1C0 |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),BLACK ME.,2GE |
1 | ||
| 53100-28120B1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,CRYSTAL SILVER PEARL,2EM |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),BLACK ME.,2GE |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 53100-28200F0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..07S,08S ﾀｳﾝｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 53100-28120B1 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..D,E,Q,S ﾀｳﾝｴ-ｽ,WHITE,056 |
1 | ||
| 53100-28120G0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,DK. GREEN MC.,2EN |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..D,E,Q,S ﾗｲﾄｴ-ｽ,WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..07S,08S ﾗｲﾄｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28200E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200J0 |
CR40,50,SR40,50..E,Q,V ﾗｲﾄｴ-ｽ,DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200G0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,DK. GREEN MC.,2EN |
1 | ||
| 53100-28120J0 |
CR40,50,SR40,50..E,Q,V ﾀｳﾝｴ-ｽ,DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200B1 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 53100-28200B1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,CRYSTAL SILVER PEARL,2EM |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),BLACK ME.,2GE |
1 | ||
| 53289C - GUARD, RADIATOR SIDE AIR | ||||
| 53289-28010 |
CR40,50 |
1 | ||
| 53289-28030 |
CR40,50 |
1 | ||
| 67771D - RETAINER, RADIATOR SIDE AIR GUARD | ||||
| 67771-12050 |
CR40,50 |
2 | ||
| 67771-12050 |
CR40,50 |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50346 | ||||
| 90168-40059 | ||||
| 90168-50057 | ||||
| 90189-04014 | ||||
| 90189-05142 | ||||
| 90189-05158 | ||||
| 90467-08145 | ||||
| 90467-18009 | ||||
| 90467-19011 | ||||
| 91626-A0625 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8101 | ||||
(9812- )
ﾗｲﾄｴ-ｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

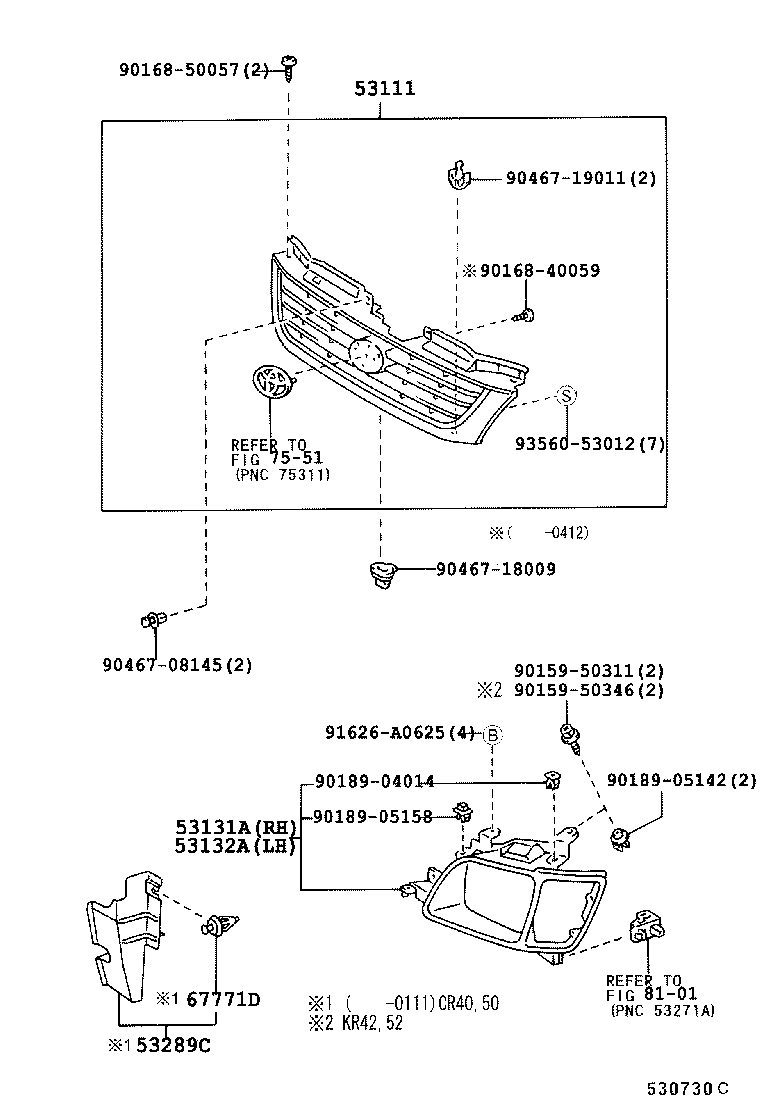

| 53111 - GRILLE, RADIATOR | ||||
| 53100-28150E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,2CQ |
1 | ||
| 53100-28150B0 |
CR40,50,SR40,50..D,E ﾀｳﾝｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28160B0 |
CR40,50,SR40,50..D,E ﾗｲﾄｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 53100-28150G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 53100-28150B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 53100-28160E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,2CQ |
1 | ||
| 53100-28160J0 |
CR40,50,SR40,50..E,Q,V ﾗｲﾄｴ-ｽ,BLUE M.M.,2CM |
1 | ||
| 53100-28160B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 53100-28150G1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,OLIVE GREEN ME.,2CP |
1 | ||
| 53100-28160G1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,OLIVE GREEN ME.,2CP |
1 | ||
| 53100-28160G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 53100-28150J0 |
CR40,50,SR40,50..E,Q,V ﾀｳﾝｴ-ｽ,BLUE M.M.,2CM |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),SILVER ME.,1C0 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE,056 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),SILVER ME.,1C0 |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),BLACK ME.,2GE |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE,056 |
1 | ||
| 53100-28120F0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 53100-28200F0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),SILVER ME.,1C0 |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28120F0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE PEARL MC.,042 |
1 | ||
| 53100-28120A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),SILVER ME.,1C0 |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),BLACK ME.,2GE |
1 | ||
| 53100-28120B1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,CRYSTAL SILVER PEARL,2EM |
1 | ||
| 53100-28120C0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),BLACK ME.,2GE |
1 | ||
| 53100-28200A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 53100-28200F0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 53100-28120E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 53100-28120B0 |
CR40,50,SR40,50..07S,08S ﾀｳﾝｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 53100-28120B1 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 53100-28120A0 |
CR40,50,SR40,50..D,E,Q,S ﾀｳﾝｴ-ｽ,WHITE,056 |
1 | ||
| 53100-28120G0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,DK. GREEN MC.,2EN |
1 | ||
| 53100-28200A0 |
CR40,50,SR40,50..D,E,Q,S ﾗｲﾄｴ-ｽ,WHITE,056 |
1 | ||
| 53100-28200B0 |
CR40,50,SR40,50..07S,08S ﾗｲﾄｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),BLACK ME.,205 ,2GE |
1 | ||
| 53100-28200E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 53100-28200J0 |
CR40,50,SR40,50..E,Q,V ﾗｲﾄｴ-ｽ,DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200G0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,DK. GREEN MC.,2EN |
1 | ||
| 53100-28120J0 |
CR40,50,SR40,50..E,Q,V ﾀｳﾝｴ-ｽ,DK.BLUE M.M.,2EU |
1 | ||
| 53100-28200B1 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 53100-28200B1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,CRYSTAL SILVER PEARL,2EM |
1 | ||
| 53100-28200C0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),BLACK ME.,2GE |
1 | ||
| 53289C - GUARD, RADIATOR SIDE AIR | ||||
| 53289-28010 |
CR40,50 |
1 | ||
| 53289-28030 |
CR40,50 |
1 | ||
| 67771D - RETAINER, RADIATOR SIDE AIR GUARD | ||||
| 67771-12050 |
CR40,50 |
2 | ||
| 67771-12050 |
CR40,50 |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-50346 | ||||
| 90168-40059 | ||||
| 90168-50057 | ||||
| 90189-04014 | ||||
| 90189-05142 | ||||
| 90189-05158 | ||||
| 90467-08145 | ||||
| 90467-18009 | ||||
| 90467-19011 | ||||
| 91626-A0625 | ||||
| 93560-53012 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
