CR40G-GRSET (1998)
Toyota Lite/Townace Noah,V
(9812- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-28210 |
CR40,50,SR40,50..ATM |
1 | ||
| 33055-28200 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33526A - PLATE, SHIFT LEVER SUPPORT, NO.1 | ||||
| 33526-28080 |
CR40,50,SR40,50..ATM |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-28070 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33535-28070 |
CR40,50,SR40,50..ATM |
1 | ||
| 33537C - PLATE, COLUMN SHIFT CONTROL LEVER | ||||
| 33537-28030 |
CR40,50,SR40,50..ATM |
1 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-22003 |
CR4#,5#,KR4#,SR40,50..ATM |
2 | ||
| 90386-14014 |
CR40,50,SR40,50..ATM |
2 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-22003 |
CR4#,5#,KR4#,SR40,50..ATM |
2 | ||
| 90386-14014 |
CR40,50,SR40,50..ATM |
2 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-28090 |
CR40,50,SR40,50..ATM |
1 | ||
| 33594B - PLATE, SHIFT LOCK (FOR COLUMN SHIFT) | ||||
| 33594-28030 |
CR40,50,SR40,50..ATM |
1 | ||
| 33633 - PLATE, COLUMN SHIFT LEVER DETENT | ||||
| 33633-28120 |
CR40,50,SR40,50..ATM |
1 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-09136 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90501-09136 |
CR40,50,SR40,50..ATM |
1 | ||
| 33769 - SCREW, CONTROL ROD SET | ||||
| 33769-28010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33769-28010 |
CR40,50,SR40,50..ATM |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-28280 |
CR40,50,SR40,50..ATM |
1 | ||
| 33820-28310 |
CR40,50,SR40,50..ATM |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-28280 |
CR40,50,SR40,50..ATM |
1 | ||
| 33820-28310 |
CR40,50,SR40,50..ATM |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-28180 |
CR40,50,SR40,50..ATM |
1 | ||
| 33823-28180 |
CR4#,5#,SR40,50..ATM |
1 | ||
| 33823A - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33823-28180 |
CR40,50,SR40,50..ATM |
1 | ||
| 33823-28180 |
CR4#,5#,SR40,50..ATM |
1 | ||
| 33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-28030 |
CR40,50,SR40,50..ATM |
1 | ||
| 33866A - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-28020 |
CR40,50,SR40,50..ATM |
1 | ||
| 33866-28010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33866B - FIXED CLAMP | ||||
| 82711-1A660 |
CR40,50,SR40,50..ATM |
1 | ||
| 82711-1A660 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT) | ||||
| 33880-28040 |
CR40,50,SR40,50..ATM |
1 | ||
| 33880-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33883A - HOLDER, CABLE END ROD | ||||
| 33883-28020 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 33883-28020 |
CR40,50,SR40,50..ATM |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90179-06299 | ||||
| 90179-08009 | ||||
| 90179-08061 | ||||
| 90201-09019 | ||||
| 90206-14005 | ||||
| 90468-14016 | ||||
| 90468-14037 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||

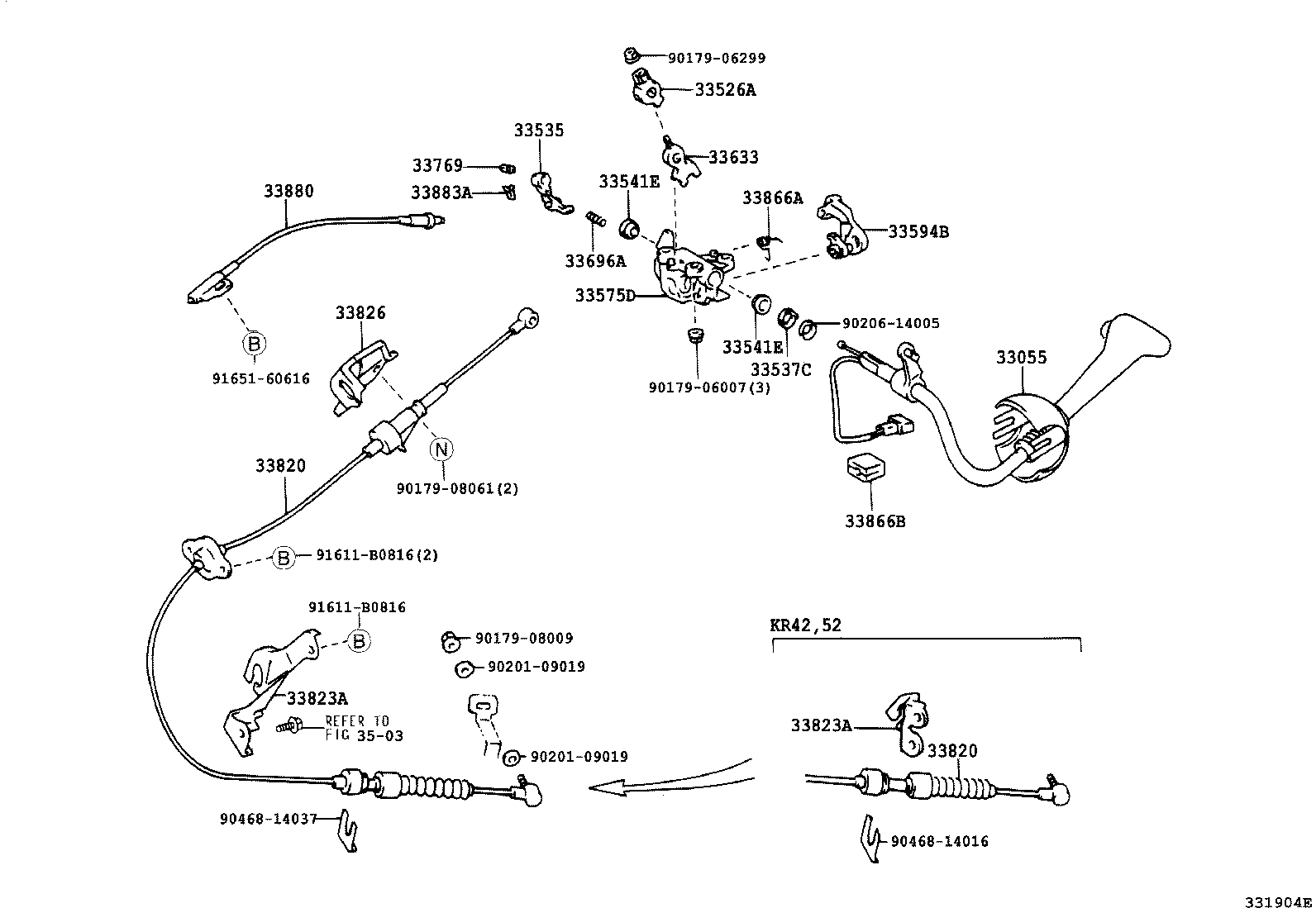

| Linked diagrams | ||||
| 3503 | ||||
