CR40G-GRMEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR4#,5#

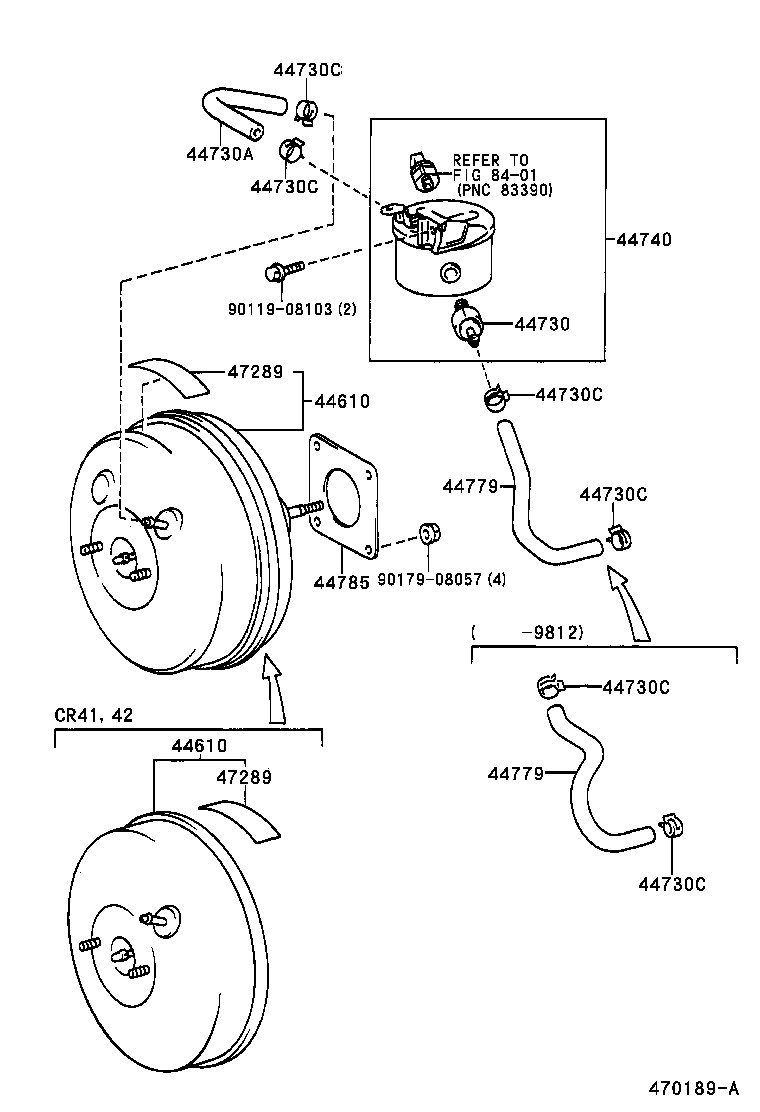

Click highlighted areas on diagram

diagram 44610 44610 44730 44730A 44730C 44730C 44730C 44730C 44730C 44730C 44740 44779 44779 44785 47289 47289 8401 9011908103 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28890

CR40,50

 1
44610 - BOOSTER ASSY, BRAKE
44610-28890

CR40,50

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

CR4#,5#

 1
44730A - HOSE, VACUUM, NO.1
95446-09190

CR4#,5#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CR4#,5#

 4
44740 - RESERVOIR ASSY, VACUUM
44740-28080

CR4#,5#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-28030

CR4#,5#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-28030

CR4#,5#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CR4#,5#,KR4#,SR40,50

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60020

CR40,50

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60020

CR40,50

 1
Common parts
90119-08103
90179-08057
Linked diagrams
8401
