CR40G-GRMDX (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)3CT

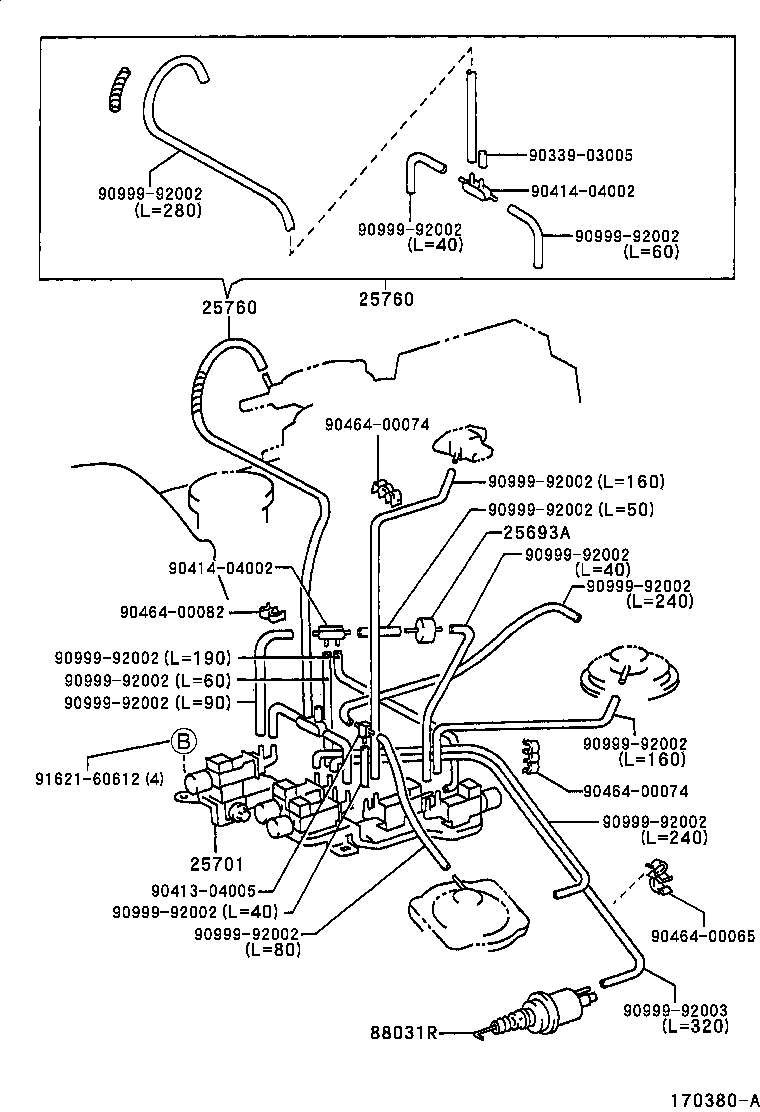

Click highlighted areas on diagram

diagram 25693A 25701 25760 25760 88031R 9033903005 9041304005 9041404002 9041404002 9046400065 9046400074 9046400074 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162160612
Part # Description Qty Price
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

3CT..CR40,50;2C..CR41..ATM

 1
25701 - VALVE SET, EMISSION CONTROL
25701-64010

3CT..CR40,50

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64110

3CT..CR40,50

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64110

3CT..CR40,50

 1
88031R - ACTUATOR SET, IDLE-UP
88031-28040

CR4#,5#

 1
Common parts
90339-03005
90413-04005
90414-04002
90464-00065
90464-00074
90464-00082
90999-92002
90999-92003
91621-60612
