S413U-TQRFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )PIC

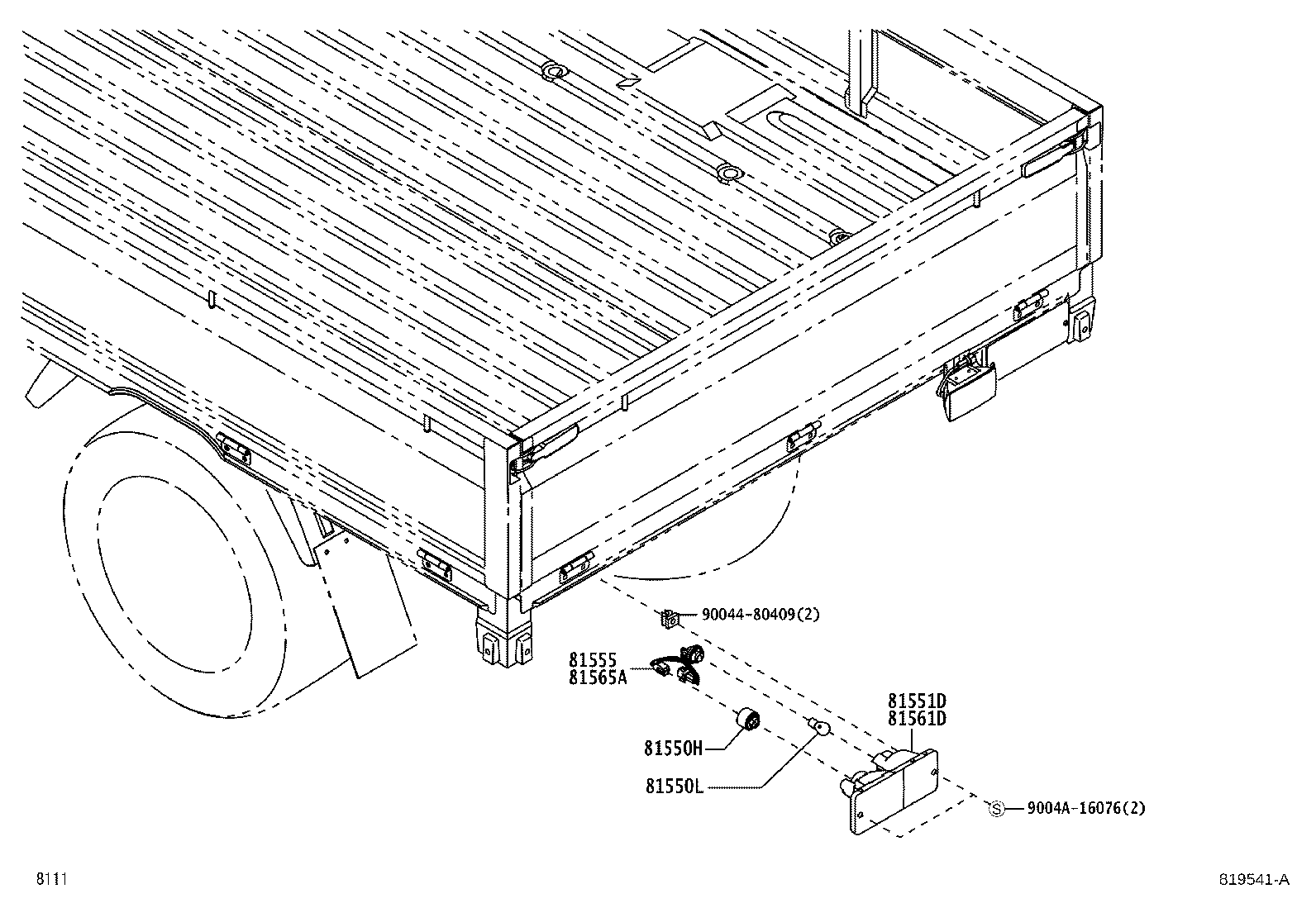

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 81945-BZ020 |
S403,413..PIC |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 9004A-81022 |
S403,413..PIC |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-BZ410 |
S403,413..PIC |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-BZ220 |
S403,413..PIC |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-BZ400 |
S403,413..PIC |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-BZ220 |
S403,413..PIC |
1 | ||
| Common parts | ||||
| 90044-80409 | ||||
| 9004A-16076 | ||||
