S413U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )PIC

Click highlighted areas on diagram

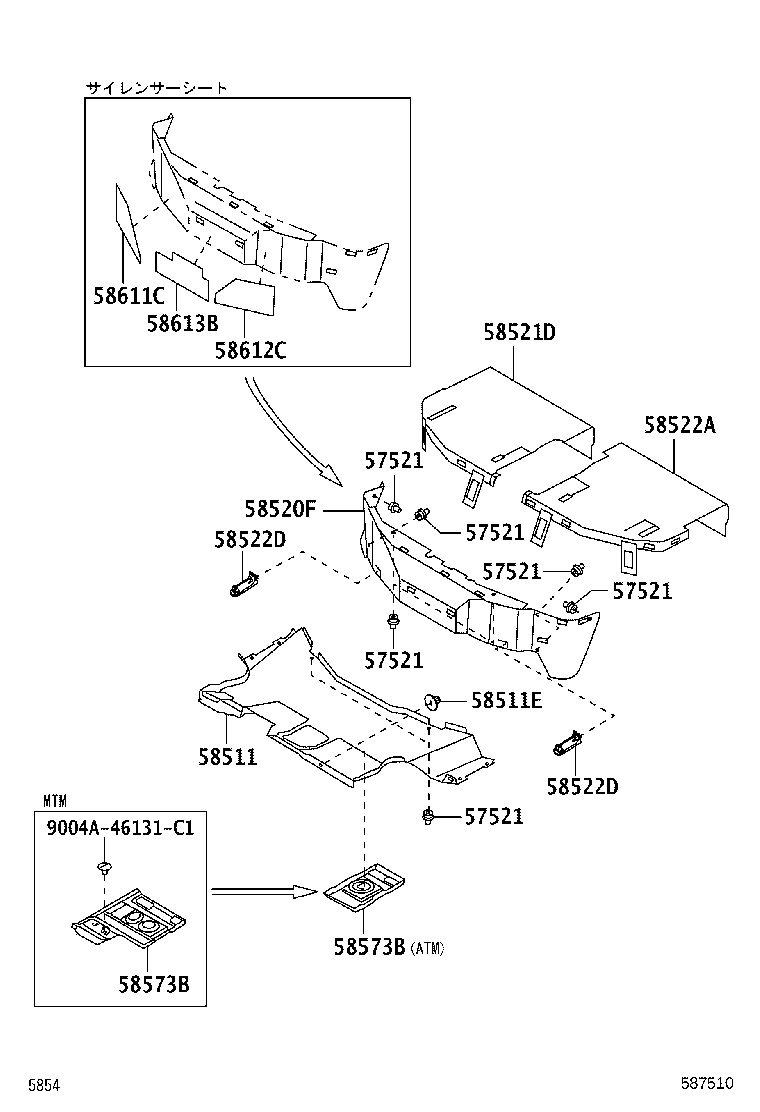

diagram 57521 57521 57521 57521 57521 57521 58511 58511E 58520F 58521D 58522A 58522D 58522D 58573B 58573B 58611C 58612C 58613B 9004A46131C1
Part # Description Qty Price
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
57521 - FASTENER, HOOK
9004A-53002

S403,413

 8
58511 - MAT, FLOOR, FRONT
58510-BZP60B1

S403,413..5F

DK.GRAY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90044-68234B2

S403,413

DK.GRAY,TRIM1#

 1
58520F - MAT ASSY, ENGINE COVER
58520-BZ020B1

S403,413

DK.GRAY,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-BZ360B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
58522A - MAT, ENGINE SERVICE HOLE COVER, LH
58521-BZ370B0

S403,413..PIC

DK.GRAY,TRIM1#

 1
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

S403,413

 2
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

S403,413

 2
58573B - PAD, FRONT FLOOR CENTER
58573-BZ020

S403,413..5F

 1
58573B - PAD, FRONT FLOOR CENTER
58573-BZ020

S403,413..5F

 1
58611C - SHEET, FRONT FLOOR SILENCER, RH
58641-BZ040

S403,413..PIC

 1
58612C - SHEET, FRONT FLOOR SILENCER, LH
58642-BZ030

S403,413..PIC

 1
58613B - SHEET, FRONT FLOOR SILENCER, CENTER
58644-BZ030

S403,413..PIC

 1
Common parts
9004A-46131C1
