S413U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

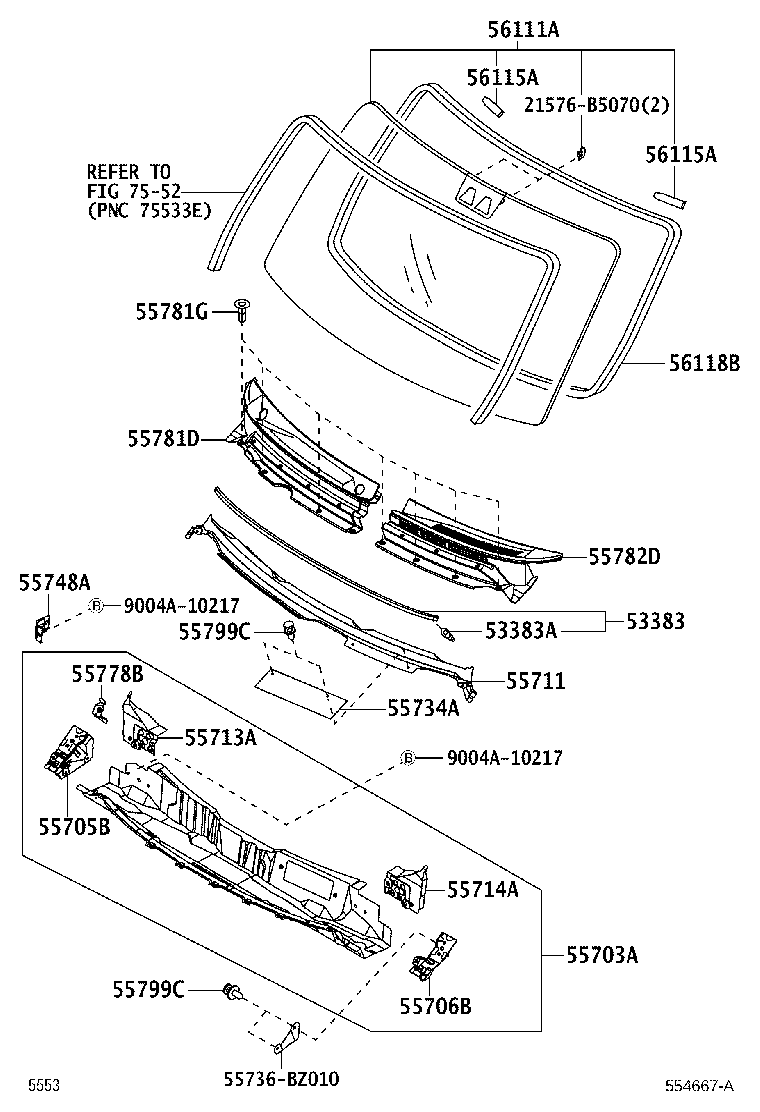

Click highlighted areas on diagram

diagram 21576B5070 53383 53383A 55703A 55705B 55706B 55711 55713A 55714A 55734A 55736BZ010 55748A 55778B 55781D 55781G 55782D 55799C 55799C 56111A 56115A 56115A 56118B 7552 9004A10217 9004A10217
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-BZ050

S403,413

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90044-67533

S403,413

 7
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-BZ580

S403,413

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-BZ060

S403,413

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-BZ060

S403,413

 1
55711 - PANEL, COWL TOP, OUTER
55701-BZ110

S403,413

 1
55713A - PANEL, COWL TOP SIDE, RH
61121-BZ040

S403,413

 1
55714A - PANEL, COWL TOP SIDE, LH
61122-BZ040

S403,413

 1
55734A - PLATE, WATER GUARD, RH
55734-BZ010

S403,413

 1
55748A - BRACE, COWL TOP INNER TO PILLAR
55748-BZ010

S403,413

 1
55778B - BRACKET, IDENTIFICATION NUMBER PLATE
55774-BZ120

S403,413

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-BZ080

S403,413

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07055C1

S403,413

-

 7
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-BZ090

S413

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
9004A-46323

S403,413

 4
55799C - CLIP, COWL TOP VENTILATOR LOUVER
9004A-46323

S403,413

 4
56111A - GLASS, WINDSHIELD
56101-BZ160

S403,413

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-BZ080

S403,413

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-BZ080

S403,413

 2
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-BZ060

S403,413

長さ=2652

 1
Common parts
21576-B5070
55736-BZ010
9004A-10217
Linked diagrams
7552
