S413U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

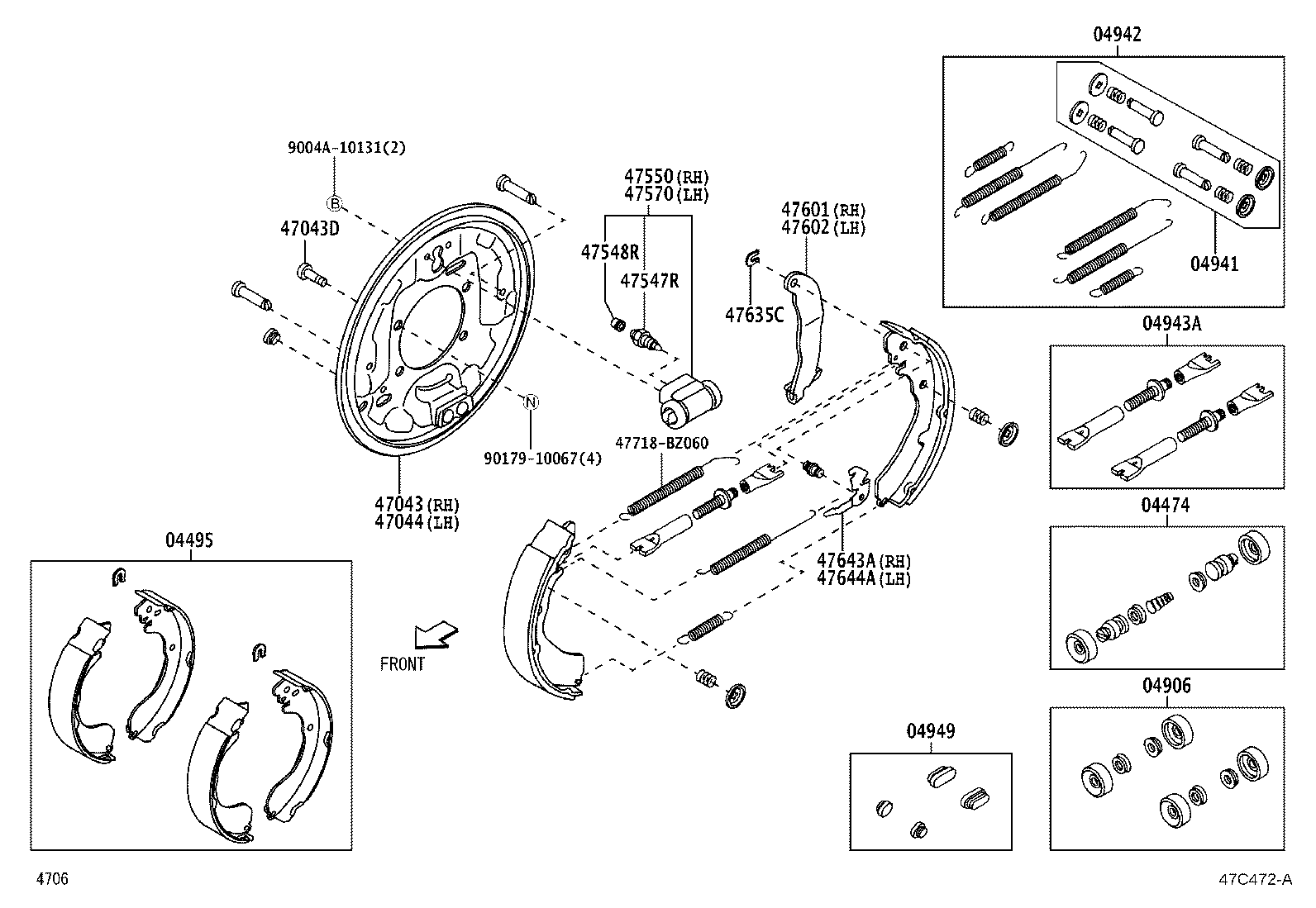

Click highlighted areas on diagram

diagram 04474 04495 04906 04941 04942 04943A 04949 47043 47043D 47044 47547R 47548R 47550 47570 47601 47602 47635C 47643A 47644A 47718BZ060 9004A10131 9017910067
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-BZ100

S403,413

 2
04495 - SHOE KIT, REAR BRAKE
04495-BZ170

S403,413

ﾏｰｸ AK L608 EE

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-BZ120

S403,413

 1
04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04941-BZ040

S403,413

 1
04942 - SPRING KIT, REAR BRAKE
04942-BZ080

S403,413

 1
04943A - STRUT KIT, REAR BRAKE
04943-BZ060

S403,413

 1
04949 - PLUG KIT, REAR BRAKE
04949-BZ050

S403,413

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-BZ060

S403,413

 1
47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
9004A-10199

S403,413

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-BZ060

S403,413

 1
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-BZ110

S403,413

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47548-BZ080

S403,413

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47560-BZ090

S403,413

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47560-BZ090

S403,413

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47611-BZ090

S403,413

 1
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47612-BZ090

S403,413

 1
47635C - RETAINER, ADJUSTING BOLT SPRING
47635-BZ030

S403,413

 2
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-BZ090

S403,413

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-BZ080

S403,413

 1
Common parts
47718-BZ060
9004A-10131
90179-10067
