S413U-TMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

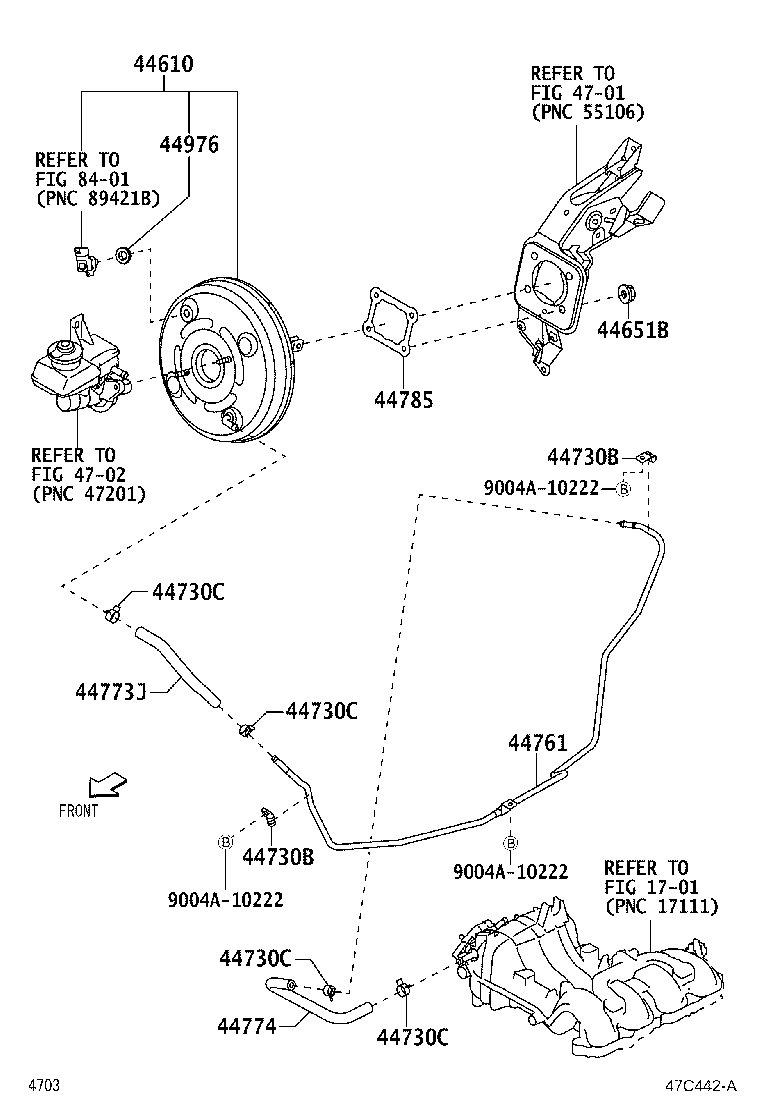

Click highlighted areas on diagram

diagram 1701 44610 44651B 44730B 44730B 44730C 44730C 44730C 44730C 44761 44773J 44774 44785 44976 4701 4702 8401 9004A10222 9004A10222 9004A10222
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-BZ560

S403,413

 1
44651B - NUT, BOOSTER
90041-79300

S403,413

M8

 4
44730B - CLAMP, VACUUM HOSE
90044-62270

S403,413

 2
44730B - CLAMP, VACUUM HOSE
90044-62270

S403,413

 2
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S403,413

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S403,413

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S403,413

 4
44730C - CLIP(FOR VACUUM HOSE)
9004A-46337

S403,413

 4
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-BZ080

S403,413

 1
44773J - HOSE, VACUUM, NO.3
44750-BZ210

S403,413

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-BZ080

S403,413

 1
44785 - GASKET, BRAKE BOOSTER
47275-BZ010

S403,413

 1
44976 - SEAL, BOOSTER
44685-B2010

S403,413

 1
Common parts
9004A-10222
Linked diagrams
1701
4701
4702
8401
