S413M-ZQRFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )VAN..DX

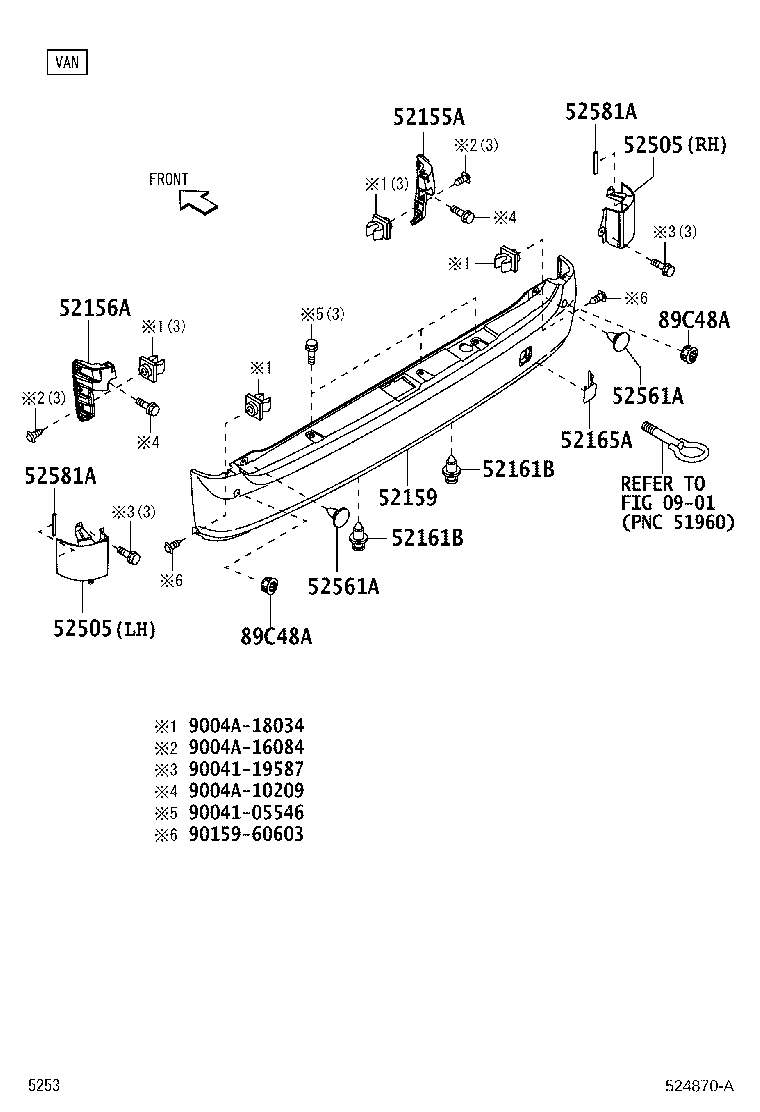

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-BZ060 |
S403,413..VAN |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-BZ070 |
S403,413..VAN |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-BZL00 |
S403,413..VAN..DX 要塗装 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 9004A-46323 |
S403,413..VAN |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 9004A-46323 |
S403,413..VAN |
2 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-BZ040 |
S403,413..VAN..DX 要塗装 |
1 | ||
| 52505 - FILLER SUB-ASSY, REAR BUMPER | ||||
| 52506-BZ020 |
S403,413..VAN 右側 |
1 | ||
| 52507-BZ020 |
S403,413..VAN 左側 |
1 | ||
| 52505 - FILLER SUB-ASSY, REAR BUMPER | ||||
| 52506-BZ020 |
S403,413..VAN 右側 |
1 | ||
| 52507-BZ020 |
S403,413..VAN 左側 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 9004A-46334 |
S403,413..VAN |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 9004A-46334 |
S403,413..VAN |
2 | ||
| 52581A - PROTECTOR, REAR BUMPER FILLER | ||||
| 52581-BZ110 |
S403,413..VAN |
2 | ||
| 52581A - PROTECTOR, REAR BUMPER FILLER | ||||
| 52581-BZ110 |
S403,413..VAN |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-BZ260 |
S403,413..VAN..DX 左側 |
1 | ||
| 89348-BZ250 |
S403,413..VAN..DX 右側 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-BZ260 |
S403,413..VAN..DX 左側 |
1 | ||
| 89348-BZ250 |
S403,413..VAN..DX 右側 |
1 | ||
| Common parts | ||||
| 90041-05546 | ||||
| 90041-19587 | ||||
| 9004A-10209 | ||||
| 9004A-16084 | ||||
| 9004A-18034 | ||||
| 90159-60603 | ||||
| Linked diagrams | ||||
| 0901 | ||||
