S413M-ZQRFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

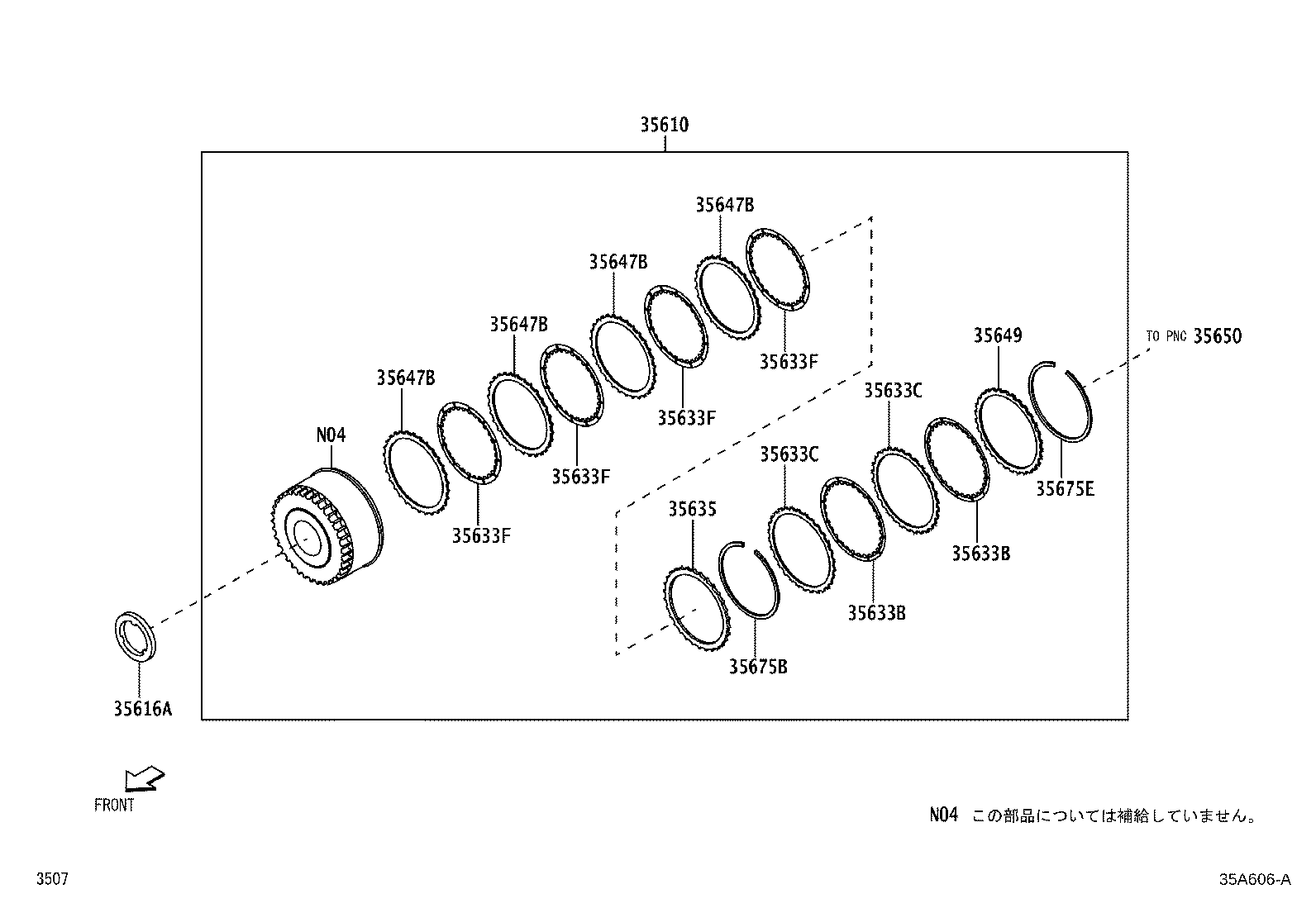

ILLUST NO. 1 OF 2(2007- )4FC

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 35610 35616A 35633B 35633B 35633C 35633C 35633F 35633F 35633F 35633F 35635 35647B 35647B 35647B 35647B 35649 35650 35675B 35675E
Part # Description Qty Price
35610 - CLUTCH ASSY, FRONT MULTIPLE DISC
35610-B1030

S403,413..4FC

 1
35616A - BEARING, FRONT CLUTCH THRUST
90043-74043

S403,413..4FC

厚さ=3.81

 1
90043-74045

S403,413..4FC

厚さ=4.21

 1
90043-74044

S403,413..4FC

厚さ=3.41

 1
35650 - CLUTCH ASSY, REAR MULTIPLE DISC
35650-B1020

S403,413..4FC

 1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90045-21167

S403,413..4FC

厚さ=2.0

 1
90045-21168

S403,413..4FC

厚さ=2.25

 1
90045-21169

S403,413..4FC

厚さ=2.5

 1
90045-21166

S403,413..4FC

厚さ=1.75

 1
90045-21164

S403,413..4FC

厚さ=1.5

 1
35675E - RING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
90045-21165

S403,413..4FC

 1

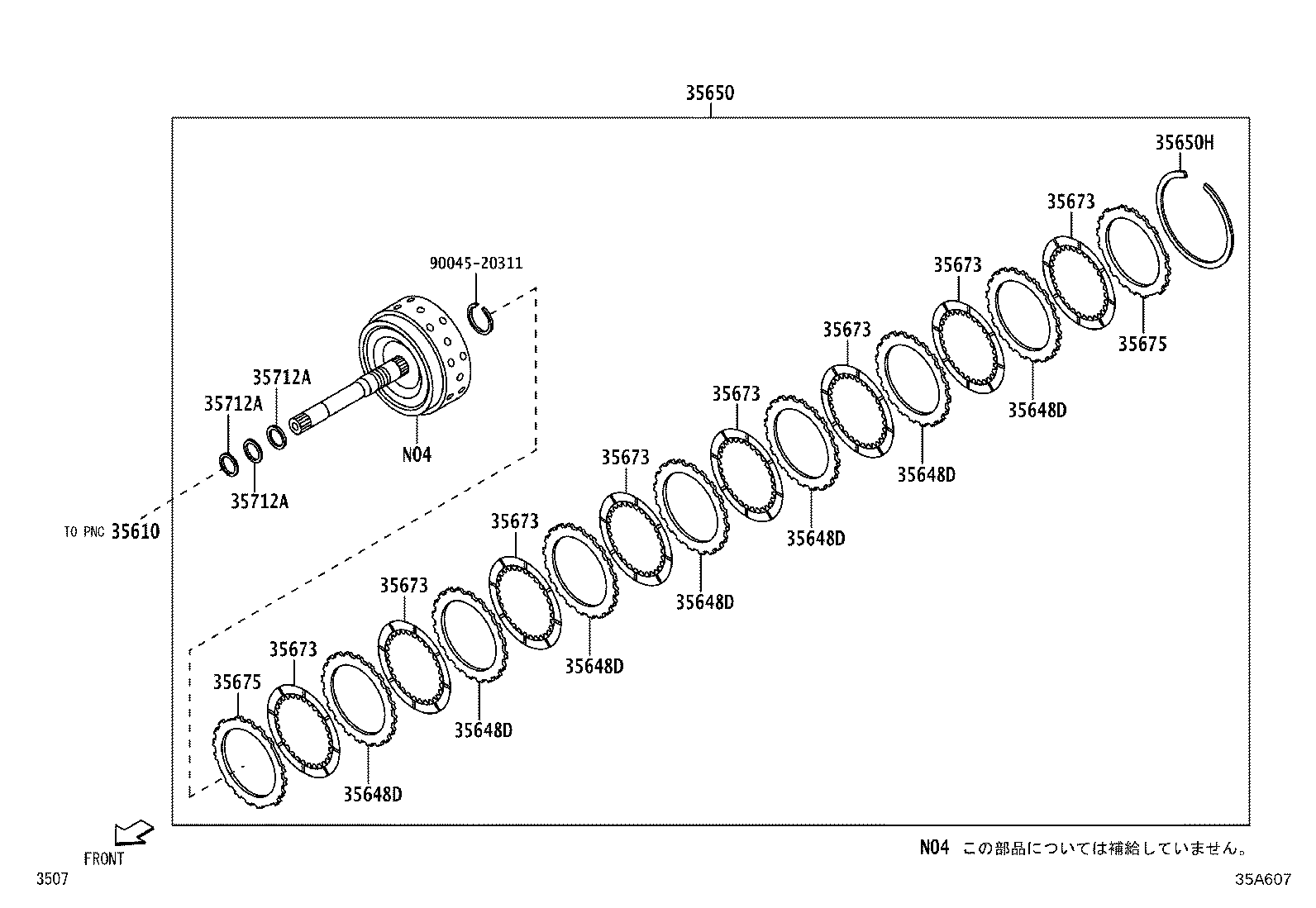

ILLUST NO. 2 OF 2(2007- )4FC

Click highlighted areas on diagram

ﾘﾔ

diagram 35610 35648D 35648D 35648D 35648D 35648D 35648D 35648D 35650 35650H 35673 35673 35673 35673 35673 35673 35673 35673 35675 35675 35712A 35712A 35712A 9004520311
Part # Description Qty Price
35610 - CLUTCH ASSY, FRONT MULTIPLE DISC
35610-B1030

S403,413..4FC

 1
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35648D - PLATE, CLUTCH, NO.3
35648-97205

S403,413..4FC

 7
35650 - CLUTCH ASSY, REAR MULTIPLE DISC
35650-B1020

S403,413..4FC

 1
35650H - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTHC)
90045-21170

S403,413..4FC

厚さ=1.5

 1
90045-21172

S403,413..4FC

厚さ=2.0

 1
90045-21171

S403,413..4FC

厚さ=1.75

 1
90045-21173

S403,413..4FC

厚さ=2.25

 1
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35673 - DISC, REAR CLUTCH
35677-B1011

S403,413..4FC

 8
35675 - FLANGE, REAR CLUTCH
35689-B1010

S403,413..4FC

厚さ=3.0

 2
35675 - FLANGE, REAR CLUTCH
35689-B1010

S403,413..4FC

厚さ=3.0

 2
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S403,413..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S403,413..4FC

 3
35712A - RING, INPUT SHAFT OIL SEAL
35712-97201

S403,413..4FC

 3
Common parts
90045-20311
