S413M-ZQRFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

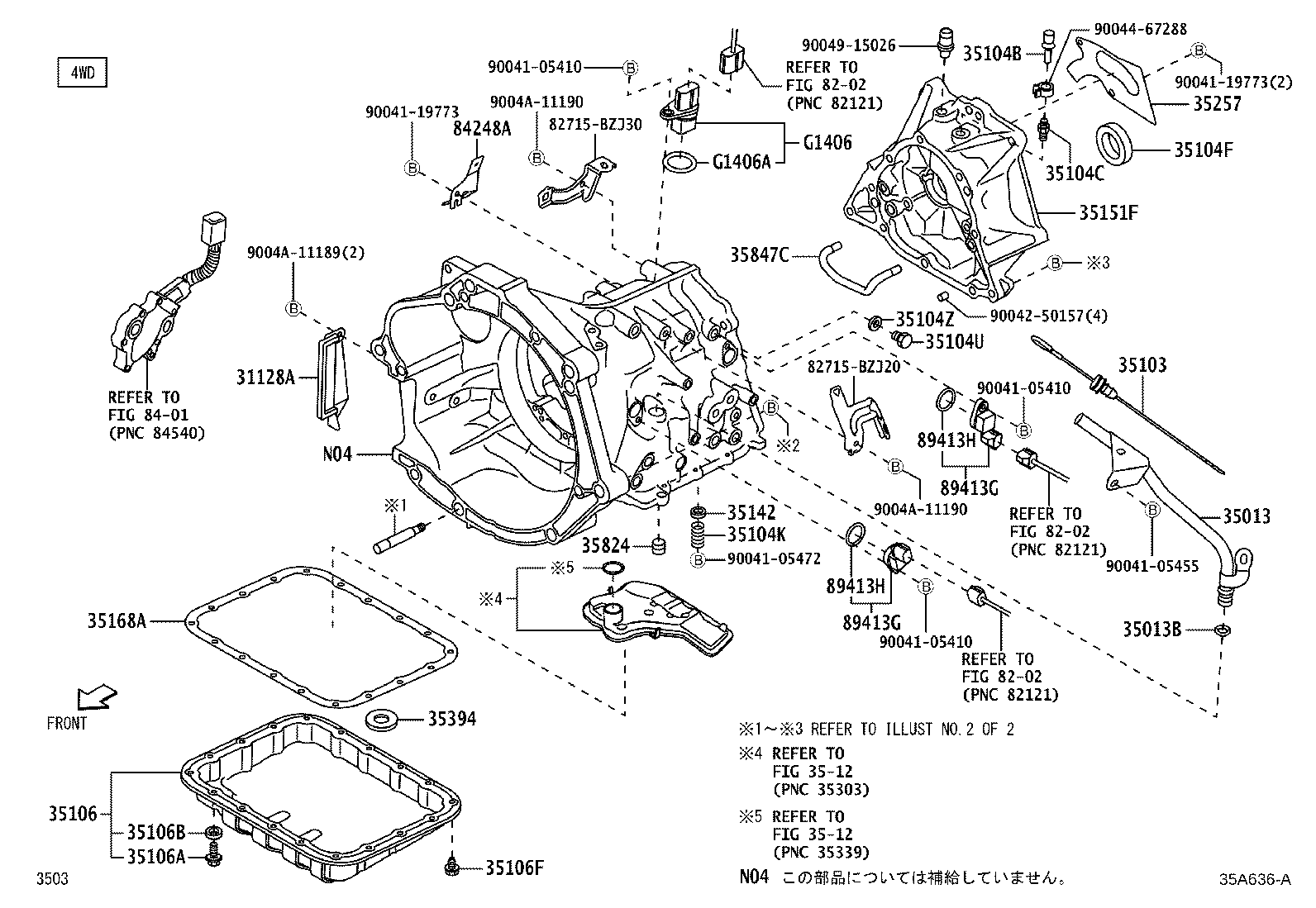

(2007- )S413..4FC
Click highlighted areas on diagram
ﾌﾞﾝｶｲｽﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31128A - COVER, CLUTCH HOUSING UNDER(ATM) | ||||
| 31123-BZ020 |
S403,413..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-B5070 |
S403,413..4FC |
1 | ||
| 35013B - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01193 |
S403,413..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-B5050 |
S403,413..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 35120-B0020 |
S403,413..4FC |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90049-15054 |
S403,413..4FC |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90043-16023 |
S413..4FC |
1 | ||
| 35104K - COMPRESSION SPRING, TRANSAXLE CASE | ||||
| 90045-01951 |
S403,413..4FC |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90041-05404 |
S403,413..4FC M10,L=14 |
6 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90044-30317 |
S403,413..4FC |
6 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35160-B1030 |
S403,413..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90043-41041 |
S403,413..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90044-30281 |
S403,413..4FC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90041-20203 |
S403,413..4FC M6,L=14.5 |
18 | ||
| 35142 - GASKET, TRANSMISSION CASE(ATM) | ||||
| 90044-30330 |
S403,413..4FC |
1 | ||
| 35151F - COVER, TRANSMISSION CASE, SIDE | ||||
| 35151-B5020 |
S413..4FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-B1060 |
S403,413..4FC |
1 | ||
| 35257 - PLATE, OIL GUIDE | ||||
| 35345-B1010 |
S413..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 33449-B2010 |
S403,413..4FC |
1 | ||
| 35824 - SEAL, BRAKE CYLINDER | ||||
| 35824-97501 |
S403,413..4FC |
1 | ||
| 35847C - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-B5010 |
S403,413..4FC |
1 | ||
| 84248A - CLAMP, SWITCH HARNESS | ||||
| 84248-B5060 |
S403,413..4FC |
1 | ||
| 89413G - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-97202 |
S403,413..4FC |
2 | ||
| 89413G - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-97202 |
S403,413..4FC |
2 | ||
| 89413H - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90043-01278 |
S403,413..4FC |
2 | ||
| 89413H - RING, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90043-01278 |
S403,413..4FC |
2 | ||
| G1406 - CONNECTOR SUB-ASSY, TRANS SOLENOID | ||||
| G1406-B1010 |
S403,413..4FC |
1 | ||
| G1406A - RING, O(FOR TRANS SOLENOID CONNECTOR) | ||||
| 44618-B1010 |
S403,413..4FC |
1 | ||
| Common parts | ||||
| 82715-BZJ20 | ||||
| 82715-BZJ30 | ||||
| 90041-05410 | ||||
| 90041-05455 | ||||
| 90041-05472 | ||||
| 90041-19773 | ||||
| 90042-50157 | ||||
| 90044-67288 | ||||
| 90049-15026 | ||||
| 9004A-11189 | ||||
| 9004A-11190 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8202 | ||||
| 8401 | ||||

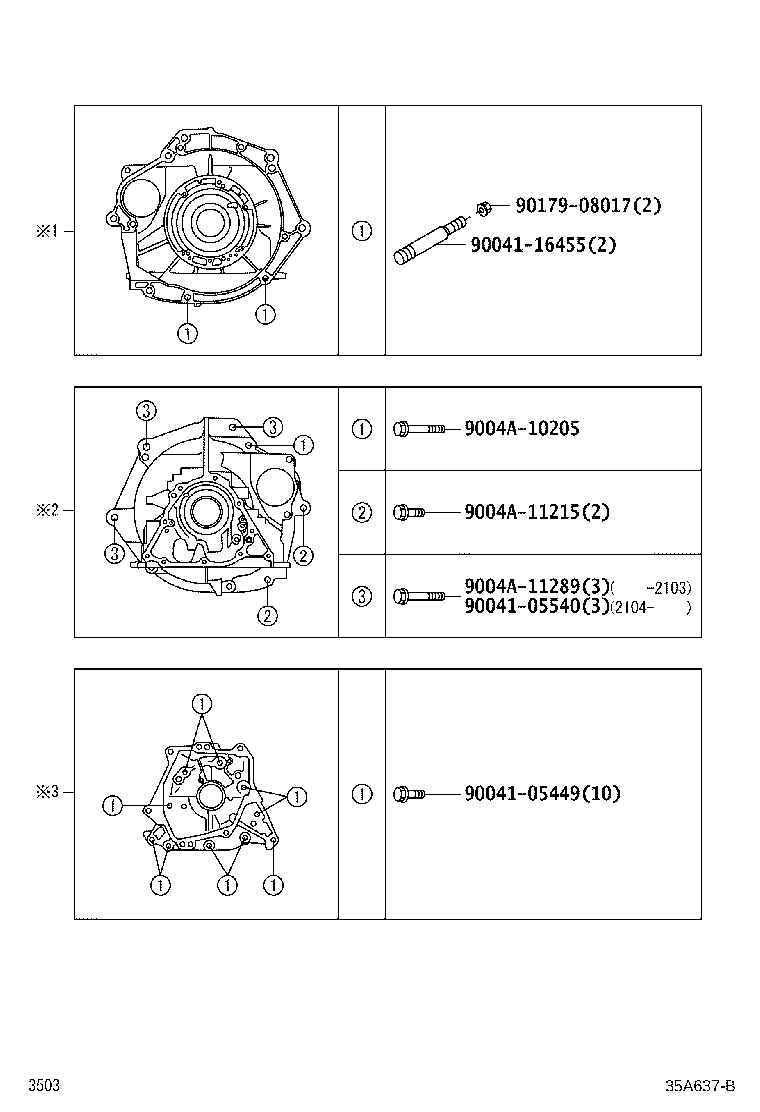

(2007- )S413..4FC
Click highlighted areas on diagram
ﾄﾘﾂｹﾎﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90041-05449 | ||||
| 90041-05540 | ||||
| 90041-16455 | ||||
| 9004A-10205 | ||||
| 9004A-11215 | ||||
| 9004A-11289 | ||||
| 90179-08017 | ||||
