S413M-ZQRFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )4FC

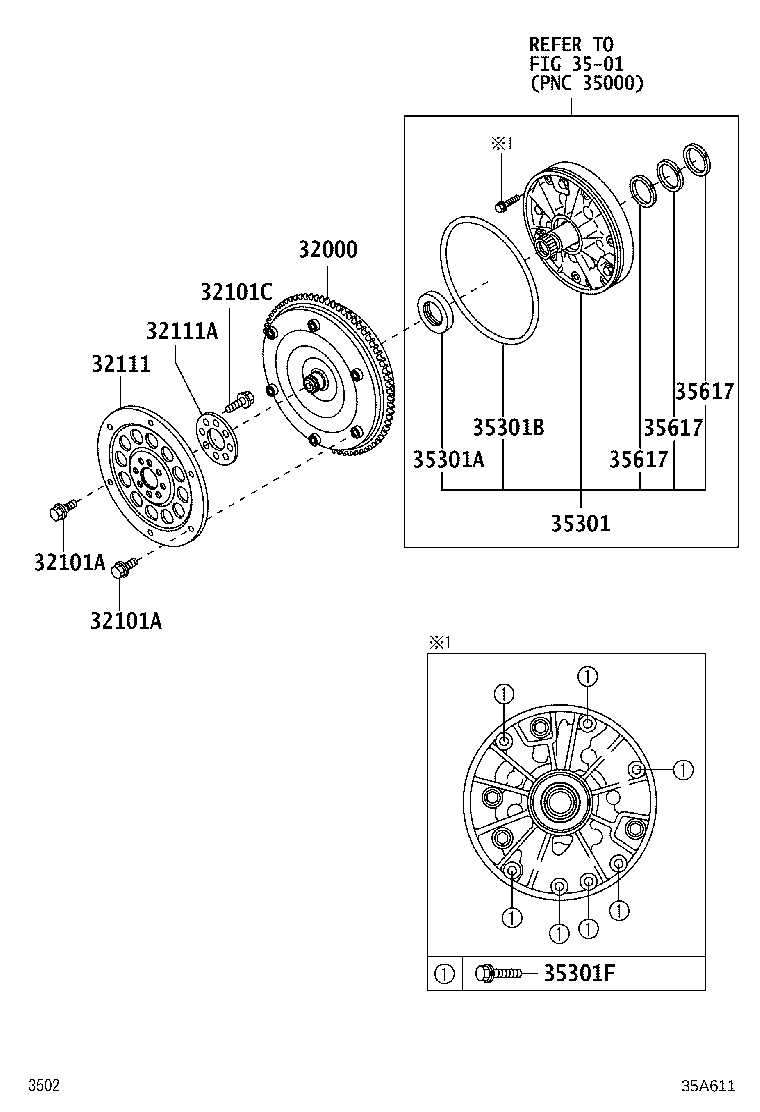

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-B5130 |
S403,413..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90041-05596 |
S403,413..4FC M8,L=9,ﾌﾞﾗｯｸ |
5 | ||
| 90041-05595 |
S403,413..4FC M8,L=9,ｼﾙﾊﾞｰ |
1 | ||
| 90041-05281 |
S403,413..4FC M8,L=9.5,ﾌﾞﾗｯｸ |
5 | ||
| 90041-05273 |
S403,413..4FC M8,L=9.5,ｼﾙﾊﾞｰ |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90041-05596 |
S403,413..4FC M8,L=9,ﾌﾞﾗｯｸ |
5 | ||
| 90041-05595 |
S403,413..4FC M8,L=9,ｼﾙﾊﾞｰ |
1 | ||
| 90041-05281 |
S403,413..4FC M8,L=9.5,ﾌﾞﾗｯｸ |
5 | ||
| 90041-05273 |
S403,413..4FC M8,L=9.5,ｼﾙﾊﾞｰ |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 9004A-10200 |
S403,413..4FC |
8 | ||
| 32111 - PLATE, PUMP IMPELLER DRIVE | ||||
| 32111-BZ070 |
S403,413..4FC |
1 | ||
| 32111A - PLATE(FOR PUMP IMPELLER DRIVE PLATE) | ||||
| 32113-BZ030 |
S403,413..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35310-B1050 |
S403,413..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90043-11336 |
S403,413..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90043-01161 |
S403,413..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90041-05122 |
S403,413..4FC M6,L=30 |
7 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35653-B1010 |
S403,413..4FC |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35653-B1010 |
S403,413..4FC |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35653-B1010 |
S403,413..4FC |
3 | ||
| Linked diagrams | ||||
| 3501 | ||||
