S413M-ZQRFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )4FC

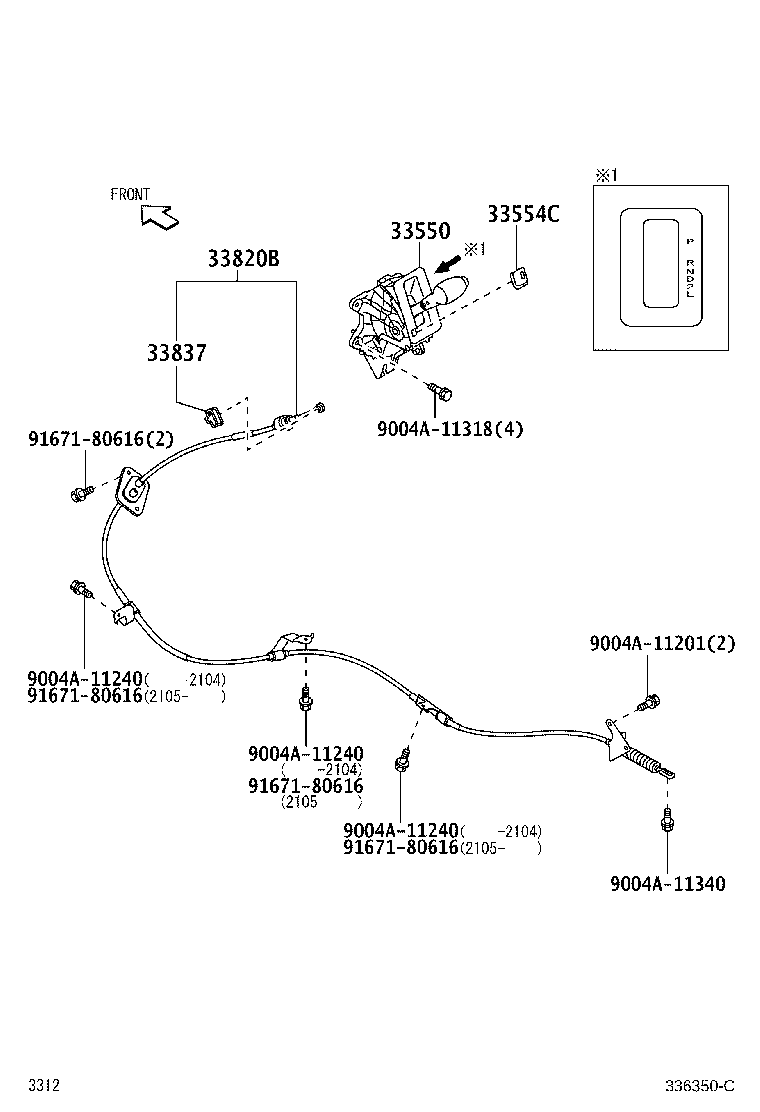

Click highlighted areas on diagram

ATM

diagram 33550 33554C 33820B 33837 9004A11201 9004A11240 9004A11240 9004A11240 9004A11318 9004A11340 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-BZ540C0

S403,413..4FC

BLACK,TRIM1#

 1
33550-BZ541C0

S403,413..4FC

BLACK,TRIM1#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-BZ030C0

S403,413..4FC

BLACK,TRIM1#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-BZ250

S403,413..4FC

 1
33837 - CLIP, TRANSMISSION CONTROL CABLE ADJUST
33837-B2010

S403,413..4FC

 1
Common parts
9004A-11201
9004A-11240
9004A-11318
9004A-11340
91671-80616
