S413M-ZQDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

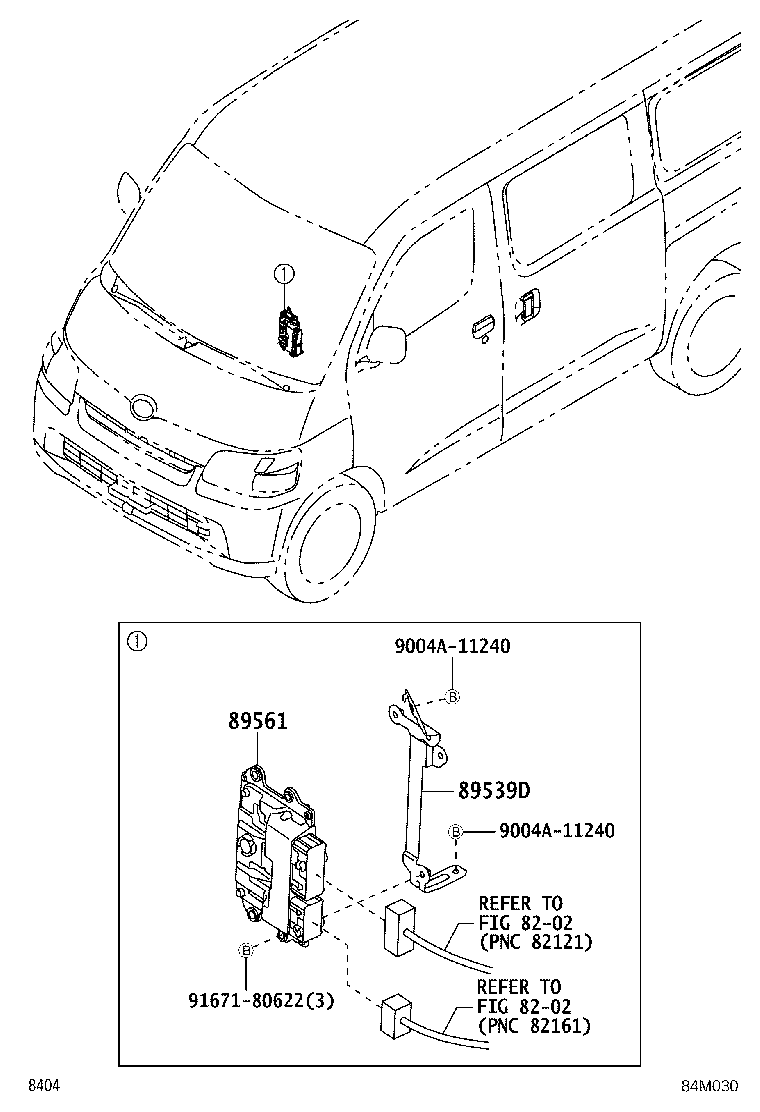

Click highlighted areas on diagram

diagram 8202 8202 89539D 89561 9004A11240 9004A11240 9167180622
Part # Description Qty Price
89539D - BRACKET, COMPUTER
89539-BZ490

S403,413

 1
89561 - COMPUTER, FUEL INJECTION
89560-BY390

S413..VAN..4FC

DENSO

 1
Common parts
9004A-11240
91671-80622
Linked diagrams
8202
