S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN ; (2010- )IV

Click highlighted areas on diagram

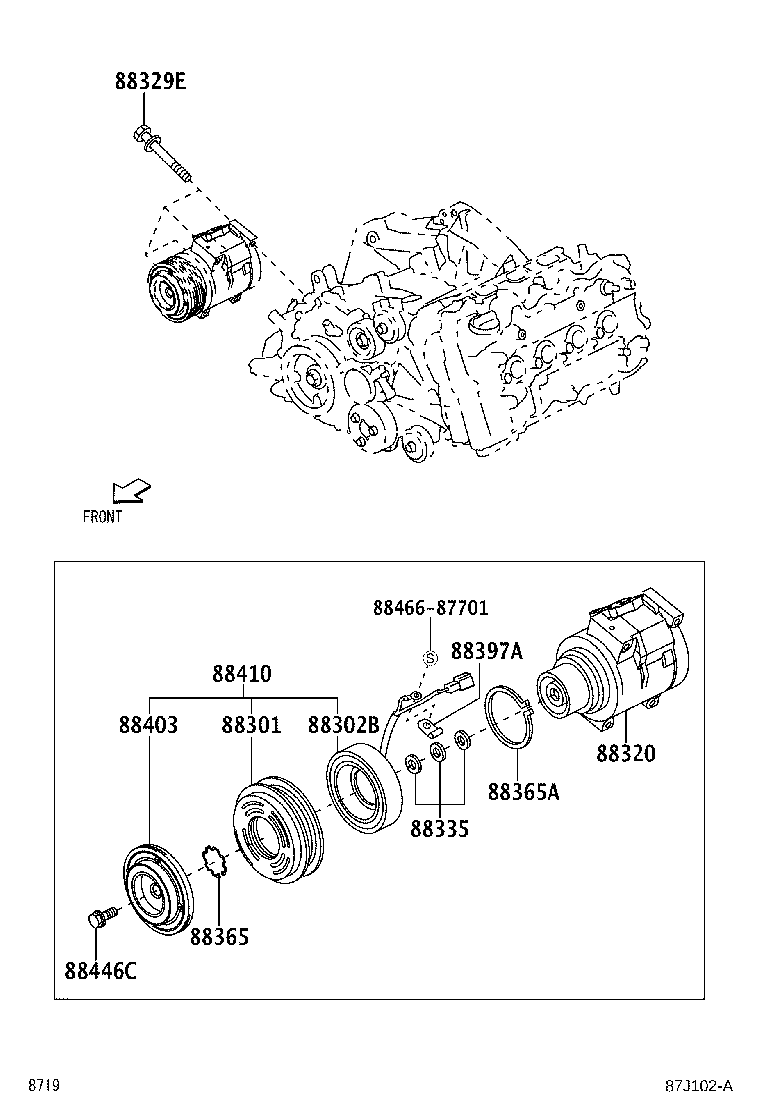

diagram 88301 88302B 88320 88329E 88335 88365 88365A 88397A 88403 88410 88446C 8846687701
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-BZ070

S403,413..IV;S403,413..VAN

 1
88302B - STATOR, MAGNET CLUTCH
88411-BZ250

S403,413..IV;S403,413..VAN

 1
88320 - COMPRESSOR ASSY, COOLER
88320-BZ120

S403,413..IV;S403,413..VAN

 1
88329E - BOLT, COMPRESSOR, NO.1
88329-BZ050

S403,413

 4
88335 - GASKET KIT, OVERHAUL
88335-14020

S403,413

 1
88365 - RING, SNAP
90099-07065

S403,413..IV;S403,413..VAN

 1
88365A - RING, SNAP (FOR COMPRESSOR)
90099-07114

S403,413

 1
88397A - CLIP, COMPRESSOR
85369-87702

S403,413

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-87301

S403,413..IV;S403,413..VAN

 1
88410 - CLUTCH ASSY, MAGNET
88410-BZ370

S403,413..IV;S403,413..VAN

 1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349

S403,413

 1
Common parts
88466-87701
