S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

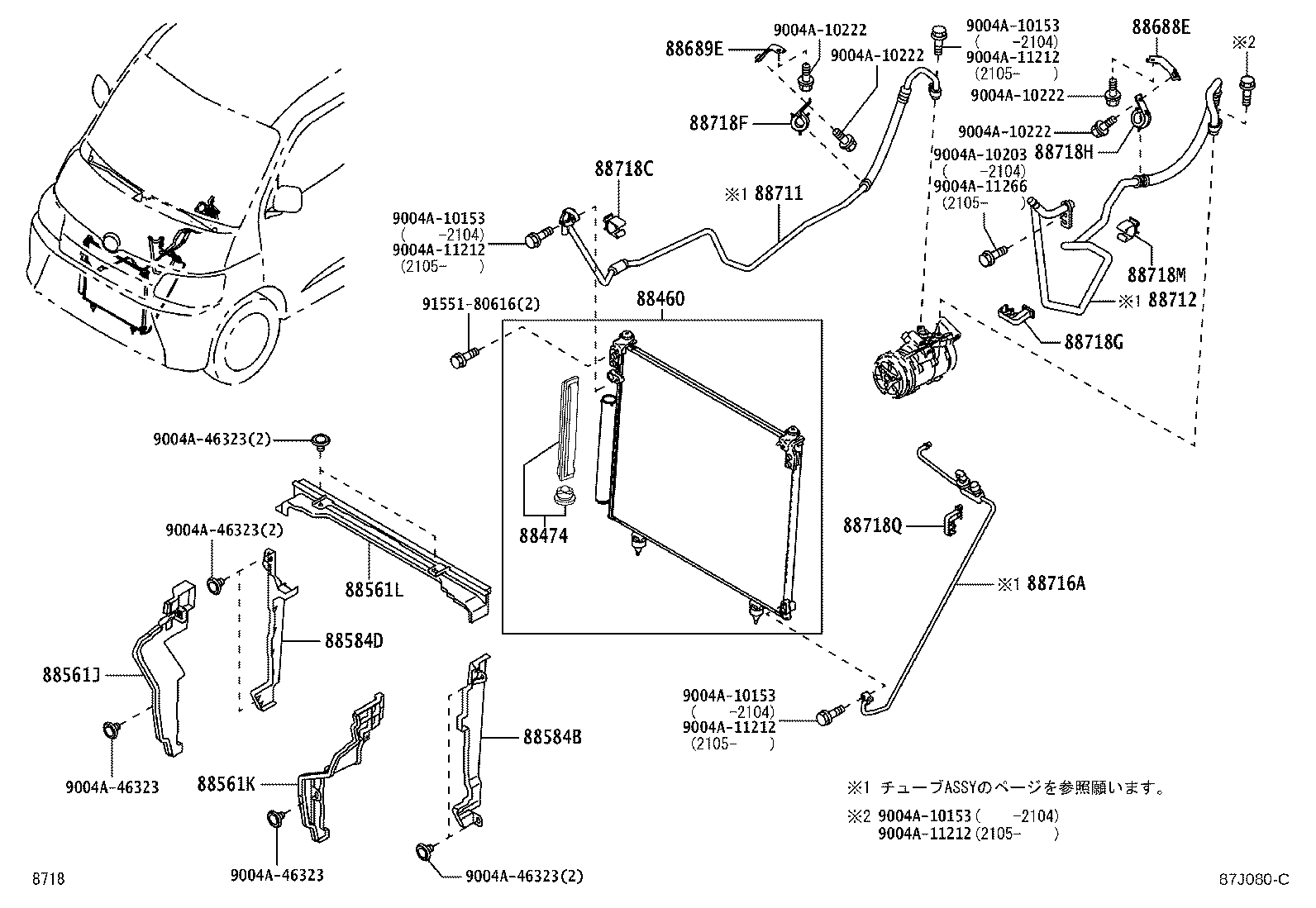

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-BZ310 |
S403,413..VAN |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-B2010 |
S403,413..CBU ﾄﾞﾗｲﾔ,ﾌｨﾙﾀ付き |
1 | ||
| 88561J - GRILLE, AIR INLET NO.1 | ||||
| 88561-BZ640 |
S403,413 |
1 | ||
| 88561K - GRILLE, AIR INLET NO.2 | ||||
| 88561-BZ660 |
S403,413 |
1 | ||
| 88561L - GRILLE, AIR INLET NO.4 | ||||
| 88561-BZ600 |
S403,413 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88561-BZ670 |
S403,413 |
1 | ||
| 88584D - GUIDE, COOLER AIR | ||||
| 88561-BZ650 |
S403,413 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-BZ240 |
S403,413..CBU |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-BZ250 |
S403,413..CBU |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-BZ740 |
S403,413..VAN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-BZ810 |
S403,413..VAN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-BZE50 |
S403,413..CBU |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ640 |
S403,413..CBU |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ470 |
S403,413..CBU |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ570 |
S403,413..CBU |
1 | ||
| 88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ480 |
S403,413..CBU |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-BZ580 |
S403,413..CBU |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-BZ570 |
S403,413..CBU |
1 | ||
| Common parts | ||||
| 9004A-10153 | ||||
| 9004A-10203 | ||||
| 9004A-10222 | ||||
| 9004A-11212 | ||||
| 9004A-11266 | ||||
| 9004A-46323 | ||||
| 91551-80616 | ||||

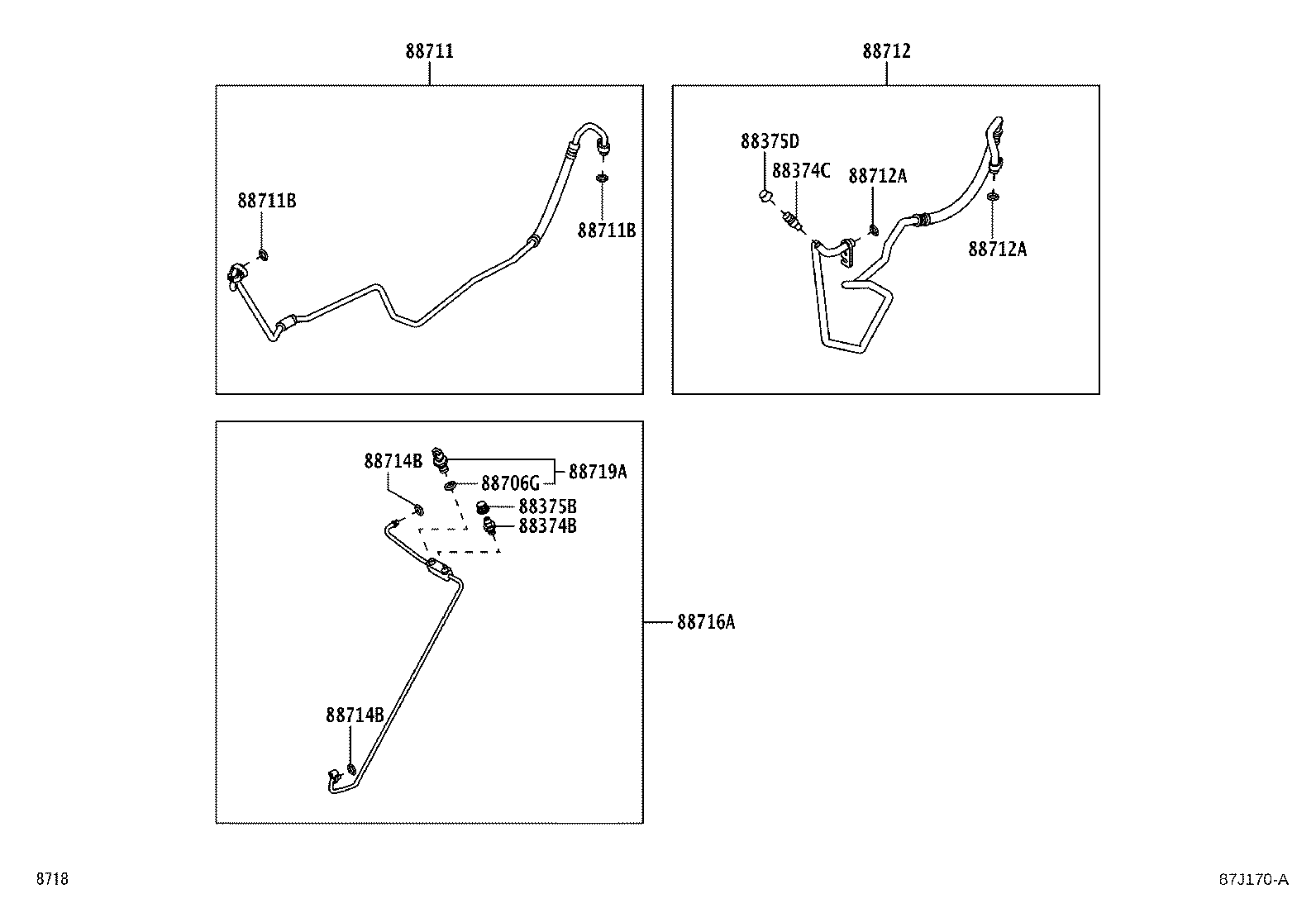

ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
ﾁｭｰﾌﾞASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
S403,413..CBU |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
S403,413..CBU |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
S403,413..CBU |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
S403,413..CBU |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 15188-B5090 |
S403,413..CBU |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-BZ740 |
S403,413..VAN |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
S403,413..CBU |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
S403,413..CBU |
2 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-BZ810 |
S403,413..VAN |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
S403,413..CBU |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
S403,413..CBU |
2 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
S403,413..CBU |
2 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
S403,413..CBU |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-BZE50 |
S403,413..CBU |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-B2020 |
S403,413..CBU |
1 | ||
