S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

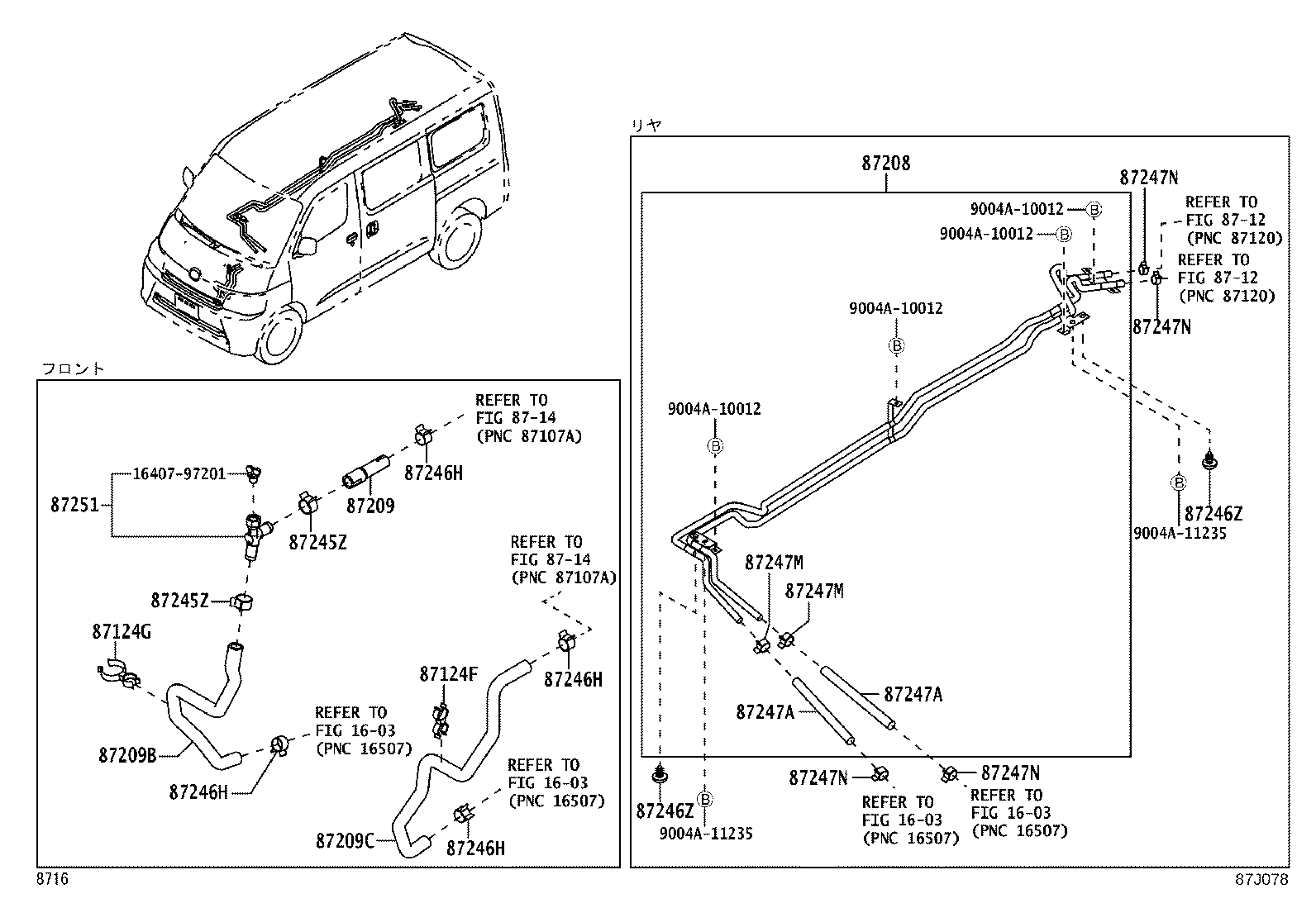

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1640797201 8712 8712 87124F 87124G 8714 8714 87208 87209 87209B 87209C 87245Z 87245Z 87246H 87246H 87246H 87246H 87246Z 87246Z 87247A 87247A 87247M 87247M 87247N 87247N 87247N 87247N 87251 9004A10012 9004A10012 9004A10012 9004A10012 9004A11235 9004A11235
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
87124-BZ030

S403,413

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-BZ040

S403,413

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-BZ020

S413..VAN

 1
87209 - HOSE SUB-ASSY, WATER
87245-BZ110

S403,413

 1
87209B - HOSE SUB-ASSY, WATER, B
87246-BZ200

S403,413

 1
87209C - HOSE SUB-ASSY, WATER, C
87245-BZ260

S403,413

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
9004A-46351

S403,413

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
9004A-46351

S403,413

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67472

S403,413

 4
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67472

S403,413

 4
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67472

S403,413

 4
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67472

S403,413

 4
87246Z - CLIP
21576-BZ030

S413..VAN

 2
87246Z - CLIP
21576-BZ030

S413..VAN

 2
87247A - HOSE, HEATER WATER, A
87246-BZ060

S413..VAN

 2
87247A - HOSE, HEATER WATER, A
87246-BZ060

S413..VAN

 2
87247M - CLIP, HOSE
90044-67472

S413..VAN

 2
87247M - CLIP, HOSE
90044-67472

S413..VAN

 2
87247N - CLIP, HOSE
90044-67472

S413..VAN

 4
87247N - CLIP, HOSE
90044-67472

S413..VAN

 4
87247N - CLIP, HOSE
90044-67472

S413..VAN

 4
87247N - CLIP, HOSE
90044-67472

S413..VAN

 4
87251 - JOINT OR UNION, WATER HOSE THROUGH
16035-B0010

S403,413

 1
Common parts
16407-97201
9004A-10012
9004A-11235
Linked diagrams
1603
8712
8714
