S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

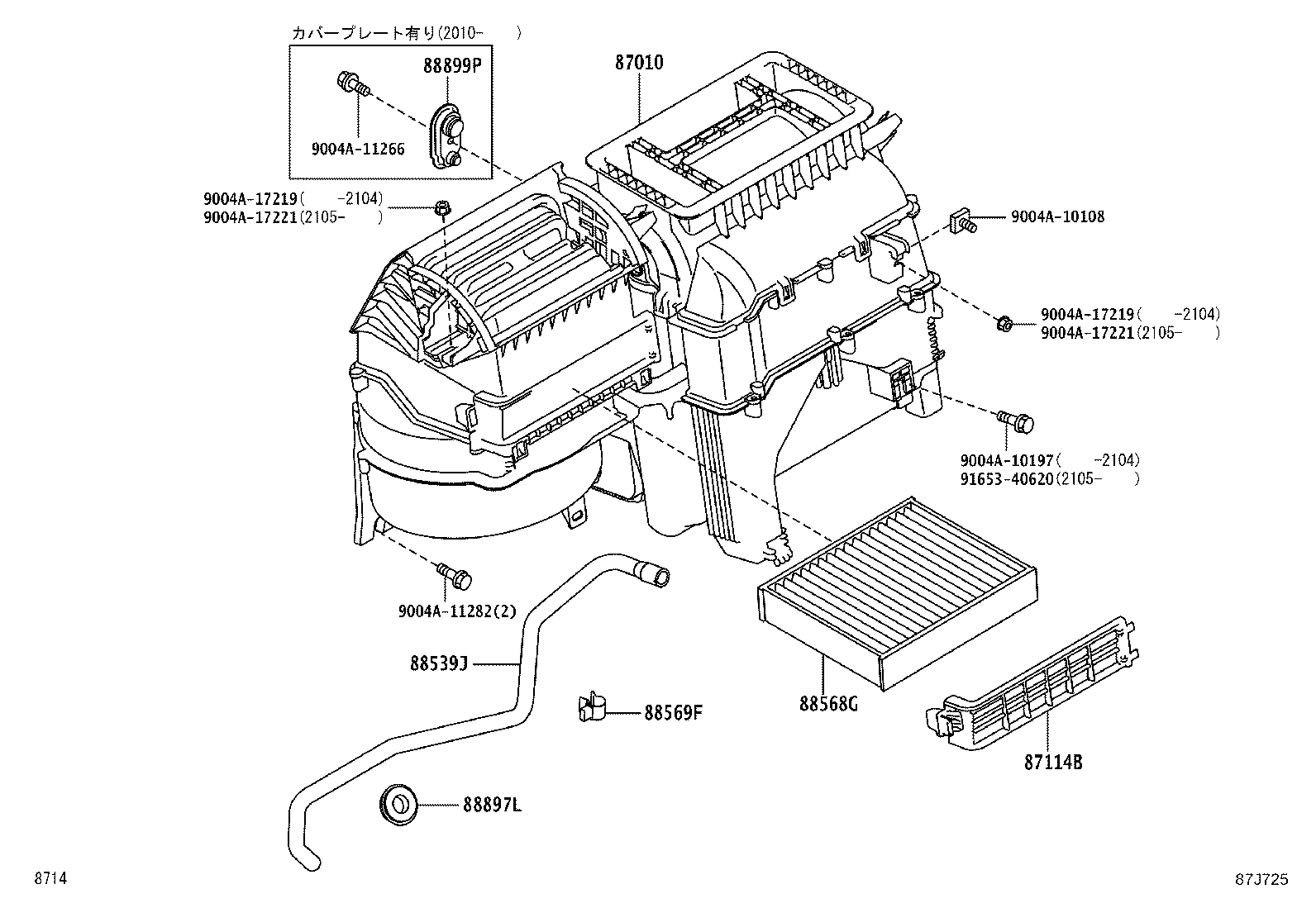

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ660 |
S403,413..VAN |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-BZ020 |
S403,413 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-BZ440 |
S403,413 |
1 | ||
| 88568G - FILTER, AIR | ||||
| 88568-BZ011 |
S403,413 |
1 | ||
| 88569F - CLAMP | ||||
| 90044-64886 |
S403,413 |
1 | ||
| 88897L - GROMMET (FOR DRAIN HOSE) | ||||
| 88897-87Z13 |
S403,413 |
1 | ||
| Common parts | ||||
| 9004A-10108 | ||||
| 9004A-10197 | ||||
| 9004A-11266 | ||||
| 9004A-11282 | ||||
| 9004A-17219 | ||||
| 9004A-17221 | ||||
| 91653-40620 | ||||
