S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

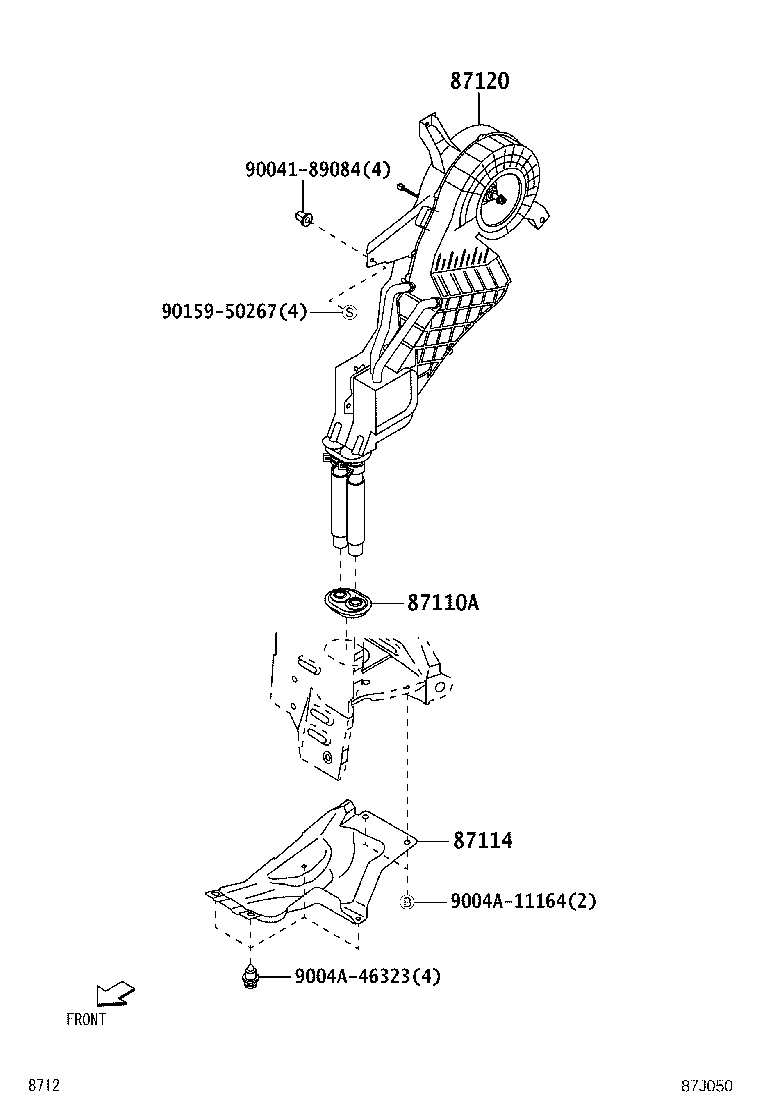

Click highlighted areas on diagram

diagram 87110A 87114 87120 9004189084 9004A11164 9004A46323 9015950267
Part # Description Qty Price
87110A - GROMMET (FOR HEATER PIPE)
88897-BZ140

S413..VAN

 1
87114 - COVER, HEATER
87114-BZ120

S413..VAN

 1
87120 - HEATER ASSY, REAR
87110-BZ040

S413..VAN

 1
Common parts
90041-89084
9004A-11164
9004A-46323
90159-50267
