S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

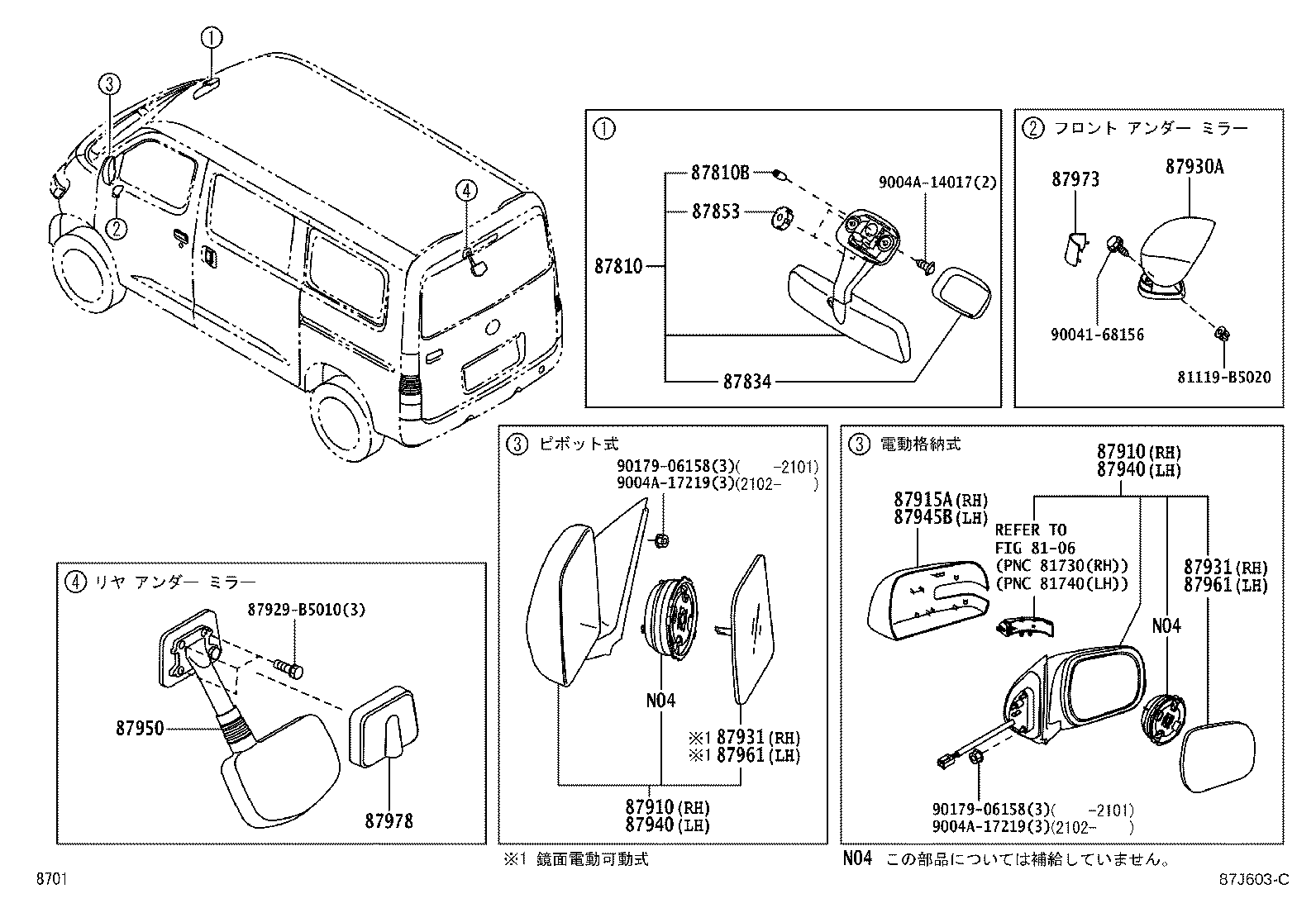

Click highlighted areas on diagram

diagram 8106 81119B5020 87810 87810B 87834 87853 87910 87910 87915A 87929B5010 87930A 87931 87931 87940 87940 87945B 87950 87961 87961 87973 87978 9004168156 9004A14017 9004A17219 9004A17219 9017906158 9017906158
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-B5040E0

S403,413

-

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90049-51157

S403,413

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-B5010

S403,413

 1
87853 - BASE, INNER REAR VIEW MIRROR
87852-B5010

S403,413

 2
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-BZ331

S403,413..GL

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-BZ331

S403,413..GL

 1
87915A - COVER, OUTER MIRROR, RH
87915-BZ610B0

S403,413..GL

SILVER M.M.,1E7

 1
87915-BZ610A0

S403,413..GL

WHITE,W09

 1
87930A - MIRROR ASSY, OUTER UNDER VIEW
87930-BZ010

S403,413

 1
87931 - OUTER MIRROR, RH
87931-BZ021

S403,413..GL

 1
87931 - OUTER MIRROR, RH
87931-BZ021

S403,413..GL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-BZ291

S403,413..GL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-BZ291

S403,413..GL

 1
87945B - COVER, OUTER MIRROR, LH
87945-BZ610B0

S403,413..GL

SILVER M.M.,1E7

 1
87945-BZ610A0

S403,413..GL

WHITE,W09

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-BZ021

S403,413..VAN

 1
87961 - MIRROR OUTER, LH
87961-BZ021

S403,413..GL

 1
87961 - MIRROR OUTER, LH
87961-BZ021

S403,413..GL

 1
87973 - COVER, OUTER UNDER RR VIEW MIRROR
87973-BZ010

S403,413

 1
87978 - COVER, OUTER UNDER REAR VIEW MIRROR, REAR
87973-BZ020

S403,413..VAN

 1
Common parts
81119-B5020
87929-B5010
90041-68156
9004A-14017
9004A-17219
90179-06158
Linked diagrams
8106
