S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

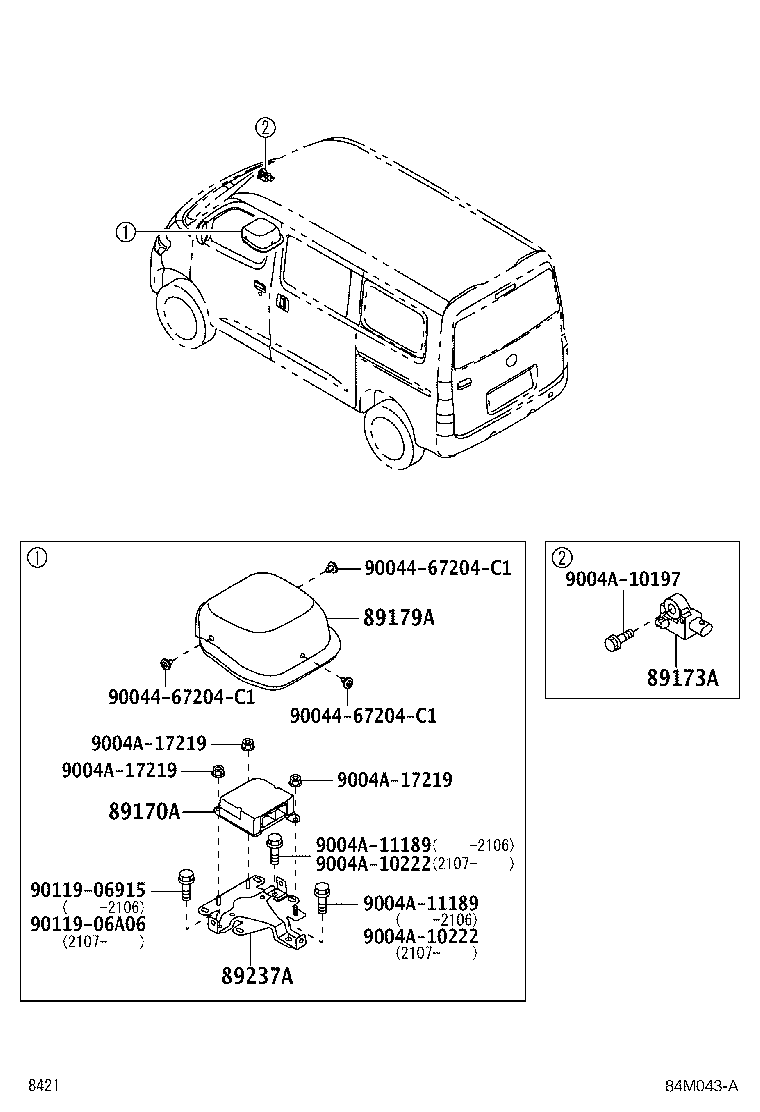

Click highlighted areas on diagram

diagram 89170A 89173A 89179A 89237A 9004467204C1 9004467204C1 9004467204C1 9004A10197 9004A10222 9004A10222 9004A11189 9004A11189 9004A17219 9004A17219 9004A17219 9011906915 9011906A06
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-BZ630

S403,413

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-B2240

S403,413

 1
89179A - COVER, AIR BAG SENSOR
89179-BZ020B0

S403,413

DK.GRAY,TRIM1#

 1
89237A - BRACKET, COMPUTER UNIT
89237-BZ070

S403,413

 1
Common parts
90044-67204C1
9004A-10197
9004A-10222
9004A-11189
9004A-17219
90119-06915
90119-06A06
