S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

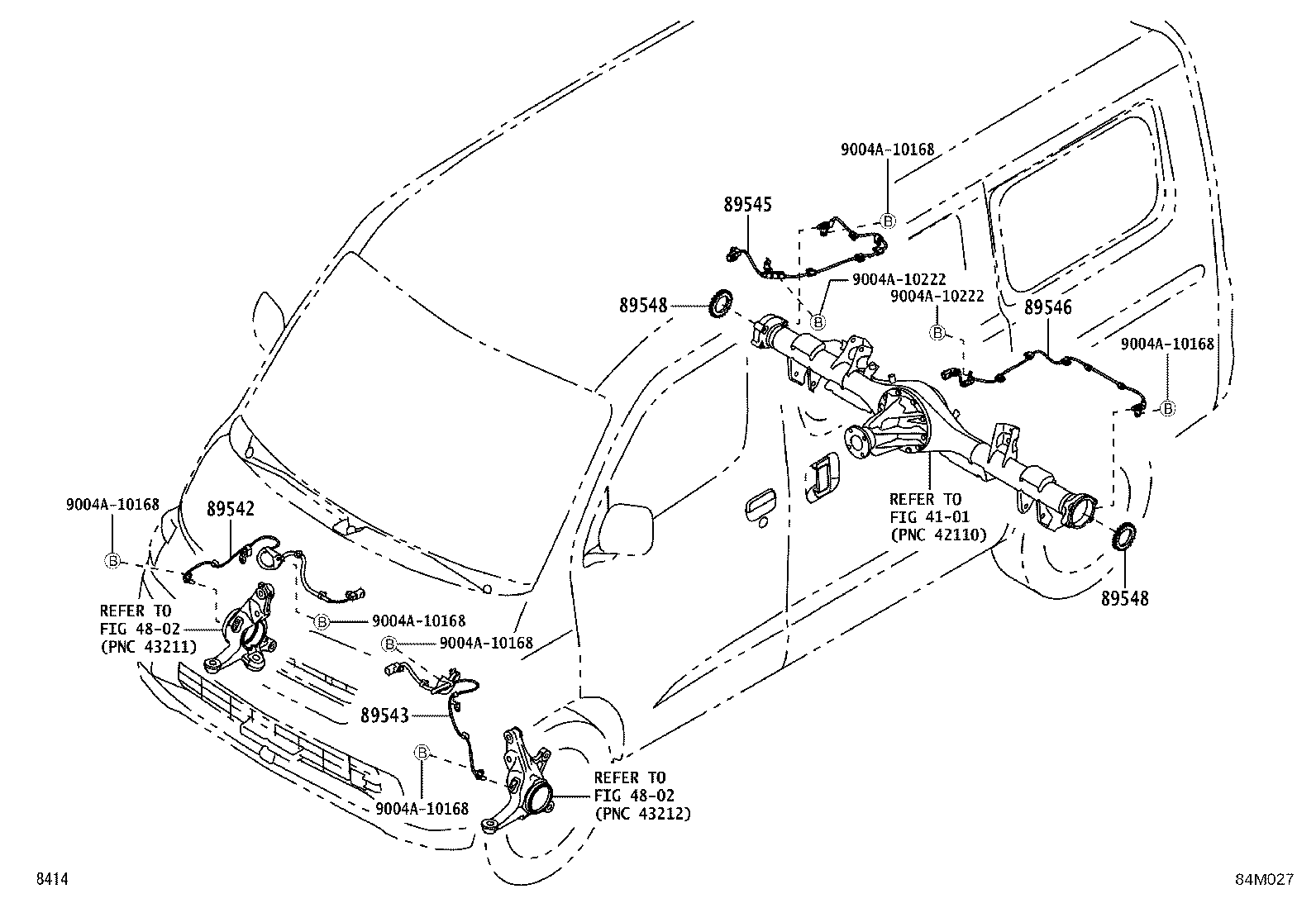

Click highlighted areas on diagram

diagram 4101 4802 4802 89542 89543 89545 89546 89548 89548 9004A10168 9004A10168 9004A10168 9004A10168 9004A10168 9004A10168 9004A10222 9004A10222
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-BZ110

S413

 1
89543 - SENSOR, SPEED, FRONT LH
89543-BZ080

S413

 1
89545 - SENSOR, SPEED, REAR RH
89545-BZ060

S403,413..VAN

 1
89546 - SENSOR, SPEED, REAR LH
89546-BZ060

S403,413..VAN

 1
89548 - ROTOR, SKID CONTROL SENSOR
89548-BZ020

S403,413

 2
89548 - ROTOR, SKID CONTROL SENSOR
89548-BZ020

S403,413

 2
Common parts
9004A-10168
9004A-10222
Linked diagrams
4101
4802
