S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

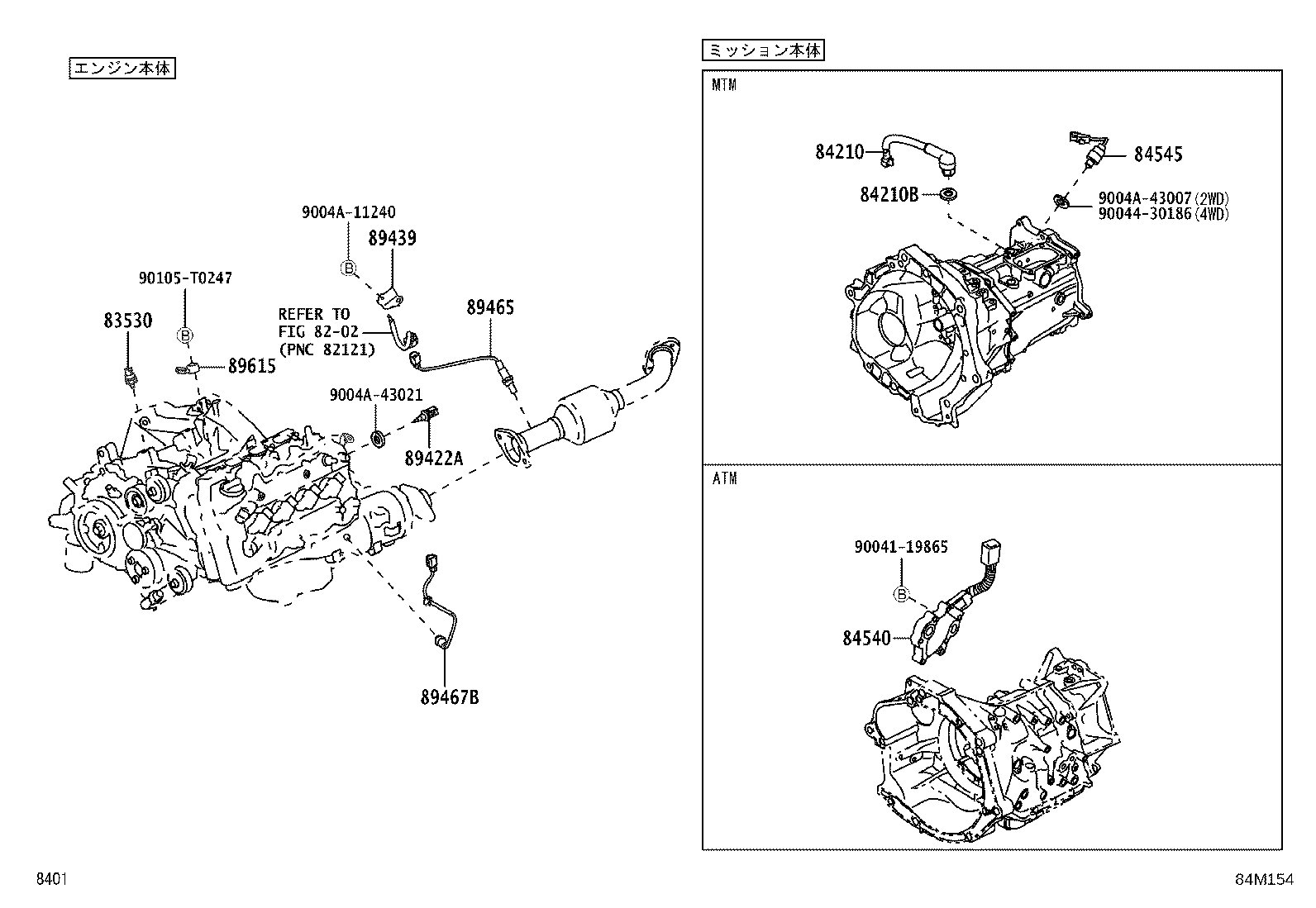

ILLUST NO. 1 OF 6(2007- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ

diagram 8202 83530 84210 84210B 84540 84545 89422A 89439 89465 89467B 89615 9004119865 9004430186 9004A11240 9004A43007 9004A43021 90105T0247
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-52050

S403,413

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-B4010

S413..5F

 1
84210B - GASKET, BACK-UP LAMP SWITCH
90044-30186

S413..5F

 1
84545 - SWITCH, NEUTRAL POSITION
84540-B5011

S403,413..5F

 1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ030

S403,413

 1
89439 - BRACKET, SENSOR
8946A-BZ020

S403,413

 1
89465 - SENSOR, OXYGEN
89465-BZ520

S403,413

 1
89467B - SENSOR, AIR FUEL RATIO
89467-BZ050

S403,413

 1
89615 - SENSOR, KNOCK CONTROL
89615-BZ070

S403,413

 1
Common parts
90041-19865
90044-30186
9004A-11240
9004A-43007
9004A-43021
90105-T0247
Linked diagrams
8202

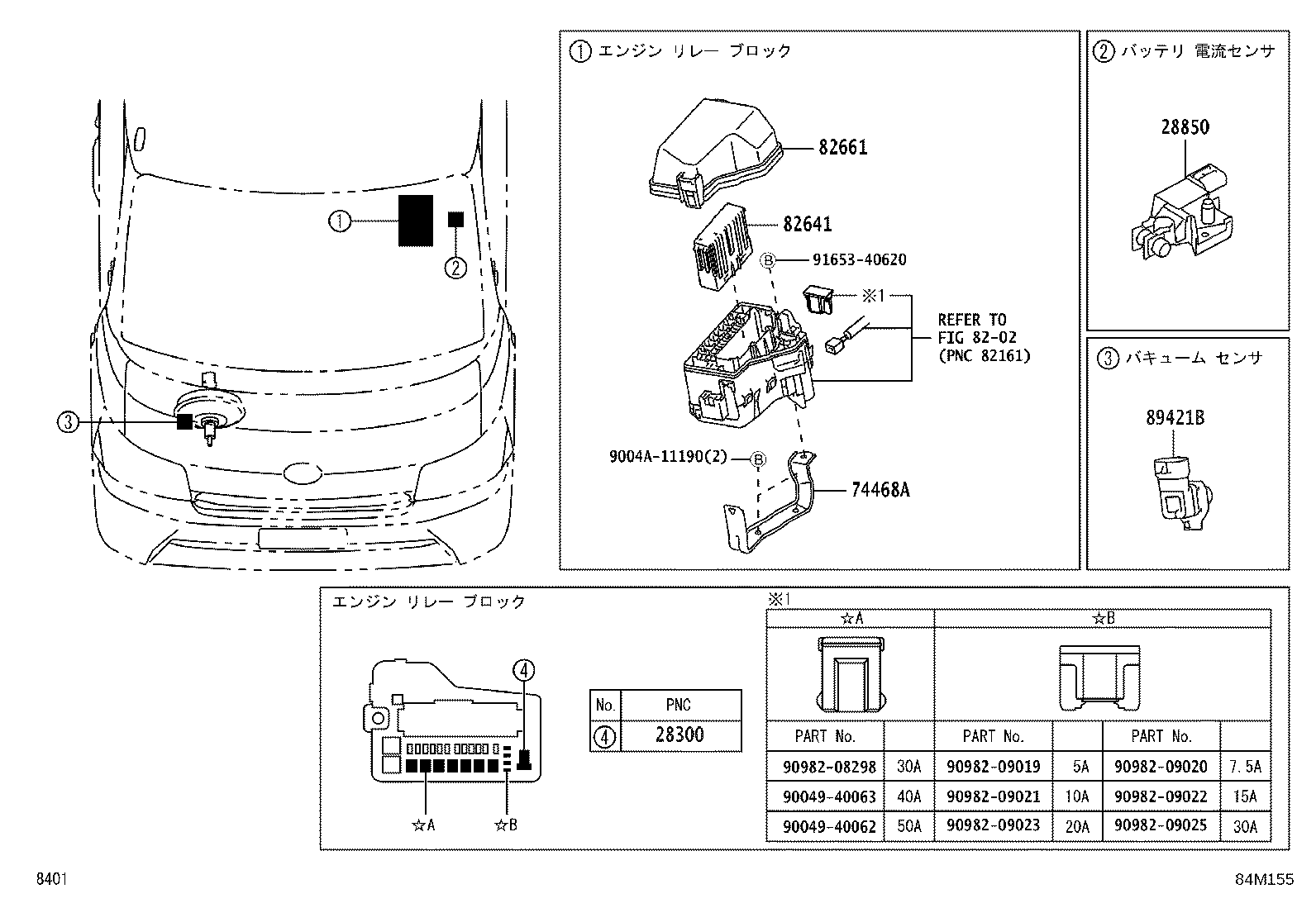

ILLUST NO. 2 OF 6(2007- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 28300 28850 74468A 8202 82641 82661 89421B 9004940062 9004940063 9004A11190 9098208298 9098209019 9098209020 9098209021 9098209022 9098209023 9098209025 9165340620
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
9004A-98006

2NRVE..S403,413

 1
28850 - SENSOR ASSY, BATTERY CURRENT
28850-BZ020

2NRVE..S403,413

 1
74468A - BRACKET, RELAY BLOCK
74468-BZ110

S403,413

 1
82641 - RELAY, INTEGRATION NO.1
82641-BZ020

S403,413

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-BZ170

S403,413

 1
89421B - SENSOR, VACUUM
89421-B2030

S403,413

 1
Common parts
90049-40062
90049-40063
9004A-11190
90982-08298
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09025
91653-40620
Linked diagrams
8202

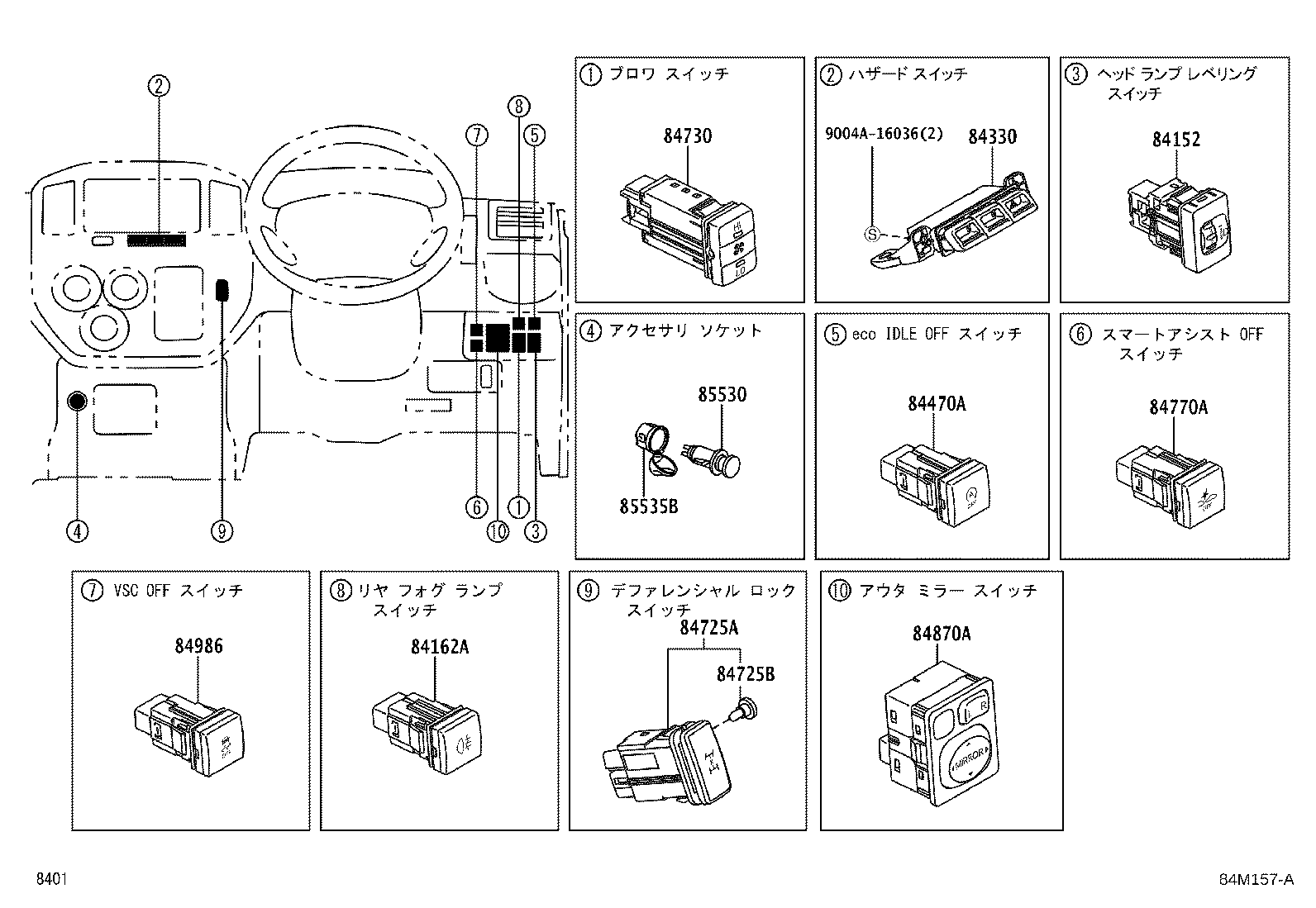

ILLUST NO. 3 OF 6(2007- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.1

diagram 81713 82600 82616 82672A 82674 83650 84340 84345 84380 84520 84520 85916L 89111 9004170330 9004170330 9004A16080 9004A16080 9004A17219 90105T0120 9098208306 9098209019 9098209020 9098209021 9098209022 9098209023 9098209024 9165340620
Part # Description Qty Price
81713 - HOLDER, FUSEE
62190-BZ010

S403,413

 1
82600 - BLOCK ASSY, FUSE
82600-BZB40

S403,413..DXED,GL

 1
82600-BZB42

S403,413..DXED,GL

 1
82616 - PULLER, FUSE
82616-58010

S403,413

 1
82672A - COVER, JUNCTION BLOCK
82672-BZ010

S403,413

 1
82674 - COVER, JUNCTION BLOCK LOWER
82674-BZ010

S403,413

 1
83650 - FUSEE
90049-86005

S403,413

 1
84340 - SWITCH ASSY, STOP LAMP
84340-B2060

S403,413

 1
84340-B2061

S403,413

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

S403,413

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-BZ051

S403,413

 1
84520 - SWITCH ASSY, CLUTCH START
84520-97202

S403,413..5F

 2
84520 - SWITCH ASSY, CLUTCH START
84520-97202

S403,413..5F

 2
89111 - COMPUTER, NETWORK GATEWAY
89111-B5020

S403,413

 1
Common parts
90041-70330
9004A-16080
9004A-17219
90105-T0120
90982-08306
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09024
91653-40620

ILLUST NO. 4 OF 6(2007- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.2

diagram 84152 84162A 84330 84470A 84725A 84725B 84730 84770A 84870A 84986 85530 85535B 9004A16036
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-BZ040

S403,413

 1
84162A - SWITCH, REAR FOG LAMP
84165-BZ060

S413

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-BZ250

S403,413..VAN

 1
84470A - SWITCH ASSY, ECORUN CANCEL
84470-BZ030

S403,413

 1
84725A - SWITCH, DIFFERENTIAL LOCK
84725-B4020

S413

 1
84725B - BLUB, DIFFERENTIAL LOCK SWITCH
84999-B5020

S413

14V 0.84W

 1
84730 - SWITCH ASSY, HEATER BLOWER
84730-B5060

S413..VAN

 1
84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL
84770-BZ030

S403,413

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-BZ200

S403,413..GL

 1
84986 - SWITCH, VEHICLE STABILITY CONTROL
84986-BZ060

S403,413

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

S403,413

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-BZ040

S403,413

 1
Common parts
9004A-16036

ILLUST NO. 5 OF 6(2007- )

Click highlighted areas on diagram

ﾄﾞｱ&ｼｰﾄ

diagram 7751 83320 84231A 84261B 84262B 84736 84810 84820 87346M 89953 9004109272 9004A11248 9004A11248
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83301-BZ090

S403,413

 1
84231A - SWITCH, COURTESY LAMP
84231-BZ010

S403,413..VAN

 4
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-B5050

S403,413..VAN

 2
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-B5070

S403,413..VAN

 2
84736 - SPACER, HEATER BLOWER SWITCH
81124-BZ010

S403,413..VAN

厚さ=1.0

 1
81124-BZ020

S403,413..VAN

厚さ=2.0

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84801-BZ071B0

S403,413..DXED,GL

DK.GRAY,TRIM1#

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84802-BZ190B0

S403,413..DXED,GL

DK.GRAY,TRIM1#

 1
87346M - RELAY, REAR HEATER
9004A-98006

S413..VAN

 2
89953 - SENSOR, BELT WARNING OCCUPANT DETECTION
89953-B5010

S403,413

 1
Common parts
90041-09272
9004A-11248
Linked diagrams
7751

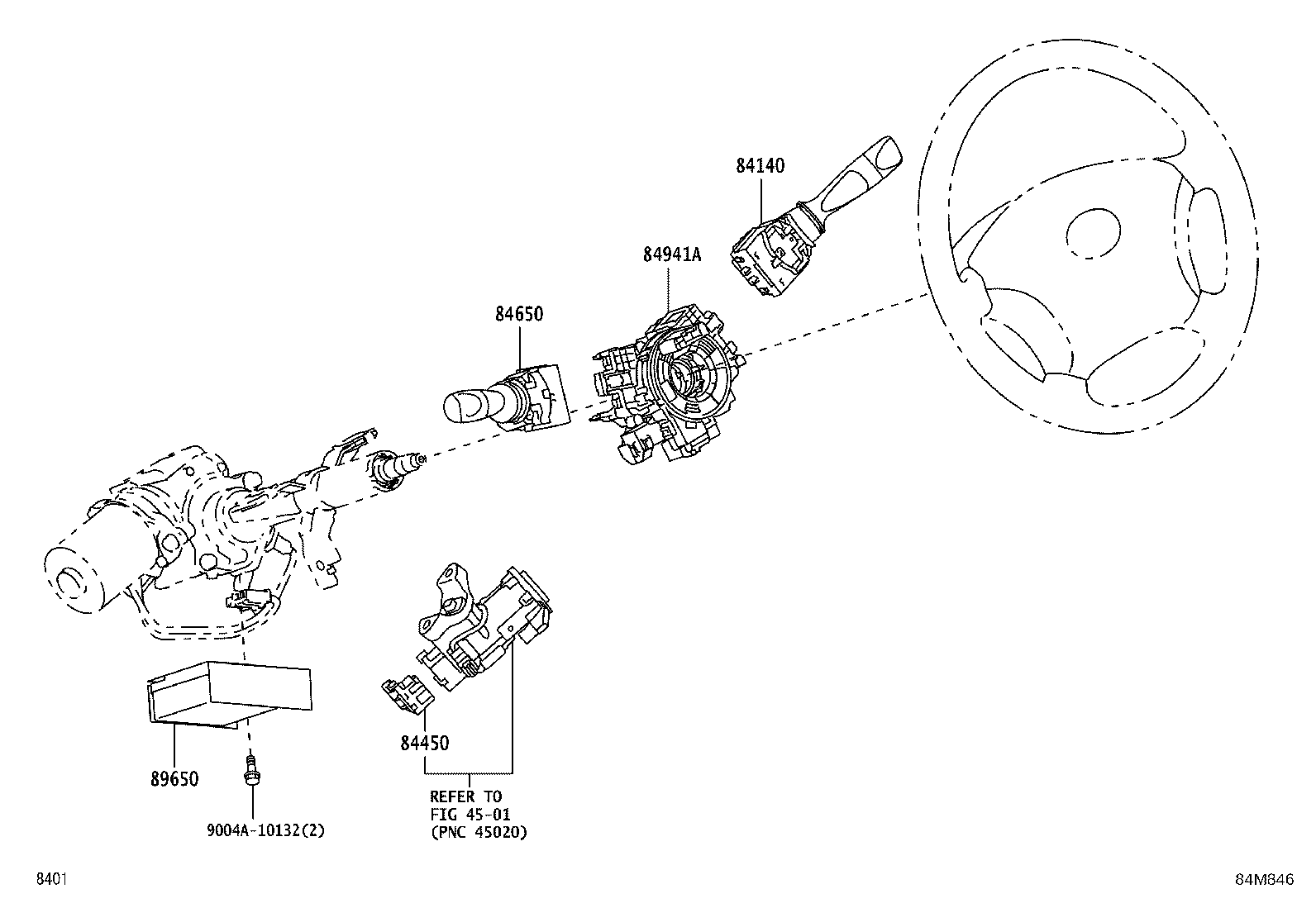

ILLUST NO. 6 OF 6(2007- )

Click highlighted areas on diagram

ｽﾃｱﾘﾝｸﾞ

diagram 4501 84140 84450 84650 84941A 89650 9004A10132
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-BZ230

S403,413

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-B2040

S403,413

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-BZ320

S403..GL;S413..VAN

 1
84941A - BASE, SWITCH
84941-BZ180

S403,413

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-B5130

S403,413

古河電気

 1
Common parts
9004A-10132
Linked diagrams
4501
