S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

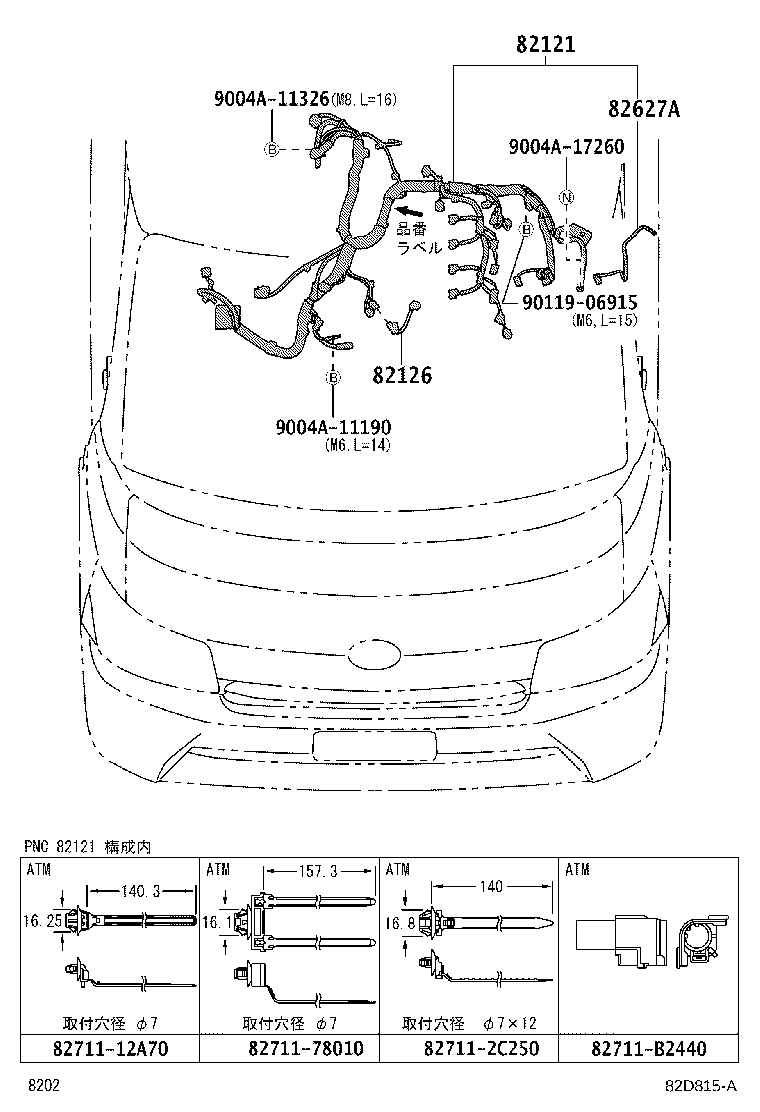

ILLUST NO. 1 OF 6(2007- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82126 82627A 8271112A70 827112C250 8271178010 82711B2440 9004A11190 9004A11326 9004A17260 9011906915
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-BZK80

S403,413..5F

品番ﾗﾍﾞﾙ有り

 1
82126 - WIRE, ENGINE
82126-BZ070

S403,413

 1
82627A - WIRE, FUSIBLE LINK
82627-BZ170

S403,413

 1
Common parts
82711-12A70
82711-2C250
82711-78010
82711-B2440
9004A-11190
9004A-11326
9004A-17260
90119-06915

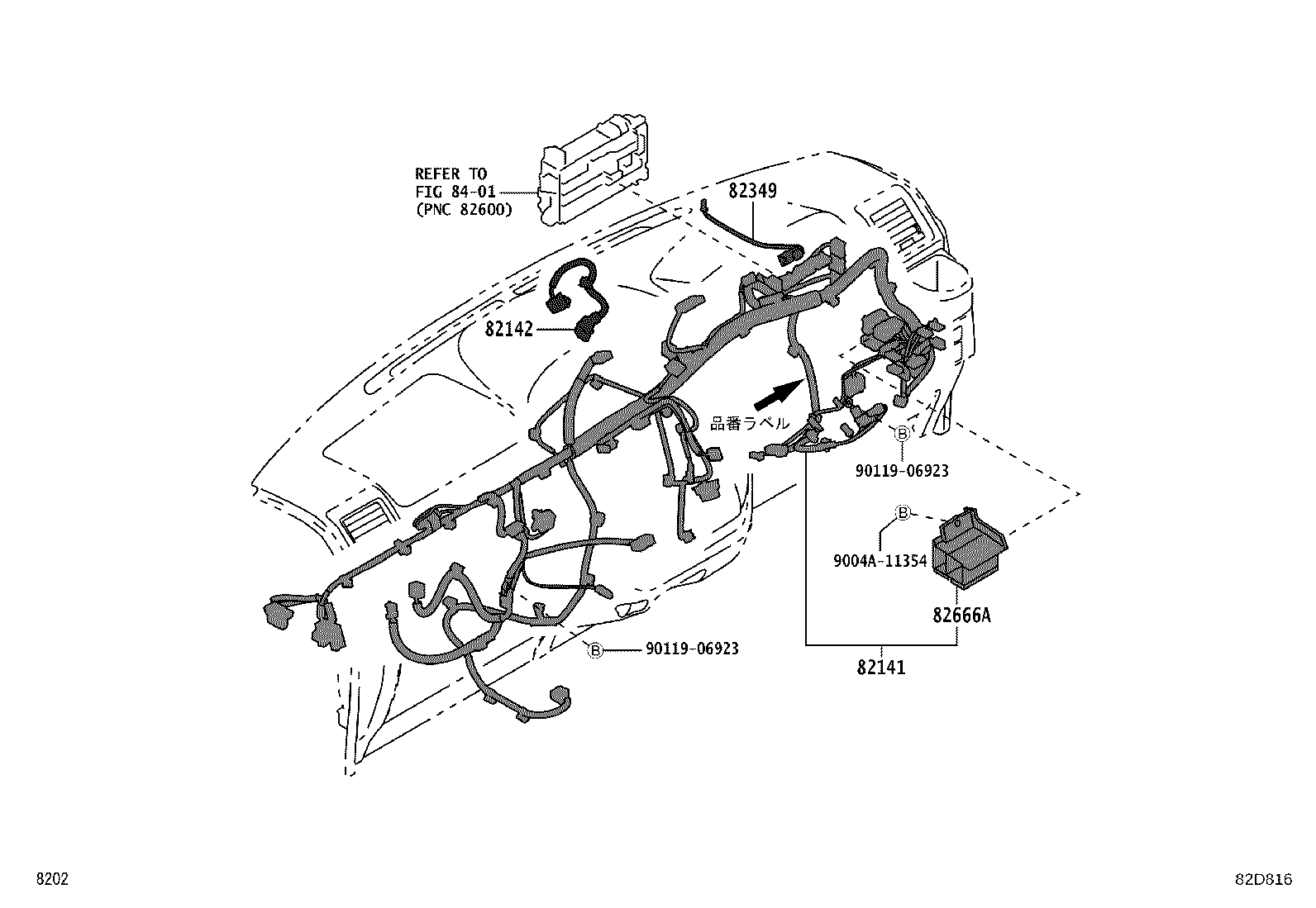

ILLUST NO. 2 OF 6(2007- )

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ

diagram 82141 82142 82349 82666A 8401 9004A11354 9011906923 9011906923
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-BXG00

S413..VAN

品番ﾗﾍﾞﾙ有り

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-BZ020

S403,413

 1
82349 - WIRE, LIGHT CONTROL RHEOSTAT
88605-BZ170

S403,413

 1
82666A - HOLDER, CONNECTOR NO.2
82666-BZ010

S403,413

 1
Common parts
9004A-11354
90119-06923
Linked diagrams
8401

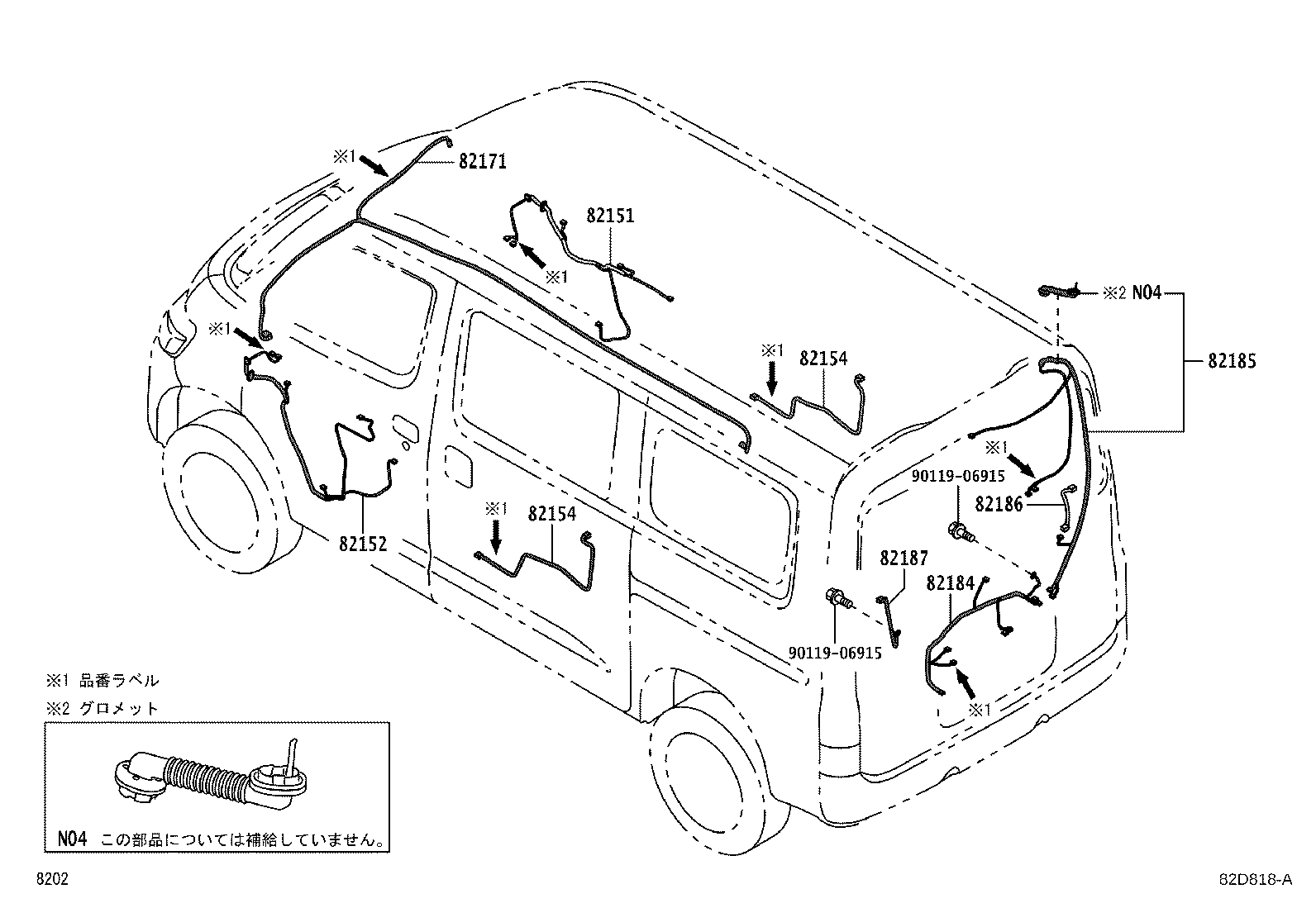

ILLUST NO. 3 OF 6(2007- )VAN

Click highlighted areas on diagram

ﾄﾞｱ&ﾙｰﾌ

diagram 82151 82152 82154 82154 82171 82184 82185 82186 82187 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-BZG00

S403,413..GL

 1
82152 - WIRE, FRONT DOOR, LH
82152-BZJ80

S403,413..GL

 1
82154 - WIRE, REAR DOOR, NO.2
82153-BZ150

S403,413..VAN

 2
82154 - WIRE, REAR DOOR, NO.2
82153-BZ150

S403,413..VAN

 2
82171 - WIRE, ROOF, NO.1
82171-BZA00

S403,413..VAN

 1
82184 - WIRE, BACK DOOR, NO.1
82184-BZ240

S403..GL;S413..VAN

 1
82185 - WIRE, BACK DOOR, NO.2
82185-BZ580

S403..GL;S413..VAN

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-BZ080

S403,413..VAN

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-BZ080

S403,413..VAN

 1
Common parts
90119-06915

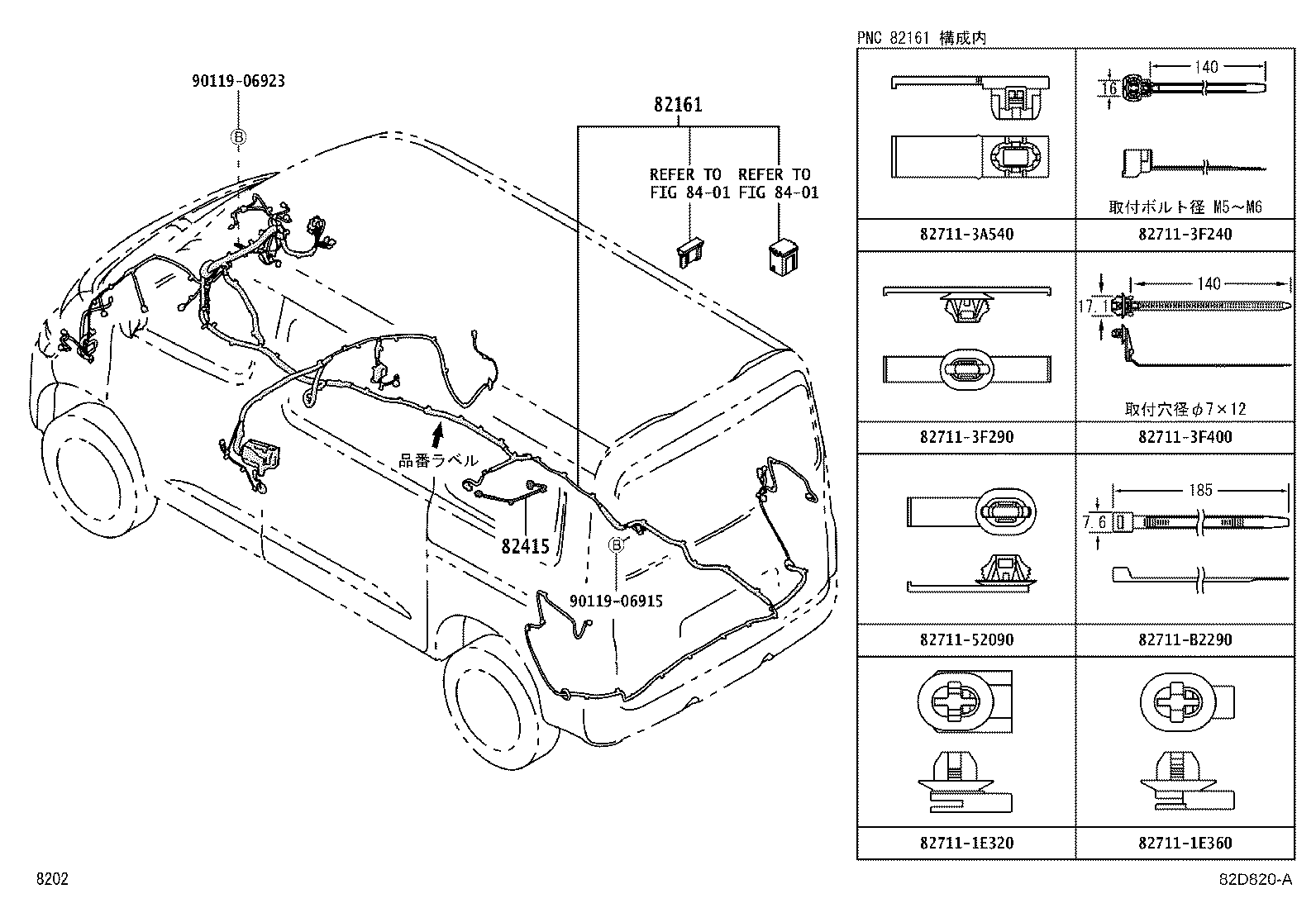

ILLUST NO. 4 OF 6(2007- )VAN

Click highlighted areas on diagram

ﾌﾛｱ

diagram 82161 82415 827111E320 827111E360 827113A540 827113F240 827113F290 827113F400 8271152090 82711B2290 8401 8401 9011906915 9011906923
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-BY480

S413..VAN

品番ﾗﾍﾞﾙ有り

 1
82415 - WIRE, FUEL PUMP
82415-BZ121

S403,413..VAN

 1
Common parts
82711-1E320
82711-1E360
82711-3A540
82711-3F240
82711-3F290
82711-3F400
82711-52090
82711-B2290
90119-06915
90119-06923
Linked diagrams
8401

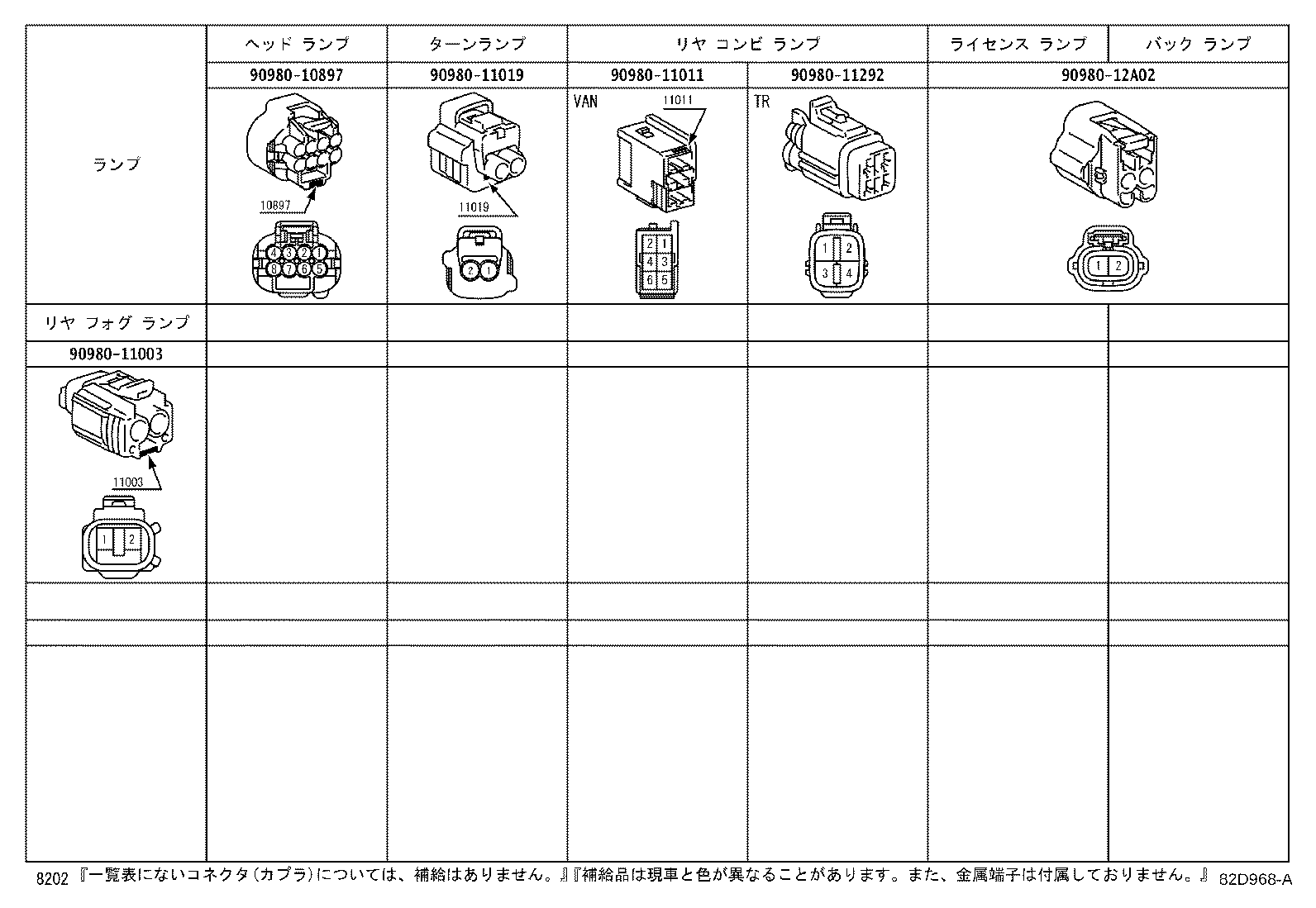

ILLUST NO. 5 OF 6(2007- )

Click highlighted areas on diagram

ｺﾈｸﾀ NO.1

diagram 9098010897 9098011003 9098011011 9098011019 9098011292 9098012A02
Part # Description Qty Price
Common parts
90980-10897
90980-11003
90980-11011
90980-11019
90980-11292
90980-12A02

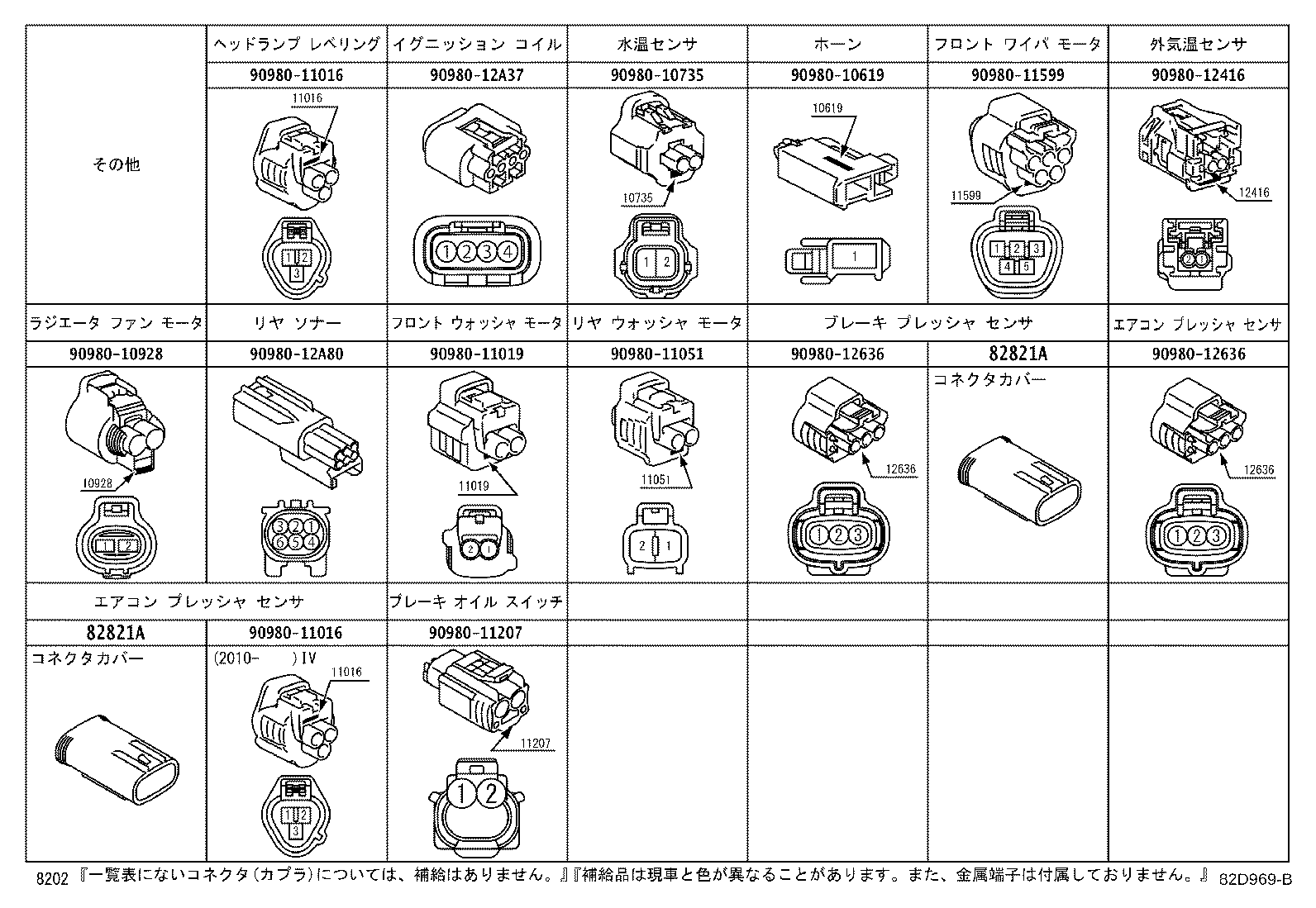

ILLUST NO. 6 OF 6(2007- )

Click highlighted areas on diagram

ｺﾈｸﾀ NO.2

diagram 82821A 82821A 9098010619 9098010735 9098010928 9098011016 9098011016 9098011019 9098011051 9098011207 9098011599 9098012416 9098012636 9098012636 9098012A37 9098012A80
Part # Description Qty Price
82821A - COVER, CONNECTOR
82821-12400

S403,413..VAN

 2
82821A - COVER, CONNECTOR
82821-12400

S403,413..VAN

 2
Common parts
90980-10619
90980-10735
90980-10928
90980-11016
90980-11019
90980-11051
90980-11207
90980-11599
90980-12416
90980-12636
90980-12A37
90980-12A80
